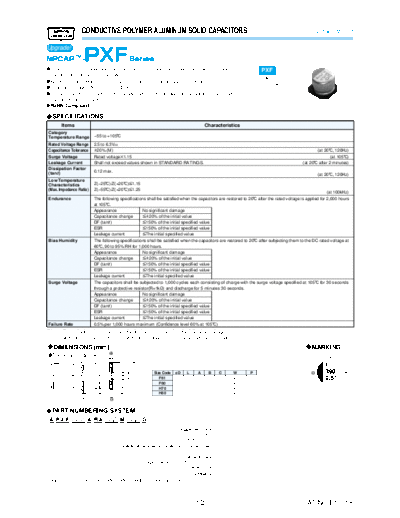

Image preview - the first page of the document
>> Download pxf documenatation <<
Text preview - extract from the document
CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS Surface Mount
Upgrade!
@Super low ESR, impedance and high heat resistance have been obtained by using PXF
conductive polymer as electrolyte.
@Rated voltage range : 2.5 to 6.3Vdc, Capacitance range : 220 to 1,000MF
Lower ESR
@Case size range : F6.3B5.8L to F8B7.7L
@Suitable for DC-DC converters, voltage regulators and decoupling applications used on PXE
computer motherboards etc.
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -55 to +105C
Rated Voltage Range 2.5 to 6.3Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Surge Voltage Rated voltageB1.15 (at 105C)
Leakage Current Shall not exceed values shown in STANDARD RATINGS. (at 20C after 2 minutes)
Dissipation Factor
(tane) 0.12 max.
(at 20C, 120Hz)
Low Temperature
Characteristics Z(-25C)/Z(+20C)[1.15
(Max. Impedance Ratio) Z(-55C)/Z(+20C)[1.25
(at 100kHz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 2,000 hours
at 105C.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Bias Humidity The following specifications shall be satisfied when the capacitors are restored to 20C after subjecting them to the DC rated voltage at
60C, 90 to 95% RH for 1,000 hours.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Surge Voltage The capacitors shall be subjected to 1,000 cycles each consisting of charge with the surge voltage specified at 105C for 30 seconds
through a protective resistor(R=1kO) and discharge for 5 minutes 30 seconds.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Failure Rate 0.5% per 1,000 hours maximum (Confidence level 60% at 105C)
*Note : If any doubt arises, measure the leakage current after the following voltage treatment.
Voltage treatment : DC rated voltage is applied to the capacitors for 120 minutes at 105C.
?DIMENSIONS [mm] ?MARKING
@Terminal Code : A EX) 2.5V390MF
W
F69A
390
FDP0.5
CP0.2
BP0.2
Size Code fD L A B C W P
P
F61 6.3 5.8 6.6 6.6 7.2 0.5 to 0.8 1.9 2.5V
F80 6.3 7.7 6.6 6.6 7.2 0.5 to 0.8 1.9
H70 8 6.7 8.3 8.3 9.0 0.7 to 1.1 3.1
H80 8 7.7 8.3 8.3 9.0 0.7 to 1.1 3.1
0.3max. AP0.2
LP0.3
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
A PX F AAA A RA AAA M AAA G
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 330MF:331, 1,000MF:102)
Taping code
Terminal code
Voltage code (ex. 2.5V:2R5, 6.3V:6R3)
Series code
Category
Please refer to "Product code guide (conductive polymer type)"
(1/2) CAT. No. E1001K
CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS Surface Mount
Upgrade!
?STANDARD RATINGS
WV Cap Size Leakage current ESR Rated ripple current
Part No.
(Vdc) (mF) code (mAmax/after 2min.) (momax/20c, 100k to 300kHz) (mArms/105c, 100kHz)
390 F61 292 10 3,900 APXF2R5ARA391MF61G
470 F80 352 9 4,200 APXF2R5ARA471MF80G
560 F61 700 10 3,900 APXF2R5ARA561MF61G
2.5 560 F80 420 9 4,200 APXF2R5ARA561MF80G
560 H70 420 10 4,500 APXF2R5ARA561MH70G
680 H70 510 10 4,500 APXF2R5ARA681MH70G
1,000 H80 750 9 4,500 APXF2R5ARA102MH80G
330 F61 396 10 3,900 APXF4R0ARA331MF61G
390 F80 468 9 4,200 APXF4R0ARA391MF80G
4 470 H70 564 10 4,500 APXF4R0ARA471MH70G
560 H70 672 10 4,500 APXF4R0ARA561MH70G
680 H80 816 9 4,500 APXF4R0ARA681MH80G
220 F61 415 10 3,900 APXF6R3ARA221MF61G
270 F80 510 9 4,200 APXF6R3ARA271MF80G
330 F61 700 10 3,900 APXF6R3ARA331MF61G
330 F80 623 9 4,200 APXF6R3ARA331MF80G
6.3
330 H70 623 10 4,500 APXF6R3ARA331MH70G
390 H70 737 10 4,500 APXF6R3ARA391MH70G
470 H80 888 9 4,500 APXF6R3ARA471MH80G
560 H80 1,050 9 4,500 APXF6R3ARA561MH80G
(2/2) CAT. No. E1001K
