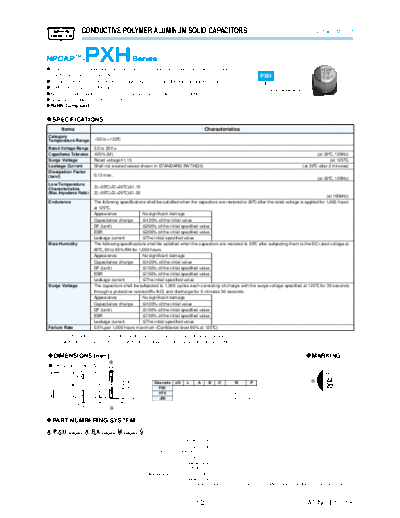

Image preview - the first page of the document
>> Download pxh documenatation <<
Text preview - extract from the document
CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS Surface Mount
@Super low ESR, impedance and high heat resistance have been obtained by using con-
ductive polymer as electrolyte. PXH
@Suitable for DC-DC converters, voltage regulators and decoupling applications.
@Endurance : 125C 1,000 hours
Higher temperature
@Rated voltage range : 2.5 to 20Vdc, Capacitance range : 22 to 1,000MF
@Case size range : F6.3B5.7L to F10B7.7L PXA
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -55 to +125C
Rated Voltage Range 2.5 to 20Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Surge Voltage Rated voltageB1.15 (at 125C)
Leakage Current Shall not exceed values shown in STANDARD RATINGS. (at 20C after 2 minutes)
Dissipation Factor
(tane) 0.12 max.
(at 20C, 120Hz)
Low Temperature
Characteristics Z(-25C)/Z(+20C)[1.15
(Max. Impedance Ratio) Z(-55C)/Z(+20C)[1.25
(at 100kHz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 1,000 hours
at 125C.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [200% of the initial specified value
ESR [200% of the initial specified value
Leakage current [The initial specified value
Bias Humidity The following specifications shall be satisfied when the capacitors are restored to 20C after subjecting them to the DC rated voltage at
60C, 90 to 95% RH for 1,000 hours.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Surge Voltage The capacitors shall be subjected to 1,000 cycles each consisting of charge with the surge voltage specified at 125C for 30 seconds
through a protective resistor(R=1kO) and discharge for 5 minutes 30 seconds.
Appearance No significant damage
Capacitance change [P20% of the initial value
DF (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Failure Rate 0.5% per 1,000 hours maximum (Confidence level 60% at 125C)
*Note : If any doubt arises, measure the leakage current after the following voltage treatment.
Voltage treatment : DC rated voltage is applied to the capacitors for 120 minutes at 125C.
?DIMENSIONS [mm] ?MARKING
@Terminal Code : A EX) 20V22MF
W
H39F
22
FDP0.5
CP0.2
BP0.2
Size code fD L A B C W P
P
F60 6.3 5.7 6.6 6.6 7.2 0.5 to 0.8 1.9 20V
H70 8 6.7 8.3 8.3 9.0 0.7 to 1.1 3.1
J80 10 7.7 10.3 10.3 11.0 0.7 to 1.1 4.5
0.3max. AP0.2
LP0.3
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
A PXH AAA A RA AAA M AAA G
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 22MF:220,100MF:101)
Taping code
Terminal code
Voltage code (ex. 6.3V:6R3,10V:100)
Series code
Category Please refer to "Product code guide (conductive polymer type)"
(1/2) CAT. No. E1001K
CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS Surface Mount
?STANDARD RATINGS
Rated ripple current
Leakage current ESR (mArms/100kHz)
WV(Vdc) Cap(mF) Size code Part No.
(mAmax/after 2min.) (momax/20c, 100k to 300kHz)
-55c to +105c +105c to +125c
220 F60 110 35 2,500 770 APXH2R5ARA221MF60G
2.5 560 H70 280 30 3,100 960 APXH2R5ARA561MH70G
1,000 J80 500 25 3,700 1,100 APXH2R5ARA102MJ80G
150 F60 120 35 2,450 770 APXH4R0ARA151MF60G
4 220 H70 176 30 3,020 960 APXH4R0ARA221MH70G
680 J80 544 25 3,700 1,100 APXH4R0ARA681MJ80G
82 F60 103 40 2,400 720 APXH6R3ARA820MF60G
100 F60 126 40 2,400 720 APXH6R3ARA101MF60G
6.3 150 H70 189 30 3,020 960 APXH6R3ARA151MH70G
220 H70 277 30 3,020 960 APXH6R3ARA221MH70G
470 J80 592 25 3,700 1,100 APXH6R3ARA471MJ80G
56 F60 112 45 2,250 680 APXH100ARA560MF60G
120 H70 240 35 2,800 880 APXH100ARA121MH70G
10
150 H70 300 35 2,800 880 APXH100ARA151MH70G
330 J80 660 30 3,700 1,010 APXH100ARA331MJ80G
39 F60 125 50 2,050 650 APXH160ARA390MF60G
82 H70 262 40 2,700 830 APXH160ARA820MH70G
16
150 J80 480 35 3,020 930 APXH160ARA151MJ80G
180 J80 576 35 3,020 930 APXH160ARA181MJ80G
22 F60 88.0 60 1,650 590 APXH200ARA220MF60G
20 47 H70 188 45 2,000 780 APXH200ARA470MH70G
82 J80 328 45 2,400 820 APXH200ARA820MJ80G
(2/2) CAT. No. E1001K
