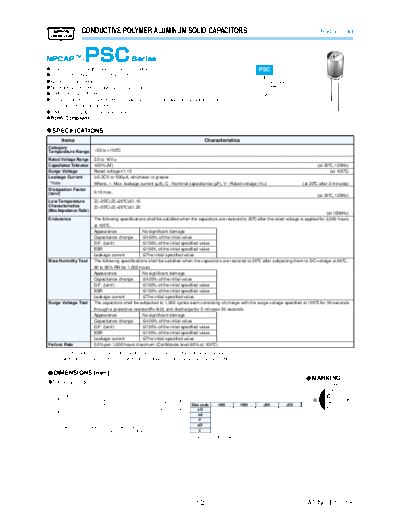

Image preview - the first page of the document
>> Download psc documenatation <<
Text preview - extract from the document
CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS Radial Lead
@Super low ESR, high ripple current capability PSC
@Lower profile than PSA (F8B8L to F10B12.5L)
@Rated voltage range : 2.5 to 16Vdc Low profile
@Nominal capacitance range : 270 to 2,700MF Lower ESR
@Endurance : 2,000 hours at 105C PSA
@Suitable for DC-DC converters, voltage regulators and decoupling applications
for computer motherboards
@Added 2.5V 820MF (ESR 5mO max.)
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -55 to +105C
Rated Voltage Range 2.5 to 16Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Surge Voltage Rated voltageB1.15 (at 105C)
Leakage Current I=0.2CV or 500MA, whichever is greater.
*Note Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (Vdc) (at 20C after 2 minutes)
Dissipation Factor
(tane) 0.10 max.
(at 20C, 120Hz)
Low Temperature Z(-25C)/Z(+20C)[1.15
Characteristics Z(-55C)/Z(+20C)[1.25
(Max.Impedance Ratio)
(at 100kHz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 2,000 hours
at 105C.
Appearance No significant damage
Capacitance change [P20% of the initial value
D.F. (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Bias Humidity Test The following specifications shall be satisfied when the capacitors are restored to 20C after subjecting them to DC voltage at 60C,
90 to 95% RH for 1,000 hours.
Appearance No significant damage
Capacitance change [P20% of the initial value
D.F. (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Surge Voltage Test The capacitors shall be subjected to 1,000 cycles each consisting of charge with the surge voltage specified at 105C for 30 seconds
through a protective resistor(R=1kO) and discharge for 5 minutes 30 seconds.
Appearance No significant damage
Capacitance change [P20% of the initial value
D.F. (tanE) [150% of the initial specified value
ESR [150% of the initial specified value
Leakage current [The initial specified value
Failure Rate 0.5% per 1,000 hours maximum (Confidence level 60% at 105C)
*Note : If any doubt arises, measure the leakage current after the following voltage treatment.
Voltage treatment : DC rated voltage is applied to the capacitors for 120 minutes at 105C.
?DIMENSIONS [mm]
?MARKING
@Terminal Code : E EX) 2.5V820MF
FP0.5
Coated Case
Fd
C 3D6
820
FD'
Size code H08 HB5 JB5 JC5
2.5V
fD 8.0 8.0 10.0 10.0
fd 0.6 0.8 (Note1) 0.8 (Note1) 0.6
F 3.5 3.5 5.0 5.0
fD' FD+0.5max.
L' 15min. 4min. L' L+1.0max. L+1.5max.
Note1 : 0.6 for rated volt 16V.
(1/2) CAT. No. E1001K
CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS Radial Lead
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
A PSC AAA E AA AAA M AAA S
Supplement code (Note2) (Note2) PSC series, 2.5V820MF(ESR 5mO max.)
Size code has supplement code "J".
Capacitance tolerance code Can case, terminal and terminal plating are
Capacitance code (ex. 330MF:331, 1000MF:102)
the same as all others in PSC series.
