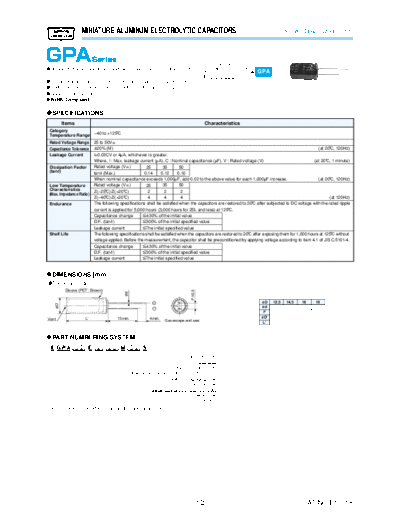

Image preview - the first page of the document
>> Download gpa documenatation <<
Text preview - extract from the document
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Longer life, Downsized, 125C
Downsized
@Downsized, low impedance and high-ripple current version of GXE Higher ripple current
GXE GPA
series
Higher temperature
@For automobile modules and other high temperature applications
LXZ
@Endurance with ripple current : 3,000 to 5,000 hours at 125C
@Solvent resistant type
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +125C
Rated Voltage Range 25 to 50Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.03CV or 4MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C, 1 minute)
Dissipation Factor Rated voltage (Vdc) 25 35 50
(tane) tanE (Max.) 0.14 0.12 0.10
When nominal capacitance exceeds 1,000MF, add 0.02 to the above value for each 1,000MF increase. (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 25 35 50
Characteristics Z(-25C)/Z(+20C) 2 2 2
(Max. Impedance Ratio)
Z(-40C)/Z(+20C) 4 4 4 (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated ripple
current is applied for 5,000 hours (3,000 hours for 25L and less) at 125C.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 125C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve (PET : Brown)
FP0.5
Fd
fD 12.5 14.5 16 18
FD'
fd 0.6 0.8 0.8 0.8
F 5.0 7.5 7.5 7.5
Vent L' 15min. 4min. fD' FD+0.5max.
Gas escape end seal L' L+1.5max.
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E GPA AAA E AA AAA M AAA S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 470MF:471, 1,000MF:102)
