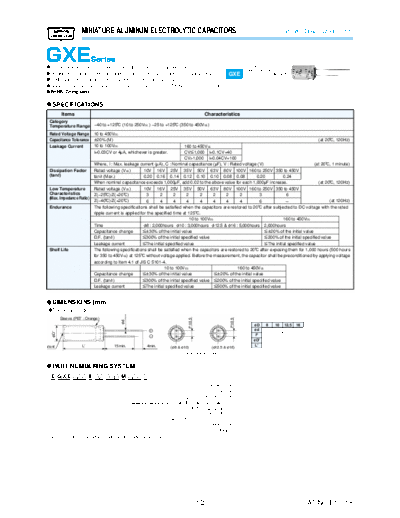

Image preview - the first page of the document
>> Download gxe documenatation <<
Text preview - extract from the document
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Long Life, Downsized, 125C
@For automobile modules and other high temperature applications Downsized
Higher ripple current
@Downsize, long life, low impedance and better low temperature characteristics GXE GPA
@Endurance with ripple current : 2,000 to 5,000 hours at 125C
@Solvent resistant type except 63 to 450V (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +125C (10 to 250Vdc ) -25 to +125C (350 to 450Vdc)
Rated Voltage Range 10 to 450Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current 10 to 100Vdc 160 to 450Vdc
I=0.03CV or 4MA, whichever is greater. CV[1,000 I=0.1CV+40
CV>1,000 I=0.04CV+100
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C, 1 minute)
Dissipation Factor Rated voltage (Vdc) 10V 16V 25V 35V 50V 63V 80V 100V 160 to 250V 350 to 450V
(tane) tanE (Max.) 0.20 0.16 0.14 0.12 0.10 0.10 0.08 0.08 0.20 0.24
When nominal capacitance exceeds 1,000MF, add 0.02 to the above value for each 1,000MF increase. (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 10V 16V 25V 35V 50V 63V 80V 100V 160 to 250V 350 to 450V
Characteristics Z(-25C)/Z(+20C) 3 2 2 2 2 2 2 2 3 6
(Max. Impedance Ratio)
Z(-40C)/Z(+20C) 6 4 4 4 4 4 4 4 6 - (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for the specified time at 125C.
10 to 100Vdc 160 to 450Vdc
Time F8 : 2,000hours F10 : 3,000hours F12.5 & F16 : 5,000hours 2,000hours
Capacitance change [P30% of the initial value [P20% of the initial value
D.F. (tanE) [300% of the initial specified value [200% of the initial specified value
Leakage current [The initial specified value [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours (500 hours
for 350 to 450Vdc) at 125C without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage
according to Item 4.1 of JIS C 5101-4.
10 to 100Vdc 160 to 450Vdc
Capacitance change [P30% of the initial value [P20% of the initial value
D.F. (tanE) [300% of the initial specified value [200% of the initial specified value
Leakage current [The initial specified value [500% of the initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve (PET : Orange)
FP0.5
FP0.5
Fd
fD 8 10 12.5 16
fd 0.6 0.6 0.6 0.8
FD'
F 3.5 5.0 5.0 7.5
fD' FD+0.5max.
Vent L' 15min. 4min. (F8 & F10) (F12.5 & F16)
L' L+2.0max.
Gas escape end seal
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E GXE AAA E AA AAA M AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 4.7MF:4R7,10MF:100,100MF:101)
Lead forming◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
