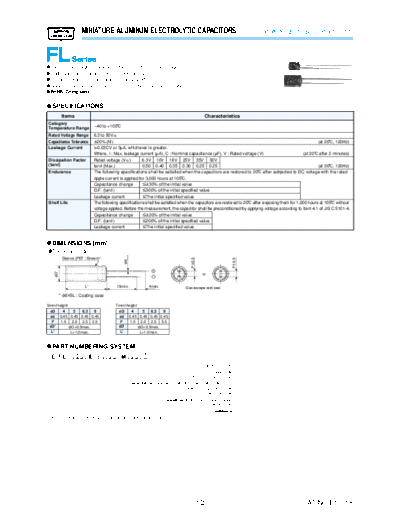

Image preview - the first page of the document
>> Download fl documenatation <<
Text preview - extract from the document
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Long life for F4 to F8 product, 105C
@Long life and high reliability for F4B5L to F8B7L mm range
@Endurance with ripple current : 3,000 hours at 105C
@Suitable for long life and high reliability products
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +105C
Rated Voltage Range 6.3 to 50Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.03CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V
(tane) tanE (Max.) 0.50 0.40 0.35 0.30 0.25 0.25 (at 20C, 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 3,000 hours at 105C.
Capacitance change [P30% of the initial value
D.F. (tanE) [300% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve (PET : Brown)*
FP0.5
FP0.5
Fd
FD'
or
L' 15min. 4min. Gas escape end seal
* F8B5L : Coating case
5mm Height 7mm Height
fD 4 5 6.3 8 fD 4 5 6.3 8
fd 0.45 0.45 0.45 0.45 fd 0.45 0.45 0.45 0.45
F 1.5 2.0 2.5 2.5 F 1.5 2.0 2.5 3.5
fD' FD+0.5max. fD' FD+0.5max.
L' L+1.0max. L' L+1.0max.
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E F L - AAA E AA AAA M AAA D
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 4.7MF:4R7,10MF:100,100MF:101)
