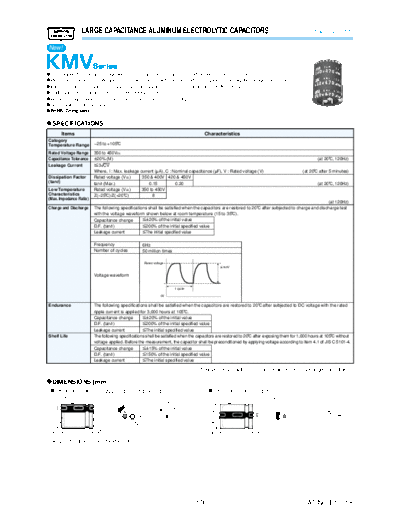

Image preview - the first page of the document
>> Download kmv_snapin documenatation <<
Text preview - extract from the document
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Snap-ins, 105C
New!
@For frequently change of regenerative voltage from AC servo amplifier and inverter control
@Ideal use to power supply, specially power source with turn on and off frequently and highly voltage fluctuation
@Improved the resistance for charge and discharge from same dimension of KMQ series
@Endurance with ripple current : 3,000 hours at 105C
@Rated voltage range : 350 to 450Vdc, Capacitance 82 to 1,200MF
@Non Solvent resistant type
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -25 to +105C
Rated Voltage Range 350 to 450Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I[3 CV
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 5 minutes)
Dissipation Factor Rated voltage (Vdc) 350 & 400V 420 & 450V
(tane) tanE (Max.) 0.15 0.20 (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 350 to 450V
Characteristics Z(-25C)/Z(+20C) 8
(Max. Impedance Ratio)
(at 120Hz)
Charge and Discharge The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to charge and discharge test
with the voltage waveform shown below at room temperature (15 to 35C).
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Frequency 6Hz
Number of cycles 50 million times
Rated voltage
[150V
Voltage waveform
1 cycle
0V
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 3,000 hours at 105C.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P15% of the initial value
D.F. (tanE) [150% of the initial specified value
Leakage current [The initial specified value
*Please consult with us about charge and discharge conditions.
?DIMENSIONS [mm]
@Terminal Code : VS (F22 to F35) : Standard @Terminal Code : LI (F35)
Sleeve (PET : Brown) Negative mark PC board pin-out Sleeve (PET : Brown) Negative mark PC board pin-out
4.2P0.5
2-1.2B6
10
FD+1max.
FD+1max.
5P0.5
2-F2
LP2.5 4.0P0.5 LP2.5 4.5P1 14.2P1
Vent Vent
No plastic disk is the standard design.
(1/3) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Snap-ins, 105C
New!
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E KMV A A A V S N A A A M A A A S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 270MF:271, 1,200MF:122)
Dummy terminal code
Terminal code (VS, LI)
Voltage code (ex. 350V:351, 400V:401)
Series code
Category
Please refer to "Product code guide (snap-in type)"
?STANDARD RATINGS
Rated ripple Max. charge Rated ripple Max. charge
current and current and
WV Cap Case size current WV Cap Case size current
Max.discharge Part No. Max.discharge Part No.
(Vdc) (mF) fDbL(mm) (Arms/ current (Vdc) (mF) fDbL(mm) (Arms/ current
105c,120Hz) (Arms/ 6Hz) 105c,120Hz) (Arms/ 6Hz)
120 22B25 0.74 0.42 EKMV351VSN121MP25S 82 22B25 0.64 0.34 EKMV421VSN820MP25S
150 22B30 0.87 0.49 EKMV351VSN151MP30S 120 22B30 0.81 0.44 EKMV421VSN121MP30S
180 25.4B25 0.92 0.54 EKMV351VSN181MQ25S 120 25.4B25 0.81 0.44 EKMV421VSN121MQ25S
220 22B35 1.08 0.60 EKMV351VSN221MP35S 150 22B35 0.93 0.50 EKMV421VSN151MP35S
220 22B40 1.10 0.62 EKMV351VSN221MP40S 150 25.4B30 0.93 0.50 EKMV421VSN151MQ30S
220 25.4B30 1.05 0.61 EKMV351VSN221MQ30S 180 22B40 1.04 0.56 EKMV421VSN181MP40S
270 22B45 1.24 0.71 EKMV351VSN271MP45S 180 22B45 1.06 0.58 EKMV421VSN181MP45S
270 25.4B35 1.21 0.70 EKMV351VSN271MQ35S 180 25.4B35 1.06 0.58 EKMV421VSN181MQ35S
270 30B25 1.15 0.68 EKMV351VSN271MR25S 180 30B25 1.02 0.56 EKMV421VSN181MR25S
330 22B50 1.41 0.80 EKMV351VSN331MP50S 220 22B50 1.20 0.66 EKMV421VSN221MP50S
330 25.4B40 1.37 0.80 EKMV351VSN331MQ40S 220 25.4B40 1.20 0.65 EKMV421VSN221MQ40S
330 30B30 1.29 0.77 EKMV351VSN331MR30S 220 30B30 1.14 0.63 EKMV421VSN221MR30S
350 330 35B25 1.31 0.78 EKMV351VSN331MA25S 420 270 25.4B45 1.36 0.74 EKMV421VSN271MQ45S
390 25.4B45 1.51 0.89 EKMV351VSN391MQ45S 270 30B35 1.29 0.73 EKMV421VSN271MR35S
390 30B35 1.44 0.88 EKMV351VSN391MR35S 270 35B25 1.26 0.71 EKMV421VSN271MA25S
470 25.4B50 1.69 0.99 EKMV351VSN471MQ50S 330 25.4B50 1.52 0.83 EKMV421VSN331MQ50S
470 30B40 1.62 1.00 EKMV351VSN471MR40S 330 30B40 1.47 0.84 EKMV421VSN331MR40S
470 35B30 1.61 0.97 EKMV351VSN471MA30S 330 35B30 1.42 0.82 EKMV421VSN331MA30S
560 30B45 1.82 1.12 EKMV351VSN561MR45S 390 30B45 1.64 0.94 EKMV421VSN391MR45S
560 35B35 1.77 1.08 EKMV351VSN561MA35S 390 35B35 1.56 0.91 EKMV421VSN391MA35S
680 30B50 2.04 1.27 EKMV351VSN681MR50S 470 30B50 1.83 1.06 EKMV421VSN471MR50S
680 35B40 2.02 1.25 EKMV351VSN681MA40S 470 35B40 1.78 1.05 EKMV421VSN471MA40S
820 35B45 2.27 1.41 EKMV351VSN821MA45S 560 35B45 1.98 1.18 EKMV421VSN561MA45S
820 35B50 2.32 1.46 EKMV351VSN821MA50S 680 35B50 2.23 1.34 EKMV421VSN681MA50S
1,200 35B60 2.88 1.84 EKMV351VSN122MA60S 820 35B60 2.52 1.55 EKMV421VSN821MA60S
100 22B25 0.69 0.38 EKMV401VSN101MP25S 82 22B25 0.64 0.34 EKMV451VSN820MP25S
120 22B30 0.79 0.44 EKMV401VSN121MP30S 100 22B30 0.72 0.40 EKMV451VSN101MP30S
150 25.4B25 0.87 0.49 EKMV401VSN151MQ25S 100 25.4B25 0.72 0.40 EKMV451VSN101MQ25S
180 22B35 0.99 0.55 EKMV401VSN181MP35S 120 22B35 0.81 0.45 EKMV451VSN121MP35S
180 22B40 1.01 0.56 EKMV401VSN181MP40S 150 22B40 0.93 0.51 EKMV451VSN151MP40S
180 25.4B30 0.98 0.55 EKMV401VSN181MQ30S 150 25.4B30 0.91 0.50 EKMV451VSN151MQ30S
220 22B45 1.14 0.64 EKMV401VSN221MP45S 150 30B25 0.90 0.51 EKMV451VSN151MR25S
220 25.4B35 1.13 0.63 EKMV401VSN221MQ35S 180 22B45 1.03 0.58 EKMV451VSN181MP45S
220 30B25 1.10 0.61 EKMV401VSN221MR25S 180 22B50 1.06 0.59 EKMV451VSN181MP50S
270 22B50 1.30 0.73 EKMV401VSN271MP50S 180 25.4B35 1.04 0.57 EKMV451VSN181MQ35S
270 25.4B40 1.28 0.72 EKMV401VSN271MQ40S 220 25.4B40 1.18 0.65 EKMV451VSN221MQ40S
270 30B30 1.22 0.70 EKMV401VSN271MR30S 220 25.4B45 1.20 0.67 EKMV451VSN221MQ45S
400 270 35B25 1.26 0.71 EKMV401VSN271MA25S 450 220 30B30 1.10 0.63 EKMV451VSN221MR30S
330 25.4B45 1.44 0.82 EKMV401VSN331MQ45S 220 35B25 1.12 0.64 EKMV451VSN221MA25S
330 30B35 1.38 0.81 EKMV401VSN331MR35S 270 25.4B50 1.35 0.75 EKMV451VSN271MQ50S
390 25.4B50 1.59 0.91 EKMV401VSN391MQ50S 270 30B35 1.25 0.73 EKMV451VSN271MR35S
390 30B40 1.55 0.91 EKMV401VSN391MR40S 270 35B30 1.27 0.74 EKMV451VSN271MA30S
390 35B30 1.55 0.89 EKMV401VSN391MA30S 330 30B40 1.42 0.84 EKMV451VSN331MR40S
470 30B45 1.74 1.03 EKMV401VSN471MR45S 330 30B45 1.46 0.87 EKMV451VSN331MR45S
470 35B35 1.71 1.00 EKMV401VSN471MA35S 330 35B35 1.41 0.84 EKMV451VSN331MA35S
560 30B50 1.93 1.15 EKMV401VSN561MR50S 390 30B50 1.61 0.97 EKMV451VSN391MR50S
560 35B40 1.94 1.14 EKMV401VSN561MA40S 390 35B40 1.59 0.96 EKMV451VSN391MA40S
680 35B45 2.19 1.29 EKMV401VSN681MA45S 470 35B45 1.79 1.08 EKMV451VSN471MA45S
820 35B50 2.45 1.44 EKMV401VSN821MA50S 560 35B50 2.00 1.22 EKMV451VSN561MA50S
1,000 35B60 2.79 1.70 EKMV401VSN102MA60S 680 35B60 2.26 1.42 EKMV451VSN681MA60S
(2/3) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Snap-ins, 105C
New!
?RATED RIPPLE CURRENT MULTIPLIERS
@Frequency Multipliers
Frequency(Hz) 50 120 300 1k 10k 50k
Coefficient 0.77 1.00 1.16 1.30 1.41 1.43
The endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
(3/3) CAT. No. E1001K
