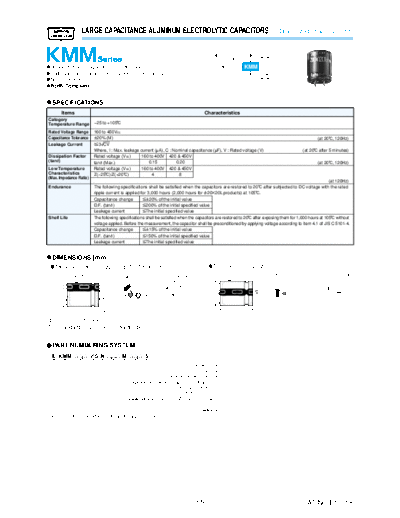

Image preview - the first page of the document
>> Download kmm_snapin documenatation <<
Text preview - extract from the document
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Downsized snap-ins, 105C
LXS LXQ
Longer life Longer life
@Downsized and longer life from KMQ series KMS KMM
@Endurance with ripple current : 2,000 to 3,000 hours at 105C Downsized Downsized
@Non solvent resistant type Longer life
KMQ
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -25 to +105C
Rated Voltage Range 160 to 450Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I[3 CV
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 5 minutes)
Dissipation Factor Rated voltage (Vdc) 160 to 400V 420 & 450V
(tane) tanE (Max.) 0.15 0.20 (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 160 to 400V 420 & 450V
Characteristics Z(-25C)/Z(+20C) 4 8
(Max. Impedance Ratio)
(at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 3,000 hours (2,000 hours for F20B20L products) at 105C.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P15% of the initial value
D.F. (tanE) [150% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : VS (F20 to F35) : Standard @Terminal Code : LI (F35)
Sleeve (PET : Brown) PC board pin-out Sleeve (PET : Brown) Negative mark PC board pin-out
Negative mark
2-1.2B6
4.2P0.5
10
FD+1max.
FD+1max.
5P0.5
2-F2
* LP2 4.5P1 14.2P1
LP2 4.0P0.5 Vent
Vent
*FD=35mm : 3.5P0.5mm
The standard design has no plastic disc.
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E K MM A A A V S N A A A M A A A S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 120MF:121, 1,000MF:102)
Dummy terminal code
Terminal code (VS, LI)
Voltage code (ex. 160V:161, 250V:251, 315V:3B1)
Series code
Category
Please refer to "Product code guide (snap-in type)"
(1/5) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Downsized snap-ins, 105C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
105c,120Hz) 105c,120Hz)
180 20 B 20 0.15 0.68 EKMM161VSN181MN20S 560 20 B 45 0.15 1.55 EKMM181VSN561MN45S
220 20 B 25 0.15 0.85 EKMM161VSN221MN25S 560 22 B 40 0.15 1.67 EKMM181VSN561MP40S
220 22 B 20 0.15 0.81 EKMM161VSN221MP20S 560 25.4 B 30 0.15 1.67 EKMM181VSN561MQ30S
270 20 B 25 0.15 1.10 EKMM161VSN271MN25S 560 30 B 25 0.15 1.67 EKMM181VSN561MR25S
270 25.4 B 20 0.15 0.98 EKMM161VSN271MQ20S 560 35 B 20 0.15 1.43 EKMM181VSN561MA20S
330 20 B 30 0.15 1.20 EKMM161VSN331MN30S 680 20 B 50 0.15 1.75 EKMM181VSN681MN50S
330 22 B 25 0.15 1.20 EKMM161VSN331MP25S 680 22 B 45 0.15 1.78 EKMM181VSN681MP45S
330 25.4 B 20 0.15 1.02 EKMM161VSN331MQ20S 680 25.4 B 35 0.15 1.78 EKMM181VSN681MQ35S
390 20 B 30 0.15 1.30 EKMM161VSN391MN30S 680 30 B 30 0.15 1.78 EKMM181VSN681MR30S
390 22 B 25 0.15 1.30 EKMM161VSN391MP25S 680 35 B 25 0.15 1.83 EKMM181VSN681MA25S
390 25.4 B 25 0.15 1.26 EKMM161VSN391MQ25S 820 22 B 50 0.15 2.04 EKMM181VSN821MP50S
390 30 B 20 0.15 1.25 EKMM161VSN391MR20S 820 25.4 B 40 0.15 2.04 EKMM181VSN821MQ40S
470 20 B 35 0.15 1.34 EKMM161VSN471MN35S 820 30 B 30 0.15 2.04 EKMM181VSN821MR30S
180
470 22 B 30 0.15 1.55 EKMM161VSN471MP30S 820 35 B 25 0.15 2.04 EKMM181VSN821MA25S
470 25.4 B 25 0.15 1.55 EKMM161VSN471MQ25S 1,000 25.4 B 45 0.15 2.30 EKMM181VSN102MQ45S
470 30 B 20 0.15 1.30 EKMM161VSN471MR20S 1,000 30 B 35 0.15 2.30 EKMM181VSN102MR35S
560 20 B 40 0.15 1.50 EKMM161VSN561MN40S 1,000 35 B 30 0.15 2.30 EKMM181VSN102MA30S
560 22 B 35 0.15 1.67 EKMM161VSN561MP35S 1,200 25.4 B 50 0.15 2.55 EKMM181VSN122MQ50S
560 25.4 B 30 0.15 1.67 EKMM161VSN561MQ30S 1,200 30 B 40 0.15 2.55 EKMM181VSN122MR40S
560 30 B 25 0.15 1.67 EKMM161VSN561MR25S 1,200 35 B 30 0.15 2.55 EKMM181VSN122MA30S
560 35 B 20 0.15 1.46 EKMM161VSN561MA20S 1,500 30 B 45 0.15 2.90 EKMM181VSN152MR45S
680 20 B 45 0.15 1.70 EKMM161VSN681MN45S 1,500 35 B 35 0.15 2.90 EKMM181VSN152MA35S
680 22 B 40 0.15 1.82 EKMM161VSN681MP40S 1,800 30 B 60 0.15 3.49 EKMM181VSN182MR60S
160
680 25.4 B 30 0.15 1.82 EKMM161VSN681MQ30S 1,800 35 B 40 0.15 3.30 EKMM181VSN182MA40S
680 30 B 25 0.15 1.82 EKMM161VSN681MR25S 2,200 35 B 50 0.15 3.65 EKMM181VSN222MA50S
680 35 B 20 0.15 1.51 EKMM161VSN681MA20S 2,700 35 B 60 0.15 4.19 EKMM181VSN272MA60S
820 22 B 45 0.15 2.04 EKMM161VSN821MP45S 120 20 B 20 0.15 0.56 EKMM201VSN121MN20S
820 25.4 B 35 0.15 2.04 EKMM161VSN821MQ35S 150 20 B 25 0.15 0.71 EKMM201VSN151MN25S
820 30 B 30 0.15 2.04 EKMM161VSN821MR30S 150 22 B 20 0.15 0.73 EKMM201VSN151MP20S
820 35 B 25 0.15 2.04 EKMM161VSN821MA25S 180 20 B 25 0.15 0.77 EKMM201VSN181MN25S
1,000 22 B 50 0.15 2.25 EKMM161VSN102MP50S 180 22 B 20 0.15 0.80 EKMM201VSN181MP20S
1,000 25.4 B 40 0.15 2.25 EKMM161VSN102MQ40S 220 20 B 25 0.15 1.00 EKMM201VSN221MN25S
1,000 30 B 30 0.15 2.25 EKMM161VSN102MR30S 220 25.4 B 20 0.15 0.85 EKMM201VSN221MQ20S
1,000 35 B 25 0.15 2.25 EKMM161VSN102MA25S 270 20 B 30 0.15 1.10 EKMM201VSN271MN30S
1,200 25.4 B 45 0.15 2.49 EKMM161VSN122MQ45S 270 22 B 25 0.15 1.10 EKMM201VSN271MP25S
1,200 30 B 35 0.15 2.49 EKMM161VSN122MR35S 270 30 B 20 0.15 1.05 EKMM201VSN271MR20S
1,200 35 B 30 0.15 2.49 EKMM161VSN122MA30S 330 20 B 35 0.15 1.20 EKMM201VSN331MN35S
1,500 25.4 B 60 0.15 2.97 EKMM161VSN152MQ60S 330 22 B 30 0.15 1.25 EKMM201VSN331MP30S
1,500 30 B 40 0.15 2.84 EKMM161VSN152MR40S 330 25.4 B 25 0.15 1.25 EKMM201VSN331MQ25S
1,500 35 B 30 0.15 2.84 EKMM161VSN152MA30S 330 30 B 20 0.15 1.10 EKMM201VSN331MR20S
1,800 30 B 45 0.15 3.32 EKMM161VSN182MR45S 390 20 B 40 0.15 1.31 EKMM201VSN391MN40S
1,800 35 B 35 0.15 3.00 EKMM161VSN182MA35S 390 22 B 30 0.15 1.35 EKMM201VSN391MP30S
2,200 30 B 60 0.15 3.86 EKMM161VSN222MR60S 390 25.4 B 25 0.15 1.35 EKMM201VSN391MQ25S
2,200 35 B 45 0.15 3.50 EKMM161VSN222MA45S 390 35 B 20 0.15 1.30 EKMM201VSN391MA20S
2,700 35 B 50 0.15 4.00 EKMM161VSN272MA50S 470 20 B 45 0.15 1.45 EKMM201VSN471MN45S
3,300 35 B 60 0.15 4.63 EKMM161VSN332MA60S 470 22 B 35 0.15 1.50 EKMM201VSN471MP35S
150 20 B 20 0.15 0.62 EKMM181VSN151MN20S 200 470 25.4 B 30 0.15 1.50 EKMM201VSN471MQ30S
180 20 B 25 0.15 0.77 EKMM181VSN181MN25S 470 30 B 25 0.15 1.50 EKMM201VSN471MR25S
180 22 B 20 0.15 0.80 EKMM181VSN181MP20S 470 35 B 20 0.15 1.41 EKMM201VSN471MA20S
220 20 B 25 0.15 1.00 EKMM181VSN221MN25S 560 20 B 50 0.15 1.58 EKMM201VSN561MN50S
220 25.4 B 20 0.15 0.90 EKMM181VSN221MQ20S 560 22 B 40 0.15 1.67 EKMM201VSN561MP40S
270 20 B 30 0.15 1.10 EKMM181VSN271MN30S 560 25.4 B 30 0.15 1.67 EKMM201VSN561MQ30S
270 22 B 25 0.15 1.00 EKMM181VSN271MP25S 560 30 B 25 0.15 1.67 EKMM201VSN561MR25S
270 25.4 B 20 0.15 0.95 EKMM181VSN271MQ20S 680 22 B 45 0.15 1.78 EKMM201VSN681MP45S
330 20 B 30 0.15 1.20 EKMM181VSN331MN30S 680 25.4 B 35 0.15 1.78 EKMM201VSN681MQ35S
330 22 B 25 0.15 1.20 EKMM181VSN331MP25S 680 30 B 30 0.15 1.78 EKMM201VSN681MR30S
180 330 25.4 B 25 0.15 1.16 EKMM181VSN331MQ25S 680 35 B 25 0.15 1.78 EKMM201VSN681MA25S
330 30 B 20 0.15 1.15 EKMM181VSN331MR20S 820 25.4 B 45 0.15 2.04 EKMM201VSN821MQ45S
390 20 B 35 0.15 1.30 EKMM181VSN391MN35S 820 30 B 30 0.15 2.04 EKMM201VSN821MR30S
390 22 B 30 0.15 1.35 EKMM181VSN391MP30S 820 35 B 25 0.15 2.04 EKMM201VSN821MA25S
390 25.4 B 25 0.15 1.35 EKMM181VSN391MQ25S 1,000 25.4 B 50 0.15 2.30 EKMM201VSN102MQ50S
390 30 B 20 0.15 1.20 EKMM181VSN391MR20S 1,000 30 B 35 0.15 2.30 EKMM201VSN102MR35S
470 20 B 40 0.15 1.40 EKMM181VSN471MN40S 1,000 35 B 30 0.15 2.30 EKMM201VSN102MA30S
470 22 B 35 0.15 1.50 EKMM181VSN471MP35S 1,200 25.4 B 60 0.15 2.66 EKMM201VSN122MQ60S
470 25.4 B 30 0.15 1.50 EKMM181VSN471MQ30S 1,200 30 B 40 0.15 2.65 EKMM201VSN122MR40S
470 30 B 25 0.15 1.50 EKMM181VSN471MR25S 1,200 35 B 35 0.15 2.65 EKMM201VSN122MA35S
470 35 B 20 0.15 1.36 EKMM181VSN471MA20S 1,500 30 B 50 0.15 3.08 EKMM201VSN152MR50S
(2/5) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Downsized snap-ins, 105C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
105c,120Hz) 105c,120Hz)
1,500 35 B 40 0.15 3.08 EKMM201VSN152MA40S 330 30 B 25 0.15 1.30 EKMM251VSN331MR25S
1,800 30 B 60 0.15 3.49 EKMM201VSN182MR60S 330 35 B 20 0.15 1.16 EKMM251VSN331MA20S
200
1,800 35 B 45 0.15 3.48 EKMM201VSN182MA45S 390 20 B 50 0.15 1.45 EKMM251VSN391MN50S
2,200 35 B 50 0.15 3.78 EKMM201VSN222MA50S 390 22 B 40 0.15 1.49 EKMM251VSN391MP40S
120 20 B 20 0.15 0.56 EKMM221VSN121MN20S 390 25.4 B 35 0.15 1.49 EKMM251VSN391MQ35S
150 20 B 25 0.15 0.73 EKMM221VSN151MN25S 390 30 B 25 0.15 1.49 EKMM251VSN391MR25S
150 22 B 20 0.15 0.67 EKMM221VSN151MP20S 470 22 B 45 0.15 1.65 EKMM251VSN471MP45S
180 20 B 25 0.15 0.90 EKMM221VSN181MN25S 470 25.4 B 35 0.15 1.65 EKMM251VSN471MQ35S
180 25.4 B 20 0.15 0.76 EKMM221VSN181MQ20S 470 30 B 30 0.15 1.65 EKMM251VSN471MR30S
220 20 B 30 0.15 1.00 EKMM221VSN221MN30S 470 35 B 25 0.15 1.65 EKMM251VSN471MA25S
220 22 B 25 0.15 1.00 EKMM221VSN221MP25S 560 22 B 50 0.15 1.67 EKMM251VSN561MP50S
220 25.4 B 20 0.15 0.84 EKMM221VSN221MQ20S 560 25.4 B 40 0.15 1.80 EKMM251VSN561MQ40S
270 20 B 35 0.15 1.15 EKMM221VSN271MN35S 560 30 B 30 0.15 1.80 EKMM251VSN561MR30S
250
270 22 B 30 0.15 1.15 EKMM221VSN271MP30S 560 35 B 25 0.15 1.80 EKMM251VSN561MA25S
270 25.4 B 25 0.15 1.08 EKMM221VSN271MQ25S 680 25.4 B 50 0.15 2.00 EKMM251VSN681MQ50S
270 30 B 20 0.15 0.98 EKMM221VSN271MR20S 680 30 B 35 0.15 2.00 EKMM251VSN681MR35S
330 20 B 40 0.15 1.25 EKMM221VSN331MN40S 680 35 B 30 0.15 2.00 EKMM251VSN681MA30S
330 22 B 35 0.15 1.25 EKMM221VSN331MP35S 820 25.4 B 60 0.15 2.20 EKMM251VSN821MQ60S
330 25.4 B 25 0.15 1.25 EKMM221VSN331MQ25S 820 30 B 40 0.15 2.30 EKMM251VSN821MR40S
330 35 B 20 0.15 1.13 EKMM221VSN331MA20S 820 35 B 35 0.15 2.30 EKMM251VSN821MA35S
390 20 B 45 0.15 1.40 EKMM221VSN391MN45S 1,000 30 B 50 0.15 2.47 EKMM251VSN102MR50S
390 22 B 35 0.15 1.40 EKMM221VSN391MP35S 1,000 35 B 40 0.15 2.47 EKMM251VSN102MA40S
390 25.4 B 30 0.15 1.40 EKMM221VSN391MQ30S 1,200 30 B 60 0.15 2.85 EKMM251VSN122MR60S
390 30 B 25 0.15 1.36 EKMM221VSN391MR25S 1,200 35 B 45 0.15 2.60 EKMM251VSN122MA45S
390 35 B 20 0.15 1.23 EKMM221VSN391MA20S 1,500 35 B 50 0.15 3.00 EKMM251VSN152MA50S
470 20 B 50 0.15 1.51 EKMM221VSN471MN50S 1,800 35 B 60 0.15 3.42 EKMM251VSN182MA60S
220
470 22 B 40 0.15 1.51 EKMM221VSN471MP40S 56 20 B 20 0.15 0.38 EKMM3B1VSN560MN20S
470 25.4 B 35 0.15 1.54 EKMM221VSN471MQ35S 68 20 B 25 0.15 0.47 EKMM3B1VSN680MN25S
470 30 B 25 0.15 1.50 EKMM221VSN471MR25S 68 22 B 20 0.15 0.45 EKMM3B1VSN680MP20S
560 22 B 45 0.15 1.70 EKMM221VSN561MP45S 82 20 B 25 0.15 0.64 EKMM3B1VSN820MN25S
560 25.4 B 40 0.15 1.72 EKMM221VSN561MQ40S 82 22 B 20 0.15 0.47 EKMM3B1VSN820MP20S
560 30 B 30 0.15 1.70 EKMM221VSN561MR30S 100 20 B 30 0.15 0.69 EKMM3B1VSN101MN30S
560 35 B 25 0.15 1.71 EKMM221VSN561MA25S 100 22 B 25 0.15 0.61 EKMM3B1VSN101MP25S
680 25.4 B 45 0.15 1.94 EKMM221VSN681MQ45S 100 25.4 B 20 0.15 0.56 EKMM3B1VSN101MQ20S
680 30 B 35 0.15 1.93 EKMM221VSN681MR35S 120 20 B 30 0.15 0.75 EKMM3B1VSN121MN30S
680 35 B 25 0.15 1.89 EKMM221VSN681MA25S 120 22 B 25 0.15 0.75 EKMM3B1VSN121MP25S
820 25.4 B 50 0.15 2.18 EKMM221VSN821MQ50S 120 25.4 B 20 0.15 0.62 EKMM3B1VSN121MQ20S
820 30 B 40 0.15 2.19 EKMM221VSN821MR40S 120 30 B 20 0.15 0.65 EKMM3B1VSN121MR20S
820 35 B 30 0.15 2.16 EKMM221VSN821MA30S 150 20 B 35 0.15 0.82 EKMM3B1VSN151MN35S
1,000 25.4 B 60 0.15 2.54 EKMM221VSN102MQ60S 150 22 B 30 0.15 0.82 EKMM3B1VSN151MP30S
1,000 30 B 45 0.15 2.50 EKMM221VSN102MR45S 150 25.4 B 25 0.15 0.82 EKMM3B1VSN151MQ25S
1,000 35 B 35 0.15 2.44 EKMM221VSN102MA35S 150 30 B 20 0.15 0.70 EKMM3B1VSN151MR20S
1,200 30 B 50 0.15 2.81 EKMM221VSN122MR50S 150 35 B 20 0.15 0.76 EKMM3B1VSN151MA20S
1,200 35 B 40 0.15 2.79 EKMM221VSN122MA40S 180 20 B 40 0.15 0.90 EKMM3B1VSN181MN40S
1,500 30 B 60 0.15 3.30 EKMM221VSN152MR60S 180 22 B 35 0.15 0.92 EKMM3B1VSN181MP35S
1,500 35 B 45 0.15 3.22 EKMM221VSN152MA45S 180 25.4 B 25 0.15 0.92 EKMM3B1VSN181MQ25S
1,800 35 B 50 0.15 3.63 EKMM221VSN182MA50S 315 180 30 B 25 0.15 0.90 EKMM3B1VSN181MR25S
2,200 35 B 60 0.15 4.23 EKMM221VSN222MA60S 180 35 B 20 0.15 0.85 EKMM3B1VSN181MA20S
100 20 B 20 0.15 0.51 EKMM251VSN101MN20S 220 20 B 50 0.15 1.00 EKMM3B1VSN221MN50S
120 20 B 25 0.15 0.58 EKMM251VSN121MN25S 220 22 B 40 0.15 1.04 EKMM3B1VSN221MP40S
120 22 B 20 0.15 0.60 EKMM251VSN121MP20S 220 25.4 B 30 0.15 1.04 EKMM3B1VSN221MQ30S
150 20 B 25 0.15 0.79 EKMM251VSN151MN25S 220 30 B 25 0.15 1.04 EKMM3B1VSN221MR25S
150 25.4 B 20 0.15 0.74 EKMM251VSN151MQ20S 220 35 B 20 0.15 0.90 EKMM3B1VSN221MA20S
180 20 B 30 0.15 0.90 EKMM251VSN181MN30S 270 22 B 45 0.15 1.16 EKMM3B1VSN271MP45S
180 22 B 25 0.15 0.78 EKMM251VSN181MP25S 270 25.4 B 35 0.15 1.16 EKMM3B1VSN271MQ35S
180 25.4 B 20 0.15 0.75 EKMM251VSN181MQ20S 270 30 B 25 0.15 1.16 EKMM3B1VSN271MR25S
220 20 B 30 0.15 1.00 EKMM251VSN221MN30S 270 35 B 25 0.15 1.15 EKMM3B1VSN271MA25S
250 220 22 B 25 0.15 1.00 EKMM251VSN221MP25S 330 22 B 50 0.15 1.33 EKMM3B1VSN331MP50S
220 25.4 B 25 0.15 0.95 EKMM251VSN221MQ25S 330 25.4 B 40 0.15 1.33 EKMM3B1VSN331MQ40S
220 30 B 20 0.15 0.95 EKMM251VSN221MR20S 330 30 B 30 0.15 1.33 EKMM3B1VSN331MR30S
270 20 B 35 0.15 1.10 EKMM251VSN271MN35S 330 35 B 25 0.15 1.33 EKMM3B1VSN331MA25S
270 22 B 30 0.15 1.18 EKMM251VSN271MP30S 390 25.4 B 45 0.15 1.47 EKMM3B1VSN391MQ45S
270 25.4 B 25 0.15 1.18 EKMM251VSN271MQ25S 390 30 B 35 0.15 1.47 EKMM3B1VSN391MR35S
270 30 B 20 0.15 1.00 EKMM251VSN271MR20S 390 35 B 30 0.15 1.47 EKMM3B1VSN391MA30S
330 20 B 40 0.15 1.20 EKMM251VSN331MN40S 470 25.4 B 50 0.15 1.70 EKMM3B1VSN471MQ50S
330 22 B 35 0.15 1.30 EKMM251VSN331MP35S 470 30 B 40 0.15 1.70 EKMM3B1VSN471MR40S
330 25.4 B 30 0.15 1.30 EKMM251VSN331MQ30S 470 35 B 30 0.15 1.70 EKMM3B1VSN471MA30S
(3/5) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Downsized snap-ins, 105C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
105c,120Hz) 105c,120Hz)
560 30 B 45 0.15 2.05 EKMM3B1VSN561MR45S 100 30 B 20 0.15 0.60 EKMM401VSN101MR20S
560 35 B 35 0.15 2.05 EKMM3B1VSN561MA35S 120 20 B 40 0.15 0.75 EKMM401VSN121MN40S
680 30 B 50 0.15 2.17 EKMM3B1VSN681MR50S 120 22 B 35 0.15 0.75 EKMM401VSN121MP35S
315
680 35 B 40 0.15 2.17 EKMM3B1VSN681MA40S 120 25.4 B 25 0.15 0.75 EKMM401VSN121MQ25S
820 35 B 45 0.15 2.20 EKMM3B1VSN821MA45S 120 30 B 25 0.15 0.73 EKMM401VSN121MR25S
1,000 35 B 60 0.15 2.55 EKMM3B1VSN102MA60S 120 35 B 20 0.15 0.75 EKMM401VSN121MA20S
47 20 B 20 0.15 0.35 EKMM351VSN470MN20S 150 20 B 45 0.15 0.83 EKMM401VSN151MN45S
56 20 B 25 0.15 0.43 EKMM351VSN560MN25S 150 22 B 40 0.15 0.88 EKMM401VSN151MP40S
56 22 B 20 0.15 0.41 EKMM351VSN560MP20S 150 25.4 B 30 0.15 0.88 EKMM401VSN151MQ30S
68 20 B 25 0.15 0.47 EKMM351VSN680MN25S 150 30 B 25 0.15 0.88 EKMM401VSN151MR25S
68 25.4 B 20 0.15 0.46 EKMM351VSN680MQ20S 150 35 B 20 0.15 0.80 EKMM401VSN151MA20S
82 20 B 30 0.15 0.54 EKMM351VSN820MN30S 180 22 B 45 0.15 0.98 EKMM401VSN181MP45S
82 22 B 25 0.15 0.55 EKMM351VSN820MP25S 180 25.4 B 35 0.15 0.98 EKMM401VSN181MQ35S
82 25.4 B 20 0.15 0.51 EKMM351VSN820MQ20S 180 30 B 30 0.15 0.98 EKMM401VSN181MR30S
100 20 B 30 0.15 0.60 EKMM351VSN101MN30S 180 35 B 25 0.15 0.98 EKMM401VSN181MA25S
100 22 B 25 0.15 0.69 EKMM351VSN101MP25S 220 22 B 50 0.15 1.10 EKMM401VSN221MP50S
100 30 B 20 0.15 0.60 EKMM351VSN101MR20S 400 220 25.4 B 40 0.15 1.10 EKMM401VSN221MQ40S
120 20 B 35 0.15 0.68 EKMM351VSN121MN35S 220 30 B 30 0.15 1.10 EKMM401VSN221MR30S
120 22 B 30 0.15 0.75 EKMM351VSN121MP30S 220 35 B 25 0.15 1.10 EKMM401VSN221MA25S
120 25.4 B 25 0.15 0.75 EKMM351VSN121MQ25S 270 25.4 B 45 0.15 1.22 EKMM401VSN271MQ45S
120 30 B 20 0.15 0.65 EKMM351VSN121MR20S 270 30 B 35 0.15 1.22 EKMM401VSN271MR35S
150 20 B 40 0.15 0.78 EKMM351VSN151MN40S 270 35 B 30 0.15 1.22 EKMM401VSN271MA30S
150 22 B 35 0.15 0.82 EKMM351VSN151MP35S 330 25.4 B 50 0.15 1.44 EKMM401VSN331MQ50S
150 25.4 B 30 0.15 0.83 EKMM351VSN151MQ30S 330 30 B 40 0.15 1.44 EKMM401VSN331MR40S
150 30 B 25 0.15 0.82 EKMM351VSN151MR25S 330 35 B 30 0.15 1.44 EKMM401VSN331MA30S
150 35 B 20 0.15 0.76 EKMM351VSN151MA20S 390 25.4 B 60 0.15 1.51 EKMM401VSN391MQ60S
180 20 B 45 0.15 0.87 EKMM351VSN181MN45S 390 30 B 45 0.15 1.60 EKMM401VSN391MR45S
180 22 B 40 0.15 0.92 EKMM351VSN181MP40S 390 35 B 35 0.15 1.60 EKMM401VSN391MA35S
180 25.4 B 30 0.15 0.92 EKMM351VSN181MQ30S 470 30 B 50 0.15 1.90 EKMM401VSN471MR50S
350 180 30 B 25 0.15 0.90 EKMM351VSN181MR25S 470 35 B 40 0.15 1.90 EKMM401VSN471MA40S
220 20 B 50 0.15 1.00 EKMM351VSN221MN50S 560 30 B 60 0.15 2.10 EKMM401VSN561MR60S
220 22 B 45 0.15 1.05 EKMM351VSN221MP45S 560 35 B 45 0.15 2.12 EKMM401VSN561MA45S
220 25.4 B 35 0.15 1.04 EKMM351VSN221MQ35S 680 35 B 60 0.15 2.27 EKMM401VSN681MA60S
220 30 B 30 0.15 1.02 EKMM351VSN221MR30S 39 20 B 20 0.20 0.32 EKMM421VSN390MN20S
220 35 B 25 0.15 1.04 EKMM351VSN221MA25S 47 20 B 25 0.20 0.39 EKMM421VSN470MN25S
270 22 B 50 0.15 1.16 EKMM351VSN271MP50S 47 22 B 20 0.20 0.37 EKMM421VSN470MP20S
270 25.4 B 40 0.15 1.18 EKMM351VSN271MQ40S 56 20 B 25 0.20 0.51 EKMM421VSN560MN25S
270 30 B 30 0.15 1.17 EKMM351VSN271MR30S 56 25.4 B 20 0.20 0.42 EKMM421VSN560MQ20S
270 35 B 25 0.15 1.20 EKMM351VSN271MA25S 68 20 B 30 0.20 0.56 EKMM421VSN680MN30S
330 25.4 B 45 0.15 1.29 EKMM351VSN331MQ45S 68 22 B 25 0.20 0.50 EKMM421VSN680MP25S
330 30 B 35 0.15 1.34 EKMM351VSN331MR35S 68 25.4 B 20 0.20 0.46 EKMM421VSN680MQ20S
330 35 B 30 0.15 1.22 EKMM351VSN331MA30S 82 20 B 35 0.20 0.64 EKMM421VSN820MN35S
390 25.4 B 50 0.15 1.51 EKMM351VSN391MQ50S 82 22 B 25 0.20 0.64 EKMM421VSN820MP25S
390 30 B 40 0.15 1.51 EKMM351VSN391MR40S 82 25.4 B 25 0.20 0.58 EKMM421VSN820MQ25S
390 35 B 35 0.15 1.47 EKMM351VSN391MA35S 82 30 B 20 0.20 0.53 EKMM421VSN820MR20S
470 25.4 B 60 0.15 1.66 EKMM351VSN471MQ60S 100 20 B 35 0.20 0.70 EKMM421VSN101MN35S
470 30 B 45 0.15 1.65 EKMM351VSN471MR45S 100 22 B 30 0.20 0.70 EKMM421VSN101MP30S
470 35 B 35 0.15 1.69 EKMM351VSN471MA35S 100 25.4 B 25 0.20 0.70 EKMM421VSN101MQ25S
560 30 B 50 0.15 1.85 EKMM351VSN561MR50S 100 30 B 20 0.20 0.59 EKMM421VSN101MR20S
560 35 B 40 0.15 1.90 EKMM351VSN561MA40S 120 20 B 40 0.20 0.75 EKMM421VSN121MN40S
420
680 30 B 60 0.15 2.15 EKMM351VSN681MR60S 120 22 B 35 0.20 0.75 EKMM421VSN121MP35S
680 35 B 50 0.15 1.99 EKMM351VSN681MA50S 120 25.4 B 30 0.20 0.75 EKMM421VSN121MQ30S
820 35 B 60 0.15 2.31 EKMM351VSN821MA60S 120 30 B 25 0.20 0.73 EKMM421VSN121MR25S
39 20 B 20 0.15 0.32 EKMM401VSN390MN20S 120 35 B 20 0.20 0.67 EKMM421VSN121MA20S
47 20 B 25 0.15 0.39 EKMM401VSN470MN25S 150 20 B 50 0.20 0.88 EKMM421VSN151MN50S
47 22 B 20 0.15 0.37 EKMM401VSN470MP20S 150 22 B 40 0.20 0.88 EKMM421VSN151MP40S
56 20 B 25 0.15 0.51 EKMM401VSN560MN25S 150 25.4 B 35 0.20 0.88 EKMM421VSN151MQ35S
56 25.4 B 20 0.15 0.42 EKMM401VSN560MQ20S 150 30 B 25 0.20 0.88 EKMM421VSN151MR25S
68 20 B 30 0.15 0.56 EKMM401VSN680MN30S 180 22 B 45 0.20 0.95 EKMM421VSN181MP45S
68 22 B 25 0.15 0.50 EKMM401VSN680MP25S 180 25.4 B 35 0.20 0.95 EKMM421VSN181MQ35S
400
68 25.4 B 20 0.15 0.46 EKMM401VSN680MQ20S 180 30 B 30 0.20 0.95 EKMM421VSN181MR30S
82 20 B 30 0.15 0.64 EKMM401VSN820MN30S 180 35 B 25 0.20 0.94 EKMM421VSN181MA25S
82 22 B 25 0.15 0.64 EKMM401VSN820MP25S 220 22 B 50 0.20 1.10 EKMM421VSN221MP50S
82 30 B 20 0.15 0.55 EKMM401VSN820MR20S 220 25.4 B 45 0.20 1.10 EKMM421VSN221MQ45S
100 20 B 35 0.15 0.70 EKMM401VSN101MN35S 220 30 B 35 0.20 1.10 EKMM421VSN221MR35S
100 22 B 30 0.15 0.70 EKMM401VSN101MP30S 220 35 B 25 0.20 1.10 EKMM421VSN221MA25S
100 25.4 B 25 0.15 0.70 EKMM401VSN101MQ25S 270 25.4 B 50 0.20 1.22 EKMM421VSN271MQ50S
(4/5) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Downsized snap-ins, 105C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
105c,120Hz) 105c,120Hz)
270 30 B 40 0.20 1.22 EKMM421VSN271MR40S 120 20 B 50 0.20 0.75 EKMM451VSN121MN50S
270 35 B 30 0.20 1.22 EKMM421VSN271MA30S 120 22 B 40 0.20 0.80 EKMM451VSN121MP40S
330 25.4 B 60 0.20 1.41 EKMM421VSN331MQ60S 120 25.4 B 30 0.20 0.80 EKMM451VSN121MQ30S
330 30 B 45 0.20 1.45 EKMM421VSN331MR45S 120 30 B 25 0.20 0.80 EKMM451VSN121MR25S
330 35 B 35 0.20 1.45 EKMM421VSN331MA35S 120 35 B 25 0.20 0.73 EKMM451VSN121MA25S
420 390 30 B 50 0.20 1.55 EKMM421VSN391MR50S 150 22 B 45 0.20 0.88 EKMM451VSN151MP45S
390 35 B 40 0.20 1.55 EKMM421VSN391MA40S 150 25.4 B 35 0.20 0.88 EKMM451VSN151MQ35S
470 30 B 60 0.20 1.79 EKMM421VSN471MR60S 150 30 B 30 0.20 0.88 EKMM451VSN151MR30S
470 35 B 45 0.20 1.90 EKMM421VSN471MA45S 150 35 B 25 0.20 0.75 EKMM451VSN151MA25S
560 35 B 50 0.20 2.15 EKMM421VSN561MA50S 180 22 B 50 0.20 1.00 EKMM451VSN181MP50S
680 35 B 60 0.20 2.27 EKMM421VSN681MA60S 180 25.4 B 40 0.20 1.00 EKMM451VSN181MQ40S
39 20 B 25 0.20 0.34 EKMM451VSN390MN25S 180 30 B 30 0.20 1.00 EKMM451VSN181MR30S
450
47 20 B 25 0.20 0.39 EKMM451VSN470MN25S 220 25.4 B 45 0.20 1.12 EKMM451VSN221MQ45S
56 20 B 30 0.20 0.51 EKMM451VSN560MN30S 220 30 B 35 0.20 1.12 EKMM451VSN221MR35S
56 22 B 25 0.20 0.40 EKMM451VSN560MP25S 220 35 B 30 0.20 1.12 EKMM451VSN221MA30S
68 20 B 35 0.20 0.56 EKMM451VSN680MN35S 270 25.4 B 60 0.20 1.18 EKMM451VSN271MQ60S
68 22 B 30 0.20 0.53 EKMM451VSN680MP30S 270 30 B 40 0.20 1.28 EKMM451VSN271MR40S
68 25.4 B 25 0.20 0.50 EKMM451VSN680MQ25S 270 35 B 35 0.20 1.28 EKMM451VSN271MA35S
450
82 20 B 35 0.20 0.64 EKMM451VSN820MN35S 330 30 B 50 0.20 1.45 EKMM451VSN331MR50S
82 22 B 30 0.20 0.64 EKMM451VSN820MP30S 330 35 B 40 0.20 1.45 EKMM451VSN331MA40S
82 25.4 B 25 0.20 0.64 EKMM451VSN820MQ25S 390 30 B 60 0.20 1.51 EKMM451VSN391MR60S
100 20 B 45 0.20 0.69 EKMM451VSN101MN45S 390 35 B 40 0.20 1.55 EKMM451VSN391MA40S
100 22 B 35 0.20 0.69 EKMM451VSN101MP35S 470 35 B 50 0.20 1.85 EKMM451VSN471MA50S
100 25.4 B 30 0.20 0.69 EKMM451VSN101MQ30S 560 35 B 60 0.20 1.91 EKMM451VSN561MA60S
100 30 B 25 0.20 0.64 EKMM451VSN101MR25S
?RATED RIPPLE CURRENT MULTIPLIERS
@Frequency Multipliers
Frequency (Hz) 50 120 300 1k 10k 50k
160 to 250Vdc 0.81 1.00 1.17 1.32 1.45 1.50
315 to 450Vdc 0.77 1.00 1.16 1.30 1.41 1.43
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
(5/5) CAT. No. E1001K
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
