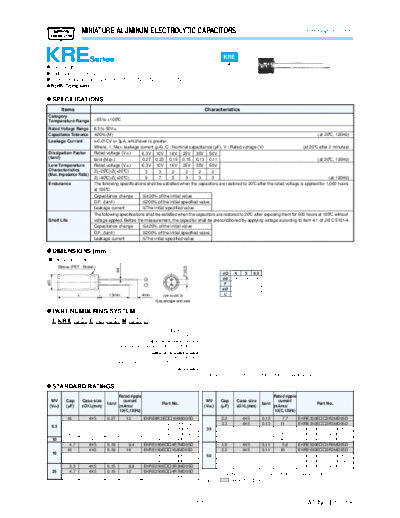

Image preview - the first page of the document



>> Download kre documenatation <<

Text preview - extract from the document

                                   MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS                                                                                                       5mm height, 105C



                                                                                                                                         KRE
@5mm height
                                                                                                                                              105C
@Endurance : 1,000 hours at 105C
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)                                                                                  SRE
@RoHS Compliant

?SPECIFICATIONS
               Items                                                                                                           Characteristics
Category
Temperature Range                           -55 to +105C

Rated Voltage Range                         6.3 to 50Vdc
Capacitance Tolerance                       P20% (M)                                                                                                                  (at 20C, 120Hz)
Leakage Current                             I=0.01CV or 3MA, whichever is greater.
                                            Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)                         (at 20C after 2 minutes)
Dissipation Factor                          Rated voltage (Vdc)        6.3V 10V 16V 25V 35V 50V
(tane)                                      tanE (Max.)                0.27 0.23 0.19 0.15 0.13 0.11                                                                  (at 20C, 120Hz)
Low Temperature                             Rated voltage (Vdc)        6.3V 10V 16V 25V 35V 50V
Characteristics                             Z(-25C)/Z(+20C)              3      3        2     2      2      2
(Max. Impedance Ratio)
                                            Z(-40C)/Z(+20C)              9      7        5     3      3      3                                                               (at 120Hz)
Endurance                                   The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 1,000 hours
                                            at 105C.
                                            Capacitance change         [P20% of the initial value
                                            D.F. (tanE)                [200% of the initial specified value
                                            Leakage current            [The initial specified value
                                            The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C without
Shelf Life                                  voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
                                            Capacitance change         [P20% of the initial value
                                            D.F. (tanE)                [200% of the initial specified value
                                            Leakage current            [The initial specified value


?DIMENSIONS [mm]
@Terminal Code : E
           Sleeve (PET : Brown)
                                                                                                                   FP0.5
                                                                Fd




                                                                                                                                        fD   4     5   6.3
                                                                                                                                        fd 0.45 0.45 0.45
FD'




                                                                                                                                         F  1.5 2.0 2.5
                                                                                                                                        fD'  FD+0.5max.
                              L'                       15min.                               4min.       (F4 to F6.3)                     L'    L+1.0max.
                                                                                                    Gas escape end seal

?PART NUMBERING SYSTEM
      1    2   3    4     5    6    7   8    9   10   11   12   13     14    15   16   17    18

      E KRE AAA E AA AAA M AAA N
                                                                                        Supplement code
                                                                                                Size code
                                                                              Capacitance tolerance code
                                                             Capacitance code (ex. 10MF:100,100MF:101)
                                                                                 Lead forming
