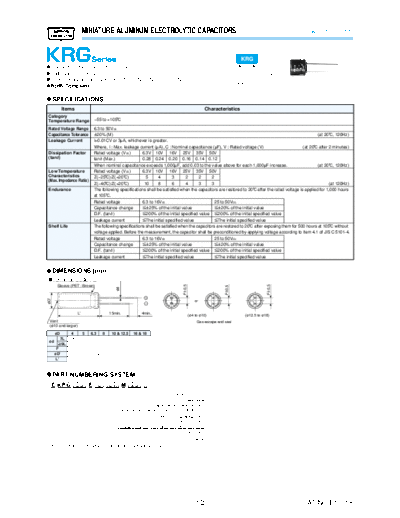

Image preview - the first page of the document
>> Download krg documenatation <<
Text preview - extract from the document
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Low profile, 105C
KRG
@Low profile : F4B7mm to F18B25mm
Downsized
@Endurance : 1,000 hours at 105C Downsized Low profile
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
KMA KMG
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -55 to +105C
Rated Voltage Range 6.3 to 50Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V
(tane) tanE (Max.) 0.28 0.24 0.20 0.16 0.14 0.12
When nominal capacitance exceeds 1,000MF, add 0.03 to the value above for each 1,000MF increase. (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V
Characteristics Z(-25C)/Z(+20C) 5 4 3 2 2 2
(Max. Impedance Ratio)
Z(-40C)/Z(+20C) 10 8 6 4 3 3 (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 1,000 hours
at 105C.
Rated voltage 6.3 to 16Vdc 25 to 50Vdc
Capacitance change [P25% of the initial value [P20% of the initial value
D.F. (tanE) [200% of the initial specified value [200% of the initial specified value
Leakage current [The initial specified value [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Rated voltage 6.3 to 16Vdc 25 to 50Vdc
Capacitance change [P25% of the initial value [P20% of the initial value
D.F. (tanE) [200% of the initial specified value [200% of the initial specified value
Leakage current [The initial specified value [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve (PET : Brown)
FP0.5
FP0.5
FP0.5
Fd
FD'
or
L' 15min. 4min. (F4 to F10) (F12.5 to F18)
Vent Gas escape end seal
(F10 and larger)
fD 4 5 6.3 8 10 & 12.5 16 & 18
7L 0.45 0.45 0.45 - - -
fd
]9L - 0.5 0.5 0.6 0.6 0.8
F 1.5 2.0 2.5 3.5 5.0 7.5
fD' FD+0.5max.
L' L+1.5max. (7L : L+1.0max.)
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E KRG AAA E AA AAA M AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 10MF:100, 1,000MF:102)
