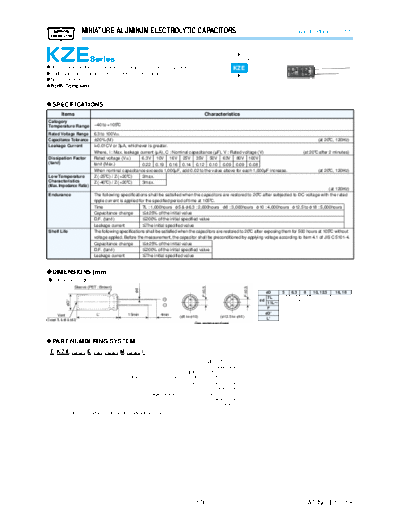

Image preview - the first page of the document
kze


>> Download kze documenatation <<

Text preview - extract from the document
                              MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS                                                                                     Low impedance, 105C

                                                                                                                             KZH

                                                                                                                                 Lower Z

@Ultra Low impedance for Personal Computers Storage Equipment                                                               KZE
@Endurance with ripple current: 1,000 to 5,000 hours at 105C
@Non solvent resistant type                                                                                                      Lower Z
@RoHS Compliant                                                                                                               KY




?SPECIFICATIONS
            Items                                                                                              Characteristics
 Category
 Temperature Range                    -40 to +105C

 Rated Voltage Range                  6.3 to 100Vdc
 Capacitance Tolerance                P20% (M)                                                                                                                            (at 20C, 120Hz)
 Leakage Current                      I=0.01CV or 3MA, whichever is greater.
                                      Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)                                    (at 20C after 2 minutes)
 Dissipation Factor                   Rated voltage (Vdc)      6.3V 10V 16V 25V 35V 50V 63V 80V 100V
 (tane)                               tanE (Max.)              0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.09 0.08
                                      When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase.                                    (at 20C, 120Hz)
 Low Temperature                      Z (-25C) / Z (+20C)      2max.
 Characteristics                      Z (-40C) / Z (+20C)      3max.
 (Max. Impedance Ratio)
                                                                                                                                                                      (at 120Hz)
 Endurance                            The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
                                      ripple current is applied for the specified period of time at 105C.
                                      Time                        7L : 1,000hours F5 & F6.3 : 2,000hours F8 : 3,000hours F10 : 4,000hours F12.5 to F18 : 5,000hours
                                      Capacitance change          [P25% of the initial value
                                      D.F. (tanE)                 [200% of the initial specified value
                                      Leakage current             [The initial specified value
 Shelf Life                           The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C without
                                      voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
                                      Capacitance change          [P25% of the initial value
                                      D.F. (tanE)                 [200% of the initial specified value
                                      Leakage current             [The initial specified value


?DIMENSIONS [mm]
 @Terminal Code : E
                      Sleeve (PET : Brown)
                                                                                                                                   FP0.5
                                                                                                            FP0.5
                                                                             Fd




                                                                                                                                                fD      5   6.3   8    10, 12.5    16, 18
                                                                                                                                                 7L   0.45 0.45 0.45       -          -
                                                                                                                                           fd
                FD'




                                                                                                                                                 11LK 0.5 0.5 0.6         0.6        0.8
                                                                                                                                                 F     2.0 2.5 3.5        5.0        7.5
                                       L'                          15min               4min                                                     fD'               FD+0.5max.
         Vent                                                                                 (F5 to F10)            (F12.5 to F16)
(Except 7L & F5 & F6.3)                                                                                                                          L'         L+1.5max.(7L : L+1.0max.)
                                                                                                      Gas escape end seal




?PART NUMBERING SYSTEM
   1    2   3   4     5   6   7   8   9   10   11   12   13   14   15   16   17   18

  E KZ E AAA E AA AAA M AAA N
                                                                                                          Supplement code
                                                                                                                  Size code
                                                                                                 Capacitance tolerance code
                                                                   Capacitance code (ex. 6.8MF:6R8, 10MF:100, 1,000MF:102)
                                                                                                   Lead forming
