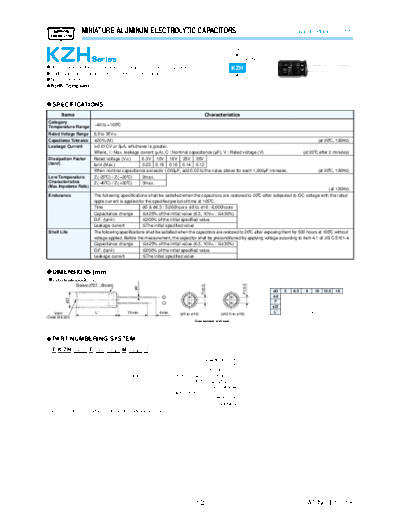

Image preview - the first page of the document
>> Download kzh documenatation <<
Text preview - extract from the document
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Low impedance, 105C
KZM
Longer life
@Ultra Low impedance for Personal Computers Storage Equipment KZH
@Endurance with ripple current: 5,000 to 6,000 hours at 105C
@Non solvent resistant type Lower Z
@RoHS Compliant KZE
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +105C
Rated Voltage Range 6.3 to 35Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V
(tane) tanE (Max.) 0.22 0.19 0.16 0.14 0.12
When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase. (at 20C, 120Hz)
Low Temperature Z (-25C) / Z (+20C) 2max.
Characteristics Z (-40C) / Z (+20C) 3max.
(Max. Impedance Ratio)
(at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for the specified period of time at 105C.
Time F5 & F6.3 : 5,000hours F8 to F16 : 6,000hours
Capacitance change [P25% of the initial value (6.3, 10Vdc : [P30%)
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P25% of the initial value (6.3, 10Vdc : [P30%)
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve (PET : Brown)
FP0.5
FP0.5
Fd
fD 5 6.3 8 10 12.5 16
fd 0.5 0.5 0.6 0.6 0.6 0.8
FD'
F 2.0 2.5 3.5 5.0 5.0 7.5
fD' FD+0.5max.
Vent L' 15min 4min L' L+1.5max.
(F5 to F10) (F12.5 to F18)
(Except F5 & F6.3)
Gas escape end seal
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E KZH AAA E AA AAA M AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 47MF:470, 100MF:101, 1,000MF:102)
