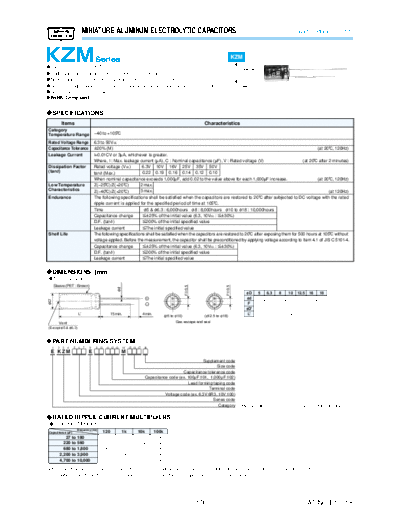

Image preview - the first page of the document
kzm


>> Download kzm documenatation <<

Text preview - extract from the document
                                MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS                                                                                                             Low impedance, 105C



                                                                                                                                                     KZM
@Long-Life version of KZH series                                                                                                                       Longer life
@Endurance with ripple current : 6,000 to 10,000 hours at 105C
                                                                                                                                                     KZH
@Newly innovative electrolyte is employed to minimize ESR
@Rated voltage range : 6.3 to 50Vdc, Nominal capacitance range : 27 to 10,000MF                                                                        Lower Z
@Non solvent resistant type                                                                                                                          KZE
@RoHS Compliant


?SPECIFICATIONS
             Items                                                                                                              Characteristics
 Category
 Temperature Range                      -40 to +105C

 Rated Voltage Range                    6.3 to 50Vdc
 Capacitance Tolerance                  P20% (M)                                                                                                                  (at 20C, 120Hz)
 Leakage Current                        I=0.01CV or 3MA, whichever is greater.
                                        Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)                         (at 20C after 2 minutes)
 Dissipation Factor                     Rated voltage (Vdc)        6.3V 10V 16V 25V 35V 50V
 (tane)                                 tanE (Max.)                0.22 0.19 0.16 0.14 0.12 0.10
                                        When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase.                          (at 20C, 120Hz)
 Low Temperature                        Z(-25C)/Z(+20C)           2 max.
 Characteristics                        Z(-40C)/Z(+20C)           3 max.                                                                                                (at 120Hz)
 Endurance                              The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
                                        ripple current is applied for the specified period of time at 105C.
                                        Time                        F5 & F6.3 : 6,000hours F8 : 8,000hours F10 to F18 : 10,000hours
                                        Capacitance change         [P25% of the initial value (6.3, 10Vdc : [P30%)
                                        D.F. (tanE)                [200% of the initial specified value
                                        Leakage current            [The initial specified value
 Shelf Life                             The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C without
                                        voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
                                        Capacitance change         [P25% of the initial value (6.3, 10Vdc : [P30%)
                                        D.F. (tanE)                [200% of the initial specified value
                                        Leakage current            [The initial specified value


?DIMENSIONS [mm]
 @Terminal Code : E
       Sleeve(PET : Brown)
                                                                                                                                             FP0.5
                                                                                                                    FP0.5
                                                             Fd




                                                                                                                                                             fD       5    6.3    8    10 12.5 16   18
                                                                                                                                                             fd      0.5   0.5   0.6 0.6 0.6 0.8    0.8
FD'




                                                                                                                                                              F      2.0   2.5   3.5 5.0 5.0 7.5    7.5
                                                                                                                                                             fD'                  FD+0.5max.
                           L'                          15min.                          4min.          (F5 to F10)               (F12.5 to F18)
                                                                                                                                                              L'                    L+1.5max.

         Vent                                                                                                Gas escape end seal
(Except F5 & F6.3)



?PART NUMBERING SYSTEM
   1     2    3   4   5    6    7   8    9   10   11   12   13    14    15   16   17   18

  E KZM AAA E AA AAA M AAA N
                                                                                                                      Supplement code
                                                                                                                              Size code
                                                                                                            Capacitance tolerance code
                                                                                        Capacitance code (ex. 100MF:101, 1,000MF:102)
                                                                                                               Lead forming
