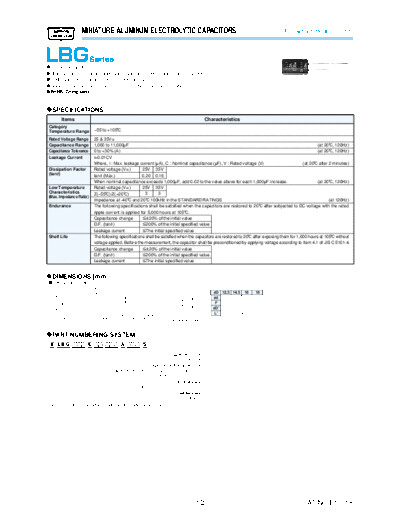

Image preview - the first page of the document



>> Download lbg documenatation <<

Text preview - extract from the document

                           MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS                                                                             For airbag module, 105C




@For airbag application
@High capacitance, low impedance, and good low temperature behavior
@Endurance with ripple current : 5,000 hours at 105C
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant


?SPECIFICATIONS
           Items                                                                                                      Characteristics
 Category
 Temperature Range                  -55 to +105C

 Rated Voltage Range                25 & 35Vdc
 Capacitance Range                  1,000 to 11,000MF                                                                                                          (at 20C, 120Hz)
 Capacitance Tolerance              0 to +30% (A)                                                                                                              (at 20C, 120Hz)
 Leakage Current                    I=0.01CV
                                    Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)                          (at 20C after 2 minutes)
 Dissipation Factor                 Rated voltage (Vdc)        25V 35V
 (tane)                             tanE (Max.)                0.20 0.16
                                    When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase.                           (at 20C, 120Hz)
 Low Temperature                    Rated voltage (Vdc)        25V 35V
 Characteristics                    Z(-55C)/Z(+20C)              3      3
 (Max. Impedance Ratio)
                                    Impedance at -40C and 20C 100kHz in the STANDARD RATINGS                                                                         (at 120Hz)
 Endurance                          The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
                                    ripple current is applied for 5,000 hours at 105C.
                                    Capacitance change         [P20% of the initial value
                                    D.F. (tanE)                [200% of the initial specified value
                                    Leakage current            [The initial specified value
 Shelf Life                         The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
                                    voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
                                    Capacitance change         [P20% of the initial value
                                    D.F. (tanE)                [200% of the initial specified value
                                    Leakage current            [The initial specified value


?DIMENSIONS [mm]
@Terminal Code : E
       Sleeve (PET : Dark blue)
                                                                                                          FP0.5
                                                            Fd




                                                                                                                          fD 12.5 14.5 16    18
                                                                                                                          fd 0.6 0.8 0.8 0.8
 FD'




                                                                                                                           F  5.0 7.5 7.5 7.5
                                                                                                                          fD'     FD+0.5max.
                                                                                                                           L'      L+1.5max.
Vent                       L'                          15min.                        4min.
                                                                                             Gas escape end seal


?PART NUMBERING SYSTEM
  1    2   3   4   5   6   7    8   9   10   11   12   13   14   15   16   17   18

  E L BG AAA E AA AAA A AAA S
                                                                                Supplement code
                                                                                        Size code
                                                                      Capacitance tolerance code
                                                   Capacitance code (ex. 820MF:821, 2,200MF:222)
                                                                         Lead forming
