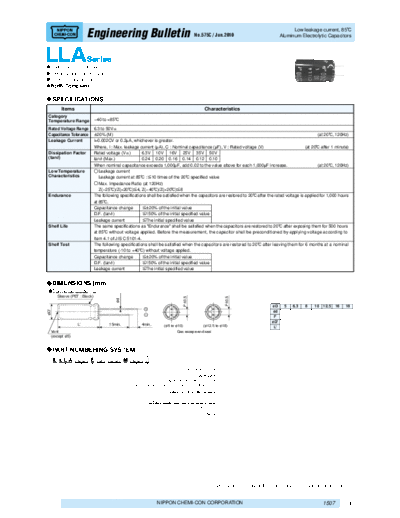

Image preview - the first page of the document
>> Download lla documenatation <<
Text preview - extract from the document
Engineering Bulletin No.575C / Jun.2010
Low leakage current, 85C
Aluminum Electrolytic Capacitors
@Endurance : 1,000 hours at 85C
@Low leakage current type
@Solvent resistant type
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +85C
Rated Voltage Range 6.3 to 50Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.002CV or 0.2MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 1 minute)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V
(tane) tanE (Max.) 0.24 0.20 0.16 0.14 0.12 0.10
When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase. (at 20C, 120Hz)
Low Temperature Leakage current
Characteristics Leakage current at 85C : [10 times of the 20C specified value
Max. Impedance Ratio (at 120Hz)
Z(-25C)/Z(+20C)[4, Z(-40C)/Z(+20C)[8
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 1,000 hours
at 85C.
Capacitance change [P20% of the initial value
D.F. (tanE) [150% of the initial specified value
Leakage current [The initial specified value
Shelf Life The same specifications as "Endurance" shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours
at 85C without voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to
Item 4.1 of JIS C 5101-4.
Shelf Test The following specifications shall be satisfied when the capacitors are restored to 20C after leaving them for 6 months at a nominal
temperature (-10 to +40C) without voltage applied.
Capacitance change [P20% of the initial value
D.F. (tanE) [150% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve (PET : Black)
FP0.5
FP0.5
Fd
fD 5 6.3 8 10 12.5 16 18
FD'
fd 0.5 0.5 0.6 0.6 0.6 0.8 0.8
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
fD' FD+0.5max.
L' 15min. 4min. (F5 to F10) (F12.5 to F18) L' L+1.5max.
Vent Gas escape end seal
(except F5)
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E L LA AAA E AA AAA M AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 0.1MF:R10,100MF:101)
