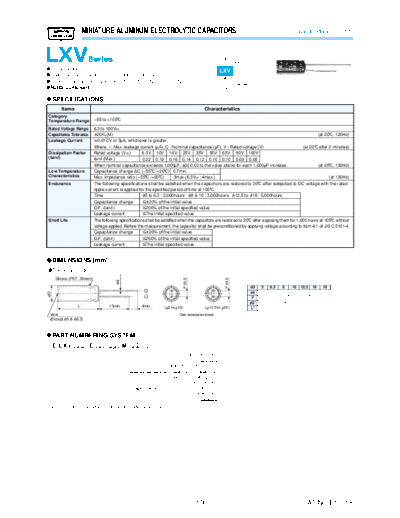

Image preview - the first page of the document
lxv


>> Download lxv documenatation <<

Text preview - extract from the document
                                 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS                                                                                                    Low impedance, 105C


                                                                                                                                 LXY

                                                                                                                                           Lower Z
@Low impedance                                                                                                                  LXV
@Endurance with ripple current : 2,000 to 5,000 hours at 105C
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)                                                                                   Lower Z
                                                                                                                                           Longer life
@RoHS Compliant                                                                                                                  KMG


?SPECIFICATIONS
                Items                                                                                                   Characteristics
Category
Temperature Range                        -55 to +105C

Rated Voltage Range                      6.3 to 100Vdc
Capacitance Tolerance                    P20% (M)                                                                                                                   (at 20C, 120Hz)
Leakage Current                          I=0.01CV or 3MA, whichever is greater.
                                         Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)                          (at 20C after 2 minutes)
Dissipation Factor                       Rated voltage (Vdc)         6.3V 10V 16V 25V 35V 50V 63V 80V 100V
(tane)                                   tanE (Max.)                 0.22 0.19 0.16 0.14 0.12 0.10 0.10 0.09 0.08
                                         When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase.                           (at 20C, 120Hz)
Low Temperature                          Capacitance change DC (-55C /+20C) 0.7min.
Characteristics                          Max. impedance ratio (-55C /+20C)             3max.(6.3Vdc : 4max.)                                                              (at 120Hz)
Endurance                                The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
                                         ripple current is applied for the specified period of time at 105C.
                                         Time                        F5 to 6.3 : 2,000hours F8 & 10 : 3,000hours F12.5 to F18 : 5,000hours
                                         Capacitance change          [P20% of the initial value
                                         D.F. (tanE)                 [200% of the initial specified value
                                         Leakage current             [The initial specified value
Shelf Life                               The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
                                         voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
                                         Capacitance change          [P20% of the initial value
                                         D.F. (tanE)                 [200% of the initial specified value
                                         Leakage current             [The initial specified value


?DIMENSIONS [mm]
@Terminal Code : E
          Sleeve (PET : Brown)
                                                                                                                                   FP0.5
                                                                                                            FP0.5
                                                             Fd




                                                                                                                                                         fD     5    6.3    8    10 12.5   16    18
                                                                                                                                                               0.5   0.5   0.6 0.6 0.6     0.8   0.8
FD'




                                                                                                                                                         fd
                                                                                                                                                          F    2.0   2.5   3.5 5.0 5.0     7.5   7.5
                                                                                                                                                         fD'                FD+0.5max.
                            L'                      15min.                            4min.   (F5 to F10)               (F12.5 to F18)                    L'                  L+1.5max.
 Vent                                                                                                 Gas escape end seal
 (Except F5 & F6.3)



?PART NUMBERING SYSTEM
      1     2   3   4   5    6   7   8    9   10   11   12   13   14   15   16   17    18

      E L XV AAA E AA AAA M AAA N
                                                                                                     Supplement code
                                                                                                             Size code
                                                                                            Capacitance tolerance code
                                                                       Capacitance code (ex. 120MF:121, 1,500MF:152)
                                                                                              Lead forming
