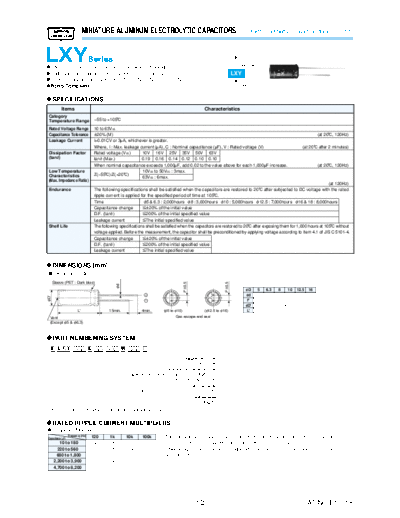

Image preview - the first page of the document
>> Download lxy documenatation <<
Text preview - extract from the document
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS High reliability, Low impedance, 105C
LXZ
Lower Z
Downsized
@Adoption of innovative electrolyte and new technologies
@Endurance with ripple current : 2,000 to 8,000 hours at 105C LXY
@Solvent resistant type (see PRECAUTIONS AND GUIDELINES)
@RoHS Compliant Lower Z
LXV
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -55 to +105C
Rated Voltage Range 10 to 63Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 10V 16V 25V 35V 50V 63V
(tane) tanE (Max.) 0.19 0.16 0.14 0.12 0.10 0.10
When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase. (at 20C, 120Hz)
Low Temperature 10Vdc to 50Vdc : 3max.
Characteristics Z(-55C)/Z(+20C)
63Vdc : 6max.
(Max. Impedance Ratio)
(at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for the specified period of time at 105C.
Time F5 & 6.3 : 2,000hours F8 : 3,000hours F10 : 5,000hours F12.5 : 7,000hours F16 & 18 : 8,000hours
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve (PET : Dark blue)
FP0.5
FP0.5
Fd
fD 5 6.3 8 10 12.5 16
fd 0.5 0.5 0.6 0.6 0.6 0.8
FD'
F 2.0 2.5 3.5 5.0 5.0 7.5
fD' FD+0.5max.
L' 15min. 4min. (F5 to F10) (F12.5 to F16) L' L+1.5max.
Vent Gas escape end seal
(Except F5 & F6.3)
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E L XY AAA E AA AAA M AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 120MF:121, 2,200MF:222)
