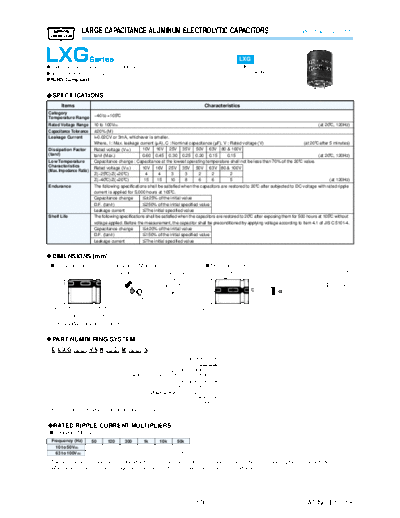

Image preview - the first page of the document
>> Download lxg_snapin documenatation <<
Text preview - extract from the document
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Long life snap-ins, 105C
LXG
@Endurance with ripple current : 5,000 hours at 105C
@Non solvent resistant type Longer life
@RoHS Compliant KMQ
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +105C
Rated Voltage Range 10 to 100Vdc (at 20C, 120Hz)
Capacitance Tolerance P20% (M)
Leakage Current I=0.02CV or 3mA, whichever is smaller.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 5 minutes)
Dissipation Factor Rated voltage (Vdc) 10V 16V 25V 35V 50V 63V 80 & 100V
(tane) tanE (Max.) 0.60 0.45 0.30 0.25 0.20 0.15 0.15 (at 20C, 120Hz)
Low Temperature Capacitance change : Capacitance at the lowest operating temperature shall not be less than 70% of the 20C value.
Characteristics Rated voltage (Vdc) 10V 16V 25V 35V 50V 63V 80 & 100V
(Max. Impedance Ratio)
Z(-25C)/Z(+20C) 4 4 3 3 2 2 2
Z(-40C)/Z(+20C) 15 15 10 8 6 6 5 (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with rated ripple
current is applied for 5,000 hours at 105C.
Capacitance change [P25% of the initial value
D.F. (tanE) [250% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P20% of the initial value
D.F. (tanE) [150% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : VS (F22 to F35) : Standard @Terminal Code : LI (F35)
Sleeve (PET : Brown) Negative mark PC board pin-out Sleeve (PET : Brown) Negative mark PC board pin-out
2-1.2B6
4.2P0.5
10
FD+1max.
FD+1max.
5P0.5
2-F2
*
4.0P0.5 14.2P1
LP2 LP2 4.5P1
Vent Vent
*FD=35mm : 3.5P0.5mm
The standard design has no plastic disc.
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E L XG AAA VS N AAA M AAA S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 390MF:391, 3,300MF:332)
Dummy terminal code
Terminal code (VS, LI)
Voltage code (ex. 10V:100, 100V:101)
Series code
Category
Please refer to "Product code guide (snap-in type)"
?RATED RIPPLE CURRENT MULTIPLIERS
@Frequency Multipliers
Frequency (Hz) 50 120 300 1k 10k 50k
10 to 50Vdc 0.95 1.00 1.03 1.05 1.08 1.08
63 to 100Vdc 0.92 1.00 1.07 1.13 1.19 1.20
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
(1/3) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Long life snap-ins, 105C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
105c,120Hz) 105c,120Hz)
6,800 22 B 25 0.60 1.30 ELXG100VSN682MP25S 5,600 25.4 B 35 0.25 1.98 ELXG350VSN562MQ35S
10,000 22 B 30 0.60 1.65 ELXG100VSN103MP30S 5,600 30 B 30 0.25 1.98 ELXG350VSN562MR30S
10,000 25.4 B 25 0.60 1.64 ELXG100VSN103MQ25S 5,600 35 B 25 0.25 2.03 ELXG350VSN562MA25S
12,000 22 B 35 0.60 1.85 ELXG100VSN123MP35S 6,800 22 B 50 0.25 2.26 ELXG350VSN682MP50S
12,000 25.4 B 30 0.60 1.85 ELXG100VSN123MQ30S 6,800 25.4 B 40 0.25 2.24 ELXG350VSN682MQ40S
12,000 30 B 25 0.60 1.89 ELXG100VSN123MR25S 8,200 25.4 B 50 0.25 2.57 ELXG350VSN822MQ50S
15,000 22 B 40 0.60 2.12 ELXG100VSN153MP40S 35 8,200 30 B 35 0.25 2.50 ELXG350VSN822MR35S
15,000 25.4 B 35 0.60 2.16 ELXG100VSN153MQ35S 8,200 35 B 30 0.25 2.55 ELXG350VSN822MA30S
18,000 22 B 50 0.60 2.45 ELXG100VSN183MP50S 10,000 30 B 40 0.25 2.86 ELXG350VSN103MR40S
18,000 25.4 B 40 0.60 2.43 ELXG100VSN183MQ40S 10,000 35 B 35 0.25 2.88 ELXG350VSN103MA35S
10
18,000 30 B 30 0.60 2.37 ELXG100VSN183MR30S 12,000 30 B 50 0.25 3.32 ELXG350VSN123MR50S
18,000 35 B 25 0.60 2.42 ELXG100VSN183MA25S 12,000 35 B 40 0.25 3.30 ELXG350VSN123MA40S
22,000 30 B 35 0.60 2.73 ELXG100VSN223MR35S 18,000 35 B 50 0.25 4.29 ELXG350VSN183MA50S
22,000 35 B 30 0.60 2.79 ELXG100VSN223MA30S 1,500 22 B 25 0.20 1.02 ELXG500VSN152MP25S
27,000 25.4 B 50 0.60 3.11 ELXG100VSN273MQ50S 1,800 22 B 30 0.20 1.17 ELXG500VSN182MP30S
27,000 30 B 40 0.60 3.13 ELXG100VSN273MR40S 1,800 25.4 B 25 0.20 1.17 ELXG500VSN182MQ25S
33,000 35 B 35 0.60 3.49 ELXG100VSN333MA35S 2,200 22 B 35 0.20 1.33 ELXG500VSN222MP35S
39,000 30 B 50 0.60 3.99 ELXG100VSN393MR50S 2,700 22 B 40 0.20 1.51 ELXG500VSN272MP40S
39,000 35 B 40 0.60 3.96 ELXG100VSN393MA40S 2,700 25.4 B 30 0.20 1.47 ELXG500VSN272MQ30S
47,000 35 B 50 0.60 4.62 ELXG100VSN473MA50S 2,700 30 B 25 0.20 1.50 ELXG500VSN272MR25S
5,600 22 B 25 0.45 1.44 ELXG160VSN562MP25S 3,300 25.4 B 35 0.20 1.70 ELXG500VSN332MQ35S
6,800 22 B 30 0.45 1.66 ELXG160VSN682MP30S 3,300 30 B 30 0.20 1.70 ELXG500VSN332MR30S
6,800 25.4 B 25 0.45 1.66 ELXG160VSN682MQ25S 3,300 35 B 25 0.20 1.74 ELXG500VSN332MA25S
50
8,200 22 B 35 0.45 1.87 ELXG160VSN822MP35S 3,900 22 B 50 0.20 1.91 ELXG500VSN392MP50S
10,000 22 B 40 0.45 2.12 ELXG160VSN103MP40S 3,900 25.4 B 40 0.20 1.89 ELXG500VSN392MQ40S
10,000 25.4 B 30 0.45 2.07 ELXG160VSN103MQ30S 4,700 30 B 35 0.20 2.11 ELXG500VSN472MR35S
10,000 30 B 25 0.45 2.11 ELXG160VSN103MR25S 4,700 35 B 30 0.20 2.16 ELXG500VSN472MA30S
12,000 25.4 B 35 0.45 2.37 ELXG160VSN123MQ35S 5,600 25.4 B 50 0.20 2.38 ELXG500VSN562MQ50S
12,000 30 B 30 0.45 2.37 ELXG160VSN123MR30S 5,600 30 B 40 0.20 2.39 ELXG500VSN562MR40S
12,000 35 B 25 0.45 2.42 ELXG160VSN123MA25S 5,600 35 B 35 0.20 2.41 ELXG500VSN562MA35S
16
15,000 22 B 50 0.45 2.74 ELXG160VSN153MP50S 6,800 30 B 50 0.20 2.79 ELXG500VSN682MR50S
15,000 25.4 B 40 0.45 2.71 ELXG160VSN153MQ40S 6,800 35 B 40 0.20 2.78 ELXG500VSN682MA40S
18,000 25.4 B 50 0.45 3.11 ELXG160VSN183MQ50S 10,000 35 B 50 0.20 3.57 ELXG500VSN103MA50S
18,000 30 B 35 0.45 3.02 ELXG160VSN183MR35S 1,000 22 B 25 0.15 1.00 ELXG630VSN102MP25S
18,000 35 B 30 0.45 3.09 ELXG160VSN183MA30S 1,200 22 B 30 0.15 1.15 ELXG630VSN122MP30S
22,000 30 B 40 0.45 3.46 ELXG160VSN223MR40S 1,200 25.4 B 25 0.15 1.15 ELXG630VSN122MQ25S
22,000 35 B 35 0.45 3.49 ELXG160VSN223MA35S 1,500 22 B 35 0.15 1.32 ELXG630VSN152MP35S
27,000 30 B 50 0.45 4.07 ELXG160VSN273MR50S 1,800 22 B 40 0.15 1.49 ELXG630VSN182MP40S
27,000 35 B 40 0.45 4.04 ELXG160VSN273MA40S 1,800 25.4 B 30 0.15 1.45 ELXG630VSN182MQ30S
39,000 35 B 50 0.45 5.16 ELXG160VSN393MA50S 1,800 30 B 25 0.15 1.48 ELXG630VSN182MR25S
3,900 22 B 25 0.30 1.31 ELXG250VSN392MP25S 2,200 25.4 B 35 0.15 1.67 ELXG630VSN222MQ35S
4,700 22 B 30 0.30 1.51 ELXG250VSN472MP30S 2,200 30 B 30 0.15 1.68 ELXG630VSN222MR30S
4,700 25.4 B 25 0.30 1.51 ELXG250VSN472MQ25S 2,200 35 B 25 0.15 1.71 ELXG630VSN222MA25S
63
5,600 22 B 35 0.30 1.70 ELXG250VSN562MP35S 2,700 22 B 50 0.15 1.92 ELXG630VSN272MP50S
6,800 22 B 40 0.30 1.92 ELXG250VSN682MP40S 2,700 25.4 B 40 0.15 1.90 ELXG630VSN272MQ40S
6,800 25.4 B 30 0.30 1.87 ELXG250VSN682MQ30S 2,700 30 B 35 0.15 1.93 ELXG630VSN272MR35S
6,800 30 B 25 0.30 1.90 ELXG250VSN682MR25S 3,300 25.4 B 50 0.15 2.20 ELXG630VSN332MQ50S
8,200 25.4 B 35 0.30 2.14 ELXG250VSN822MQ35S 3,300 35 B 30 0.15 2.18 ELXG630VSN332MA30S
8,200 30 B 30 0.30 2.15 ELXG250VSN822MR30S 3,900 30 B 40 0.15 2.41 ELXG630VSN392MR40S
8,200 35 B 25 0.30 2.19 ELXG250VSN822MA25S 3,900 35 B 35 0.15 2.43 ELXG630VSN392MA35S
25
10,000 22 B 50 0.30 2.45 ELXG250VSN103MP50S 4,700 30 B 50 0.15 2.80 ELXG630VSN472MR50S
10,000 25.4 B 40 0.30 2.43 ELXG250VSN103MQ40S 4,700 35 B 40 0.15 2.78 ELXG630VSN472MA40S
12,000 25.4 B 50 0.30 2.78 ELXG250VSN123MQ50S 6,800 35 B 50 0.15 3.55 ELXG630VSN682MA50S
12,000 30 B 35 0.30 2.70 ELXG250VSN123MR35S 680 22 B 25 0.15 0.97 ELXG800VSN681MP25S
12,000 35 B 30 0.30 2.76 ELXG250VSN123MA30S 820 22 B 30 0.15 1.12 ELXG800VSN821MP30S
15,000 30 B 40 0.30 3.13 ELXG250VSN153MR40S 1,000 22 B 35 0.15 1.27 ELXG800VSN102MP35S
15,000 35 B 35 0.30 3.16 ELXG250VSN153MA35S 1,000 25.4 B 25 0.15 1.23 ELXG800VSN102MQ25S
18,000 30 B 50 0.30 3.64 ELXG250VSN183MR50S 1,200 22 B 40 0.15 1.42 ELXG800VSN122MP40S
18,000 35 B 40 0.30 3.61 ELXG250VSN183MA40S 1,200 25.4 B 30 0.15 1.39 ELXG800VSN122MQ30S
27,000 35 B 50 0.30 4.70 ELXG250VSN273MA50S 1,200 30 B 25 0.15 1.41 ELXG800VSN122MR25S
80
2,200 22 B 25 0.25 1.10 ELXG350VSN222MP25S 1,500 25.4 B 35 0.15 1.62 ELXG800VSN152MQ35S
3,300 22 B 30 0.25 1.42 ELXG350VSN332MP30S 1,800 22 B 50 0.15 1.84 ELXG800VSN182MP50S
3,300 25.4 B 25 0.25 1.41 ELXG350VSN332MQ25S 1,800 25.4 B 40 0.15 1.82 ELXG800VSN182MQ40S
35 3,900 22 B 35 0.25 1.58 ELXG350VSN392MP35S 1,800 30 B 30 0.15 1.78 ELXG800VSN182MR30S
3,900 25.4 B 30 0.25 1.58 ELXG350VSN392MQ30S 1,800 35 B 25 0.15 1.82 ELXG800VSN182MA25S
4,700 22 B 40 0.25 1.78 ELXG350VSN472MP40S 2,200 25.4 B 50 0.15 2.11 ELXG800VSN222MQ50S
4,700 30 B 25 0.25 1.77 ELXG350VSN472MR25S 2,200 30 B 35 0.15 2.05 ELXG800VSN222MR35S
(2/3) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Long life snap-ins, 105C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
105c,120Hz) 105c,120Hz)
2,200 35 B 30 0.15 2.09 ELXG800VSN222MA30S 1,000 25.4 B 35 0.15 1.41 ELXG101VSN102MQ35S
2,700 30 B 40 0.15 2.35 ELXG800VSN272MR40S 1,000 30 B 30 0.15 1.42 ELXG101VSN102MR30S
2,700 35 B 35 0.15 2.37 ELXG800VSN272MA35S 1,000 35 B 25 0.15 1.45 ELXG101VSN102MA25S
80
3,300 30 B 50 0.15 2.75 ELXG800VSN332MR50S 1,200 22 B 50 0.15 1.60 ELXG101VSN122MP50S
3,300 35 B 40 0.15 2.73 ELXG800VSN332MA40S 1,200 25.4 B 40 0.15 1.59 ELXG101VSN122MQ40S
4,700 35 B 50 0.15 3.46 ELXG800VSN472MA50S 1,200 30 B 35 0.15 1.61 ELXG101VSN122MR35S
390 22 B 25 0.15 0.78 ELXG101VSN391MP25S 100 1,500 25.4 B 50 0.15 1.86 ELXG101VSN152MQ50S
560 22 B 30 0.15 0.99 ELXG101VSN561MP30S 1,500 30 B 40 0.15 1.87 ELXG101VSN152MR40S
560 25.4 B 25 0.15 0.98 ELXG101VSN561MQ25S 1,500 35 B 30 0.15 1.85 ELXG101VSN152MA30S
100 680 22 B 35 0.15 1.12 ELXG101VSN681MP35S 1,800 35 B 35 0.15 2.07 ELXG101VSN182MA35S
820 22 B 40 0.15 1.26 ELXG101VSN821MP40S 2,200 30 B 50 0.15 2.40 ELXG101VSN222MR50S
820 25.4 B 30 0.15 1.23 ELXG101VSN821MQ30S 2,200 35 B 40 0.15 2.39 ELXG101VSN222MA40S
820 30 B 25 0.15 1.25 ELXG101VSN821MR25S 2,700 35 B 50 0.15 2.81 ELXG101VSN272MA50S
?MAXIMUM IMPEDANCE [mo/20c, 30kHz]
Vdc
Case size 10 to 63 80 100
fDbL (mm)
22b25 120 150
22b30 100 120
22b35 80 95
22b40 70 80
22b50 50 60
25.4b25 90 110
25.4b30 70 85
25.4b35 60 70
25.4b40 50 60
25.4b50 40 45
30b25 70 80
30b30 50 60
30b35 40 50
30b40 35 40
30b50 25 30
35b25 65 70
35b30 45 50
35b35 38 40
35b40 30 30
35b50 23 25
(3/3) CAT. No. E1001K
