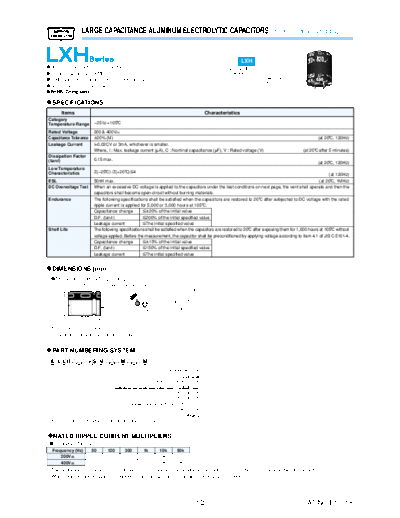

Image preview - the first page of the document
>> Download lxh_snapin documenatation <<
Text preview - extract from the document
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Long life, Overvoltage resistant design, 105C
LXH
@Doesn't spark with DC over voltage Downsized
@Same case sizes of KMH Longer life
@Endurance with ripple current : 5,000 hours at 105C KLG CHA
Downsized
@Non solvent resistant type
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -25 to +105C
Rated Voltage 200 & 400Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.02CV or 3mA, whichever is smaller.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 5 minutes)
Dissipation Factor
(tane) 0.15 max.
(at 20C, 120Hz)
Low Temperature
Characteristics Z(-25C) /Z(+20C)[4
(at 120Hz)
ESL 50nH max. (at 20C, 1MHz)
DC Overvoltage Test When an excessive DC voltage is applied to the capacitors under the test conditions on next page, the vent shall operate and then the
capacitors shall become open-circuit without burning materials.
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 5,000 or 3,000 hours at 105C.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 105C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P15% of the initial value
D.F. (tanE) [150% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : VS (F22 to F35)
Sleeve (Pb-free PVC : Brown) Negative mark
PC board pin-out
FD+1max.
10
* 2-F2
LP2 4.0P0.5
Vent
*FD=35mm : 3.5P0.5mm
The standard design has no plastic disc.
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E L XH AAA VS N AAA M AAA M
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 68MF:680, 1,500MF:152)
Dummy terminal code
Terminal code
Voltage code (ex. 200V:201, 400V:401)
Series code
Category
Please refer to "Product code guide (snap-in type)"
?RATED RIPPLE CURRENT MULTIPLIERS
@Frequency Multipliers
Frequency (Hz) 50 120 300 1k 10k 50k
200Vdc 0.81 1.00 1.17 1.32 1.45 1.50
400Vdc 0.77 1.00 1.16 1.30 1.41 1.43
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
(1/2) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Long life, Overvoltage resistant design, 105C
?STANDARD RATINGS
Rated ripple current
WV Cap Case size (Arms/105c,120Hz)
tane Part No.
(Vdc) (mF) fDbL(mm)
5,000 hours 3,000 hours
270 22 B 25 0.15 0.45 0.87 ELXH201VSN271MP25M
330 22 B 30 0.15 0.62 1.20 ELXH201VSN331MP30M
330 25.4 B 25 0.15 0.62 1.21 ELXH201VSN331MQ25M
390 22 B 35 0.15 0.67 1.31 ELXH201VSN391MP35M
390 25.4 B 30 0.15 0.66 1.28 ELXH201VSN391MQ30M
470 22 B 40 0.15 0.72 1.40 ELXH201VSN471MP40M
470 25.4 B 30 0.15 0.72 1.41 ELXH201VSN471MQ30M
470 30 B 25 0.15 0.77 1.50 ELXH201VSN471MR25M
560 22 B 45 0.15 0.80 1.56 ELXH201VSN561MP45M
560 25.4 B 35 0.15 0.78 1.53 ELXH201VSN561MQ35M
560 30 B 30 0.15 0.81 1.57 ELXH201VSN561MR30M
200 680 22 B 50 0.15 0.89 1.74 ELXH201VSN681MP50M
680 25.4 B 40 0.15 0.89 1.74 ELXH201VSN681MQ40M
680 30 B 30 0.15 0.89 1.74 ELXH201VSN681MR30M
680 35 B 25 0.15 0.88 1.72 ELXH201VSN681MA25M
820 25.4 B 50 0.15 1.05 2.04 ELXH201VSN821MQ50M
820 30 B 35 0.15 1.03 2.00 ELXH201VSN821MR35M
820 35 B 30 0.15 1.05 2.04 ELXH201VSN821MA30M
1,000 30 B 45 0.15 1.18 2.30 ELXH201VSN102MR45M
1,000 35 B 35 0.15 1.18 2.30 ELXH201VSN102MA35M
1,200 30 B 50 0.15 1.33 2.60 ELXH201VSN122MR50M
1,200 35 B 40 0.15 1.36 2.65 ELXH201VSN122MA40M
1,500 35 B 45 0.15 1.57 3.08 ELXH201VSN152MA45M
68 22 B 25 0.15 0.26 0.51 ELXH401VSN680MP25M
68 25.4 B 20 0.15 0.24 0.46 ELXH401VSN680MQ20M
82 22 B 30 0.15 0.30 0.58 ELXH401VSN820MP30M
82 25.4 B 25 0.15 0.30 0.58 ELXH401VSN820MQ25M
100 22 B 35 0.15 0.34 0.66 ELXH401VSN101MP35M
100 25.4 B 30 0.15 0.34 0.66 ELXH401VSN101MQ30M
120 22 B 40 0.15 0.37 0.72 ELXH401VSN121MP40M
120 25.4 B 30 0.15 0.37 0.72 ELXH401VSN121MQ30M
120 30 B 25 0.15 0.39 0.76 ELXH401VSN121MR25M
150 22 B 45 0.15 0.42 0.82 ELXH401VSN151MP45M
150 25.4 B 35 0.15 0.43 0.84 ELXH401VSN151MQ35M
150 30 B 30 0.15 0.43 0.84 ELXH401VSN151MR30M
180 22 B 50 0.15 0.49 0.95 ELXH401VSN181MP50M
400 180 25.4 B 40 0.15 0.48 0.94 ELXH401VSN181MQ40M
180 30 B 30 0.15 0.47 0.92 ELXH401VSN181MR30M
180 35 B 25 0.15 0.48 0.94 ELXH401VSN181MA25M
220 25.4 B 45 0.15 0.55 1.07 ELXH401VSN221MQ45M
220 30 B 35 0.15 0.54 1.06 ELXH401VSN221MR35M
220 35 B 30 0.15 0.55 1.08 ELXH401VSN221MA30M
270 25.4 B 50 0.15 0.62 1.21 ELXH401VSN271MQ50M
270 30 B 40 0.15 0.62 1.21 ELXH401VSN271MR40M
270 35 B 30 0.15 0.59 1.15 ELXH401VSN271MA30M
330 30 B 45 0.15 0.71 1.39 ELXH401VSN331MR45M
330 35 B 35 0.15 0.69 1.35 ELXH401VSN331MA35M
390 30 B 50 0.15 0.80 1.55 ELXH401VSN391MR50M
390 35 B 40 0.15 0.79 1.54 ELXH401VSN391MA40M
470 35 B 45 0.15 0.89 1.74 ELXH401VSN471MA45M
?DC OVERVOLTAGE TEST CONDITIONS
The vent will operate and the capacitor shall become an open circuit without burning materials
when the following test DC voltage is applied.
@Test DC voltage @Test Circuit
Rated Voltage Capacitance Current limit Test DC voltage
<330MF 4A +
200Vdc 330[C<470MF 5A 300/375Vdc AC input SW CX
-
]470MF 7A
<100MF 2A
400Vdc 100[C<220MF 4A 500/600Vdc Constant DC voltage/current power supply
]220MF 7A
(2/2) CAT. No. E1001K
