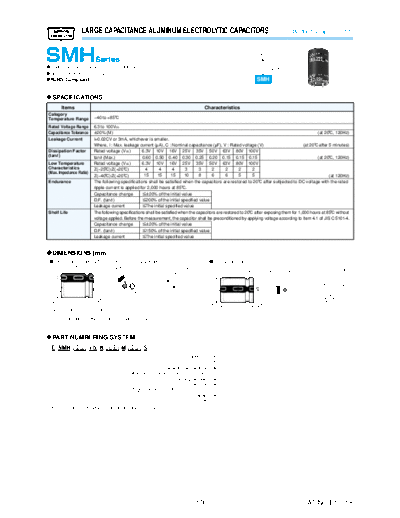

Image preview - the first page of the document
>> Download smh_snapin documenatation <<
Text preview - extract from the document
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Standard snap-ins, 85C
SMM
Downsized
@Endurance with ripple current : 2,000 hours at 85C Longer life
@Non solvent resistant type
@RoHS Compliant SMH
?SPACIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +85C
Rated Voltage Range 6.3 to 100Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.02CV or 3mA, whichever is smaller.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 5 minutes)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V 63V 80V 100V
(tane) tanE (Max.) 0.60 0.50 0.40 0.30 0.25 0.20 0.15 0.15 0.15 (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V 63V 80V 100V
Characteristics Z(-25C)/Z(+20C) 4 4 4 3 3 2 2 2 2
(Max. Impedance Ratio)
Z(-40C)/Z(+20C) 15 15 15 10 8 6 6 5 5 (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 2,000 hours at 85C.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 85C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P20% of the initial value
D.F. (tanE) [150% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : VS (F22 to F35) : Standard @Terminal Code : LI (F35)
Sleeve (PET : Black) Negative mark PC board pin-out
Sleeve (PET : Black) Negative mark PC board pin-out
4.2P0.5
2-1.2B6
10
FD+1max.
FD+1max.
2-F2 5P0.5
*
LP2 4.0P0.5
Vent 14.2P1
Vent LP2 4.5P1
*FD=35mm : 3.5P0.5mm
The standard design has no plastic disc.
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E SMH A A A V S N A A A M A A A S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 820MF:821, 3,300MF:332)
Dummy terminal code
Terminal code
Voltage code (ex. 6.3V:6R3, 63V:630, 100V:101)
Series code
Category
Please refer to "Product code guide (snap-in type)"
(1/3) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Standard snap-ins, 85C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
85c,120Hz) 85c,120Hz)
15,000 22 B 25 0.60 2.44 ESMH6R3VSN153MP25S 27,000 25.4 B 45 0.40 4.72 ESMH160VSN273MQ45S
18,000 22 B 30 0.60 2.67 ESMH6R3VSN183MP30S 27,000 30 B 35 0.40 4.82 ESMH160VSN273MR35S
18,000 25.4 B 25 0.60 2.70 ESMH6R3VSN183MQ25S 27,000 35 B 30 0.40 4.65 ESMH160VSN273MA30S
22,000 22 B 30 0.60 3.06 ESMH6R3VSN223MP30S 33,000 25.4 B 50 0.40 5.33 ESMH160VSN333MQ50S
22,000 25.4 B 25 0.60 3.07 ESMH6R3VSN223MQ25S 33,000 30 B 40 0.40 5.36 ESMH160VSN333MR40S
27,000 22 B 35 0.60 3.49 ESMH6R3VSN273MP35S 33,000 35 B 30 0.40 5.15 ESMH160VSN333MA30S
16
27,000 25.4 B 30 0.60 3.52 ESMH6R3VSN273MQ30S 39,000 30 B 45 0.40 6.01 ESMH160VSN393MR45S
27,000 30 B 25 0.60 3.57 ESMH6R3VSN273MR25S 39,000 35 B 35 0.40 5.95 ESMH160VSN393MA35S
33,000 22 B 40 0.60 3.97 ESMH6R3VSN333MP40S 47,000 30 B 50 0.40 6.79 ESMH160VSN473MR50S
33,000 25.4 B 35 0.60 4.02 ESMH6R3VSN333MQ35S 47,000 35 B 40 0.40 6.76 ESMH160VSN473MA40S
33,000 30 B 25 0.60 3.95 ESMH6R3VSN333MR25S 56,000 35 B 45 0.40 7.62 ESMH160VSN563MA45S
39,000 22 B 50 0.60 4.55 ESMH6R3VSN393MP50S 68,000 35 B 50 0.40 8.63 ESMH160VSN683MA50S
39,000 25.4 B 40 0.60 4.50 ESMH6R3VSN393MQ40S 5,600 22 B 25 0.30 2.21 ESMH250VSN562MP25S
6.3
39,000 30 B 30 0.60 4.45 ESMH6R3VSN393MR30S 6,800 22 B 30 0.30 2.40 ESMH250VSN682MP30S
39,000 35 B 25 0.60 4.51 ESMH6R3VSN393MA25S 6,800 25.4 B 25 0.30 2.56 ESMH250VSN682MQ25S
47,000 25.4 B 45 0.60 5.09 ESMH6R3VSN473MQ45S 8,200 22 B 35 0.30 2.72 ESMH250VSN822MP35S
47,000 30 B 35 0.60 5.06 ESMH6R3VSN473MR35S 8,200 25.4 B 25 0.30 2.80 ESMH250VSN822MQ25S
47,000 35 B 30 0.60 5.01 ESMH6R3VSN473MA30S 10,000 22 B 40 0.30 3.09 ESMH250VSN103MP40S
56,000 25.4 B 50 0.60 5.71 ESMH6R3VSN563MQ50S 10,000 25.4 B 30 0.30 3.12 ESMH250VSN103MQ30S
56,000 30 B 40 0.60 5.70 ESMH6R3VSN563MR40S 10,000 30 B 25 0.30 3.21 ESMH250VSN103MR25S
56,000 35 B 30 0.60 5.77 ESMH6R3VSN563MA30S 12,000 22 B 45 0.30 3.48 ESMH250VSN123MP45S
68,000 30 B 45 0.60 6.48 ESMH6R3VSN683MR45S 12,000 25.4 B 35 0.30 3.43 ESMH250VSN123MQ35S
68,000 35 B 35 0.60 6.42 ESMH6R3VSN683MA35S 12,000 30 B 30 0.30 3.86 ESMH250VSN123MR30S
82,000 30 B 50 0.60 7.32 ESMH6R3VSN823MR50S 12,000 35 B 25 0.30 3.54 ESMH250VSN123MA25S
82,000 35 B 40 0.60 7.29 ESMH6R3VSN823MA40S 15,000 22 B 50 0.30 4.00 ESMH250VSN153MP50S
25
100,000 35 B 45 0.60 8.31 ESMH6R3VSN104MA45S 15,000 25.4 B 40 0.30 3.95 ESMH250VSN153MQ40S
12,000 22 B 25 0.50 2.39 ESMH100VSN123MP25S 15,000 30 B 30 0.30 4.00 ESMH250VSN153MR30S
15,000 22 B 30 0.50 2.76 ESMH100VSN153MP30S 15,000 35 B 25 0.30 3.95 ESMH250VSN153MA25S
15,000 25.4 B 25 0.50 2.77 ESMH100VSN153MQ25S 18,000 25.4 B 45 0.30 4.45 ESMH250VSN183MQ45S
18,000 22 B 35 0.50 3.12 ESMH100VSN183MP35S 18,000 30 B 35 0.30 4.46 ESMH250VSN183MR35S
18,000 25.4 B 25 0.50 3.04 ESMH100VSN183MQ25S 18,000 35 B 30 0.30 4.63 ESMH250VSN183MA30S
22,000 22 B 40 0.50 3.55 ESMH100VSN223MP40S 22,000 25.4 B 50 0.30 5.02 ESMH250VSN223MQ50S
22,000 25.4 B 30 0.50 3.48 ESMH100VSN223MQ30S 22,000 30 B 45 0.30 5.21 ESMH250VSN223MR45S
22,000 30 B 25 0.50 3.53 ESMH100VSN223MR25S 22,000 35 B 35 0.30 5.16 ESMH250VSN223MA35S
27,000 22 B 45 0.50 4.04 ESMH100VSN273MP45S 27,000 30 B 50 0.30 5.94 ESMH250VSN273MR50S
27,000 25.4 B 35 0.50 3.98 ESMH100VSN273MQ35S 27,000 35 B 40 0.30 5.92 ESMH250VSN273MA40S
27,000 30 B 30 0.50 3.73 ESMH100VSN273MR30S 33,000 35 B 45 0.30 6.75 ESMH250VSN333MA45S
27,000 35 B 25 0.50 3.73 ESMH100VSN273MA25S 39,000 35 B 50 0.30 7.56 ESMH250VSN393MA50S
33,000 22 B 50 0.50 4.58 ESMH100VSN333MP50S 3,900 22 B 25 0.25 2.22 ESMH350VSN392MP25S
10 33,000 25.4 B 40 0.50 4.54 ESMH100VSN333MQ40S 4,700 22 B 30 0.25 2.41 ESMH350VSN472MP30S
33,000 30 B 30 0.50 4.13 ESMH100VSN333MR30S 4,700 25.4 B 25 0.25 2.42 ESMH350VSN472MQ25S
33,000 35 B 25 0.50 4.13 ESMH100VSN333MA25S 5,600 22 B 35 0.25 2.75 ESMH350VSN562MP35S
39,000 25.4 B 45 0.50 5.08 ESMH100VSN393MQ45S 5,600 25.4 B 25 0.25 2.64 ESMH350VSN562MQ25S
39,000 30 B 35 0.50 5.05 ESMH100VSN393MR35S 6,800 22 B 40 0.25 2.80 ESMH350VSN682MP40S
39,000 35 B 30 0.50 4.80 ESMH100VSN393MA30S 6,800 25.4 B 30 0.25 2.74 ESMH350VSN682MQ30S
47,000 25.4 B 50 0.50 5.73 ESMH100VSN473MQ50S 6,800 30 B 25 0.25 2.97 ESMH350VSN682MR25S
47,000 30 B 40 0.50 5.72 ESMH100VSN473MR40S 8,200 22 B 45 0.25 3.47 ESMH350VSN822MP45S
47,000 35 B 30 0.50 5.27 ESMH100VSN473MA30S 8,200 25.4 B 35 0.25 3.10 ESMH350VSN822MQ35S
56,000 30 B 45 0.50 6.44 ESMH100VSN563MR45S 8,200 30 B 30 0.25 3.13 ESMH350VSN822MR30S
56,000 35 B 35 0.50 6.38 ESMH100VSN563MA35S 8,200 35 B 25 0.25 2.73 ESMH350VSN822MA25S
68,000 30 B 50 0.50 7.27 ESMH100VSN683MR50S 10,000 22 B 50 0.25 3.57 ESMH350VSN103MP50S
68,000 35 B 40 0.50 7.27 ESMH100VSN683MA40S 35 10,000 25.4 B 40 0.25 3.53 ESMH350VSN103MQ40S
82,000 35 B 50 0.50 8.49 ESMH100VSN823MA50S 10,000 30 B 30 0.25 3.46 ESMH350VSN103MR30S
8,200 22 B 25 0.40 2.51 ESMH160VSN822MP25S 10,000 35 B 25 0.25 3.02 ESMH350VSN103MA25S
10,000 22 B 25 0.40 2.77 ESMH160VSN103MP25S 12,000 25.4 B 45 0.25 3.98 ESMH350VSN123MQ45S
12,000 22 B 30 0.40 2.86 ESMH160VSN123MP30S 12,000 30 B 35 0.25 4.01 ESMH350VSN123MR35S
12,000 25.4 B 25 0.40 2.95 ESMH160VSN123MQ25S 12,000 35 B 30 0.25 4.42 ESMH350VSN123MA30S
15,000 22 B 35 0.40 3.29 ESMH160VSN153MP35S 15,000 25.4 B 50 0.25 4.54 ESMH350VSN153MQ50S
15,000 25.4 B 30 0.40 3.46 ESMH160VSN153MQ30S 15,000 30 B 40 0.25 4.52 ESMH350VSN153MR40S
15,000 30 B 25 0.40 3.66 ESMH160VSN153MR25S 15,000 35 B 35 0.25 5.01 ESMH350VSN153MA35S
16
18,000 22 B 40 0.40 3.72 ESMH160VSN183MP40S 18,000 30 B 45 0.25 4.71 ESMH350VSN183MR45S
18,000 25.4 B 35 0.40 3.98 ESMH160VSN183MQ35S 18,000 35 B 40 0.25 5.54 ESMH350VSN183MA40S
18,000 30 B 25 0.40 4.00 ESMH160VSN183MR25S 22,000 30 B 50 0.25 5.33 ESMH350VSN223MR50S
22,000 22 B 50 0.40 4.37 ESMH160VSN223MP50S 22,000 35 B 45 0.25 6.04 ESMH350VSN223MA45S
22,000 25.4 B 40 0.40 4.26 ESMH160VSN223MQ40S 27,000 35 B 50 0.25 6.89 ESMH350VSN273MA50S
22,000 30 B 30 0.40 4.21 ESMH160VSN223MR30S 2,200 22 B 25 0.20 1.91 ESMH500VSN222MP25S
50
22,000 35 B 25 0.40 4.15 ESMH160VSN223MA25S 3,300 22 B 30 0.20 2.37 ESMH500VSN332MP30S
(2/3) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Standard snap-ins, 85C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
85c,120Hz) 85c,120Hz)
3,300 25.4 B 25 0.20 2.38 ESMH500VSN332MQ25S 1,200 22 B 25 0.15 1.69 ESMH800VSN122MP25S
3,900 22 B 35 0.20 2.65 ESMH500VSN392MP35S 1,500 22 B 25 0.15 1.88 ESMH800VSN152MP25S
3,900 25.4 B 30 0.20 2.68 ESMH500VSN392MQ30S 1,800 22 B 30 0.15 2.14 ESMH800VSN182MP30S
3,900 30 B 25 0.20 2.55 ESMH500VSN392MR25S 1,800 25.4 B 25 0.15 2.26 ESMH800VSN182MQ25S
4,700 22 B 40 0.20 2.99 ESMH500VSN472MP40S 2,200 22 B 35 0.15 2.44 ESMH800VSN222MP35S
4,700 25.4 B 35 0.20 3.03 ESMH500VSN472MQ35S 2,200 25.4 B 30 0.15 2.46 ESMH800VSN222MQ30S
4,700 30 B 25 0.20 2.81 ESMH500VSN472MR25S 2,200 30 B 25 0.15 2.49 ESMH800VSN222MR25S
5,600 22 B 45 0.20 3.36 ESMH500VSN562MP45S 2,700 22 B 40 0.15 2.78 ESMH800VSN272MP40S
5,600 25.4 B 35 0.20 3.31 ESMH500VSN562MQ35S 2,700 25.4 B 35 0.15 2.81 ESMH800VSN272MQ35S
5,600 30 B 30 0.20 3.37 ESMH500VSN562MR30S 2,700 30 B 25 0.15 2.75 ESMH800VSN272MR25S
5,600 35 B 25 0.20 3.42 ESMH500VSN562MA25S 3,300 22 B 45 0.15 3.16 ESMH800VSN332MP45S
6,800 22 B 50 0.20 3.81 ESMH500VSN682MP50S 3,300 25.4 B 40 0.15 3.21 ESMH800VSN332MQ40S
50
6,800 25.4 B 40 0.20 3.81 ESMH500VSN682MQ40S 3,300 30 B 30 0.15 3.17 ESMH800VSN332MR30S
6,800 30 B 35 0.20 3.85 ESMH500VSN682MR35S 80 3,300 35 B 25 0.15 3.21 ESMH800VSN332MA25S
6,800 35 B 30 0.20 3.85 ESMH500VSN682MA30S 3,900 22 B 50 0.15 3.52 ESMH800VSN392MP50S
8,200 25.4 B 50 0.20 4.37 ESMH500VSN822MQ50S 3,900 25.4 B 45 0.15 3.59 ESMH800VSN392MQ45S
8,200 30 B 40 0.20 4.36 ESMH500VSN822MR40S 3,900 30 B 35 0.15 3.57 ESMH800VSN392MR35S
8,200 35 B 30 0.20 4.41 ESMH500VSN822MA30S 3,900 35 B 25 0.15 3.50 ESMH800VSN392MA25S
10,000 30 B 45 0.20 4.97 ESMH500VSN103MR45S 4,700 25.4 B 50 0.15 4.05 ESMH800VSN472MQ50S
10,000 35 B 35 0.20 4.92 ESMH500VSN103MA35S 4,700 30 B 40 0.15 4.05 ESMH800VSN472MR40S
12,000 30 B 50 0.20 5.60 ESMH500VSN123MR50S 4,700 35 B 30 0.15 4.09 ESMH800VSN472MA30S
12,000 35 B 40 0.20 5.58 ESMH500VSN123MA40S 5,600 30 B 45 0.15 4.55 ESMH800VSN562MR45S
15,000 35 B 45 0.20 6.44 ESMH500VSN153MA45S 5,600 35 B 35 0.15 4.51 ESMH800VSN562MA35S
18,000 35 B 50 0.20 6.71 ESMH500VSN183MA50S 6,800 30 B 50 0.15 5.16 ESMH800VSN682MR50S
1,800 22 B 25 0.15 1.82 ESMH630VSN182MP25S 6,800 35 B 40 0.15 5.14 ESMH800VSN682MA40S
2,200 22 B 30 0.15 2.31 ESMH630VSN222MP30S 8,200 35 B 45 0.15 5.83 ESMH800VSN822MA45S
2,200 25.4 B 25 0.15 2.30 ESMH630VSN222MQ25S 10,000 35 B 50 0.15 6.63 ESMH800VSN103MA50S
2,700 22 B 35 0.15 2.40 ESMH630VSN272MP35S 820 22 B 25 0.15 1.86 ESMH101VSN821MP25S
2,700 25.4 B 25 0.15 2.40 ESMH630VSN272MQ25S 1,200 22 B 30 0.15 2.09 ESMH101VSN122MP30S
3,300 22 B 35 0.15 2.62 ESMH630VSN332MP35S 1,200 25.4 B 25 0.15 2.10 ESMH101VSN122MQ25S
3,300 25.4 B 30 0.15 2.64 ESMH630VSN332MQ30S 1,500 22 B 35 0.15 2.41 ESMH101VSN152MP35S
3,300 30 B 25 0.15 2.78 ESMH630VSN332MR25S 1,500 25.4 B 30 0.15 2.43 ESMH101VSN152MQ30S
3,900 22 B 40 0.15 2.93 ESMH630VSN392MP40S 1,500 30 B 25 0.15 2.46 ESMH101VSN152MR25S
3,900 25.4 B 35 0.15 2.97 ESMH630VSN392MQ35S 1,800 22 B 40 0.15 2.71 ESMH101VSN182MP40S
3,900 30 B 30 0.15 3.00 ESMH630VSN392MR30S 1,800 25.4 B 35 0.15 2.75 ESMH101VSN182MQ35S
3,900 35 B 25 0.15 3.00 ESMH630VSN392MA25S 1,800 30 B 25 0.15 2.72 ESMH101VSN182MR25S
4,700 22 B 50 0.15 3.39 ESMH630VSN472MP50S 2,200 22 B 45 0.15 3.08 ESMH101VSN222MP45S
63 4,700 25.4 B 40 0.15 3.36 ESMH630VSN472MQ40S 2,200 25.4 B 40 0.15 3.13 ESMH101VSN222MQ40S
4,700 30 B 30 0.15 3.32 ESMH630VSN472MR30S 2,200 30 B 30 0.15 3.09 ESMH101VSN222MR30S
4,700 35 B 25 0.15 3.36 ESMH630VSN472MA25S 2,200 35 B 25 0.15 3.14 ESMH101VSN222MA25S
100
5,600 25.4 B 45 0.15 3.77 ESMH630VSN562MQ45S 2,700 22 B 50 0.15 3.53 ESMH101VSN272MP50S
5,600 30 B 35 0.15 3.75 ESMH630VSN562MR35S 2,700 25.4 B 45 0.15 3.57 ESMH101VSN272MQ45S
5,600 35 B 30 0.15 3.76 ESMH630VSN562MA30S 2,700 30 B 35 0.15 3.55 ESMH101VSN272MR35S
6,800 25.4 B 50 0.15 4.27 ESMH630VSN682MQ50S 2,700 35 B 30 0.15 3.71 ESMH101VSN272MA30S
6,800 30 B 40 0.15 4.27 ESMH630VSN682MR40S 3,300 25.4 B 50 0.15 4.06 ESMH101VSN332MQ50S
6,800 35 B 30 0.15 4.15 ESMH630VSN682MA30S 3,300 30 B 40 0.15 4.05 ESMH101VSN332MR40S
8,200 30 B 45 0.15 4.83 ESMH630VSN822MR45S 3,300 35 B 30 0.15 4.05 ESMH101VSN332MA30S
8,200 35 B 35 0.15 4.79 ESMH630VSN822MA35S 3,900 30 B 45 0.15 4.54 ESMH101VSN392MR45S
10,000 30 B 50 0.15 5.49 ESMH630VSN103MR50S 3,900 35 B 35 0.15 4.49 ESMH101VSN392MA35S
10,000 35 B 40 0.15 5.47 ESMH630VSN103MA40S 4,700 30 B 50 0.15 5.13 ESMH101VSN472MR50S
12,000 35 B 45 0.15 6.19 ESMH630VSN123MA45S 4,700 35 B 40 0.15 5.11 ESMH101VSN472MA40S
5,600 35 B 45 0.15 5.75 ESMH101VSN562MA45S
6,800 35 B 50 0.15 6.50 ESMH101VSN682MA50S
*For the rated voltage]160Vdc, please use SMQ series
?RATED RIPPLE CURRENT MULTIPLIERS
@Frequency Multipliers
Frequency (Hz) 50 120 300 1k 10k 50k
6.3 to 50Vdc 0.95 1.00 1.03 1.05 1.08 1.08
63 to 100Vdc 0.92 1.00 1.07 1.13 1.19 1.20
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
(3/3) CAT. No. E1001K
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
