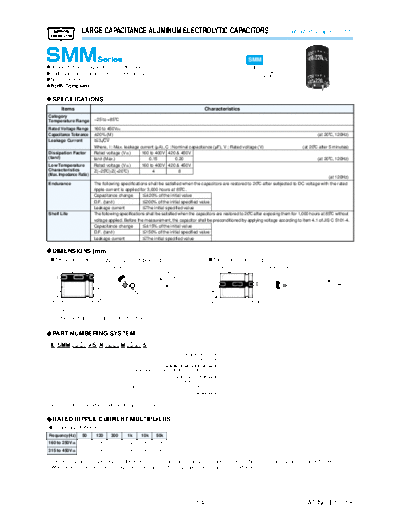

Image preview - the first page of the document
>> Download smm_snapin documenatation <<
Text preview - extract from the document
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Downsized snap-ins, 85C
SMM
@Downsized and longer life from SMQ series
@Endurance with ripple current : 3,000 hours at 85C Downsized
Longer life
@Non solvent resistant type
@RoHS Compliant SMQ
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -25 to +85C
Rated Voltage Range 160 to 450Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I[3 CV
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 5 minutes)
Dissipation Factor Rated voltage (Vdc) 160 to 400V 420 & 450V
(tane) tanE (Max.) 0.15 0.20 (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 160 to 400V 420 & 450V
Characteristics Z(-25C)/Z(+20C) 4 8
(Max. Impedance Ratio)
(at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated
ripple current is applied for 3,000 hours at 85C.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 85C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P15% of the initial value
D.F. (tanE) [150% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : VS (F20 to F35) : Standard @Terminal Code : LI (F35)
Sleeve (PET : Black) Negative mark PC board pin-out Sleeve (PET : Black) Negative mark PC board pin-out
4.2P0.5
2-1.2B6
10
FD+1max.
FD+1max.
5P0.5
2-F2
*
4.0P0.5 14.2P1
LP2 LP2 4.5P1
Vent Vent
*FD=35mm : 3.5P0.5mm
The standard design has no plastic disc.
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E S MM A A A V S N A A A M A A A S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 330MF:331, 3,300MF:332)
Dummy terminal code
Terminal code (VS, LI)
Voltage code (ex. 160V:161, 315V:3B1, 450V:451)
Series code
Category
Please refer to "Product code guide (snap-in type)"
?RATED RIPPLE CURRENT MULTIPLIERS
@Frequency Multipliers
Frequency(Hz) 50 120 300 1k 10k 50k
160 to 250Vdc 0.81 1.00 1.17 1.32 1.45 1.50
315 to 450Vdc 0.77 1.00 1.16 1.30 1.41 1.43
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5C rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
(1/4) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Downsized snap-ins, 85C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
85c,120Hz) 85c,120Hz)
270 20 B 25 0.15 1.28 ESMM161VSN271MN25S 1,200 25.4 B 45 0.15 3.63 ESMM181VSN122MQ45S
270 22 B 20 0.15 1.30 ESMM161VSN271MP20S 1,200 30 B 35 0.15 3.55 ESMM181VSN122MR35S
330 20 B 25 0.15 1.55 ESMM161VSN331MN25S 1,200 35 B 30 0.15 3.49 ESMM181VSN122MA30S
390 20 B 30 0.15 1.63 ESMM161VSN391MN30S 1,500 30 B 40 0.15 4.10 ESMM181VSN152MR40S
390 22 B 25 0.15 1.63 ESMM161VSN391MP25S 180 1,500 35 B 35 0.15 4.02 ESMM181VSN152MA35S
390 25.4 B 20 0.15 1.62 ESMM161VSN391MQ20S 1,800 30 B 45 0.15 4.55 ESMM181VSN182MR45S
470 20 B 30 0.15 1.90 ESMM161VSN471MN30S 1,800 35 B 35 0.15 4.54 ESMM181VSN182MA35S
470 22 B 30 0.15 1.86 ESMM161VSN471MP30S 2,200 35 B 40 0.15 4.83 ESMM181VSN222MA40S
470 25.4 B 25 0.15 1.86 ESMM161VSN471MQ25S 2,700 35 B 50 0.15 5.30 ESMM181VSN272MA50S
560 20 B 35 0.15 2.14 ESMM161VSN561MN35S 220 20 B 25 0.15 1.19 ESMM201VSN221MN25S
560 22 B 30 0.15 2.15 ESMM161VSN561MP30S 220 22 B 20 0.15 1.18 ESMM201VSN221MP20S
560 25.4 B 25 0.15 2.15 ESMM161VSN561MQ25S 270 20 B 25 0.15 1.39 ESMM201VSN271MN25S
560 30 B 20 0.15 2.05 ESMM161VSN561MR20S 270 22 B 25 0.15 1.37 ESMM201VSN271MP25S
680 20 B 40 0.15 2.35 ESMM161VSN681MN40S 270 25.4 B 20 0.15 1.35 ESMM201VSN271MQ20S
680 22 B 35 0.15 2.35 ESMM161VSN681MP35S 330 20 B 30 0.15 1.56 ESMM201VSN331MN30S
680 25.4 B 30 0.15 2.33 ESMM161VSN681MQ30S 330 22 B 25 0.15 1.51 ESMM201VSN331MP25S
680 30 B 25 0.15 2.33 ESMM161VSN681MR25S 330 25.4 B 20 0.15 1.49 ESMM201VSN331MQ20S
680 35 B 20 0.15 2.26 ESMM161VSN681MA20S 390 20 B 35 0.15 1.74 ESMM201VSN391MN35S
820 20 B 45 0.15 2.64 ESMM161VSN821MN45S 390 22 B 30 0.15 1.73 ESMM201VSN391MP30S
820 22 B 40 0.15 2.68 ESMM161VSN821MP40S 390 25.4 B 25 0.15 1.71 ESMM201VSN391MQ25S
160
820 25.4 B 30 0.15 2.65 ESMM161VSN821MQ30S 390 30 B 20 0.15 1.71 ESMM201VSN391MR20S
820 30 B 25 0.15 2.64 ESMM161VSN821MR25S 470 20 B 35 0.15 2.03 ESMM201VSN471MN35S
820 35 B 20 0.15 2.49 ESMM161VSN821MA20S 470 22 B 30 0.15 1.97 ESMM201VSN471MP30S
1,000 22 B 45 0.15 3.02 ESMM161VSN102MP45S 470 25.4 B 25 0.15 1.95 ESMM201VSN471MQ25S
1,000 25.4 B 35 0.15 3.00 ESMM161VSN102MQ35S 470 30 B 20 0.15 1.88 ESMM201VSN471MR20S
1,000 30 B 30 0.15 2.96 ESMM161VSN102MR30S 560 20 B 40 0.15 2.18 ESMM201VSN561MN40S
1,000 35 B 25 0.15 3.13 ESMM161VSN102MA25S 560 22 B 35 0.15 2.18 ESMM201VSN561MP35S
1,200 22 B 50 0.15 3.47 ESMM161VSN122MP50S 560 25.4 B 30 0.15 2.15 ESMM201VSN561MQ30S
1,200 25.4 B 40 0.15 3.43 ESMM161VSN122MQ40S 560 30 B 25 0.15 2.15 ESMM201VSN561MR25S
1,200 30 B 30 0.15 3.41 ESMM161VSN122MR30S 560 35 B 20 0.15 2.05 ESMM201VSN561MA20S
200
1,200 35 B 25 0.15 3.40 ESMM161VSN122MA25S 680 20 B 50 0.15 2.48 ESMM201VSN681MN50S
1,500 25.4 B 50 0.15 3.96 ESMM161VSN152MQ50S 680 22 B 40 0.15 2.48 ESMM201VSN681MP40S
1,500 30 B 35 0.15 3.96 ESMM161VSN152MR35S 680 25.4 B 30 0.15 2.48 ESMM201VSN681MQ30S
1,500 35 B 30 0.15 3.94 ESMM161VSN152MA30S 680 30 B 25 0.15 2.48 ESMM201VSN681MR25S
1,800 30 B 40 0.15 4.31 ESMM161VSN182MR40S 680 35 B 20 0.15 2.36 ESMM201VSN681MA20S
1,800 35 B 35 0.15 4.28 ESMM161VSN182MA35S 820 22 B 45 0.15 2.81 ESMM201VSN821MP45S
2,200 30 B 50 0.15 4.96 ESMM161VSN222MR50S 820 25.4 B 35 0.15 2.79 ESMM201VSN821MQ35S
2,200 35 B 40 0.15 4.96 ESMM161VSN222MA40S 820 30 B 30 0.15 2.80 ESMM201VSN821MR30S
2,700 35 B 45 0.15 5.57 ESMM161VSN272MA45S 820 35 B 25 0.15 2.83 ESMM201VSN821MA25S
3,300 35 B 50 0.15 6.21 ESMM161VSN332MA50S 1,000 22 B 50 0.15 3.28 ESMM201VSN102MP50S
220 22 B 20 0.15 1.18 ESMM181VSN221MP20S 1,000 25.4 B 40 0.15 3.28 ESMM201VSN102MQ40S
270 20 B 25 0.15 1.29 ESMM181VSN271MN25S 1,000 30 B 35 0.15 3.15 ESMM201VSN102MR35S
330 20 B 30 0.15 1.77 ESMM181VSN331MN30S 1,000 35 B 30 0.15 3.26 ESMM201VSN102MA30S
330 22 B 25 0.15 1.77 ESMM181VSN331MP25S 1,200 25.4 B 45 0.15 3.61 ESMM201VSN122MQ45S
330 25.4 B 20 0.15 1.49 ESMM181VSN331MQ20S 1,200 30 B 35 0.15 3.61 ESMM201VSN122MR35S
390 20 B 30 0.15 1.84 ESMM181VSN391MN30S 1,200 35 B 30 0.15 3.57 ESMM201VSN122MA30S
390 22 B 25 0.15 1.84 ESMM181VSN391MP25S 1,500 30 B 45 0.15 4.13 ESMM201VSN152MR45S
470 20 B 35 0.15 1.91 ESMM181VSN471MN35S 1,500 35 B 35 0.15 4.06 ESMM201VSN152MA35S
470 22 B 30 0.15 1.91 ESMM181VSN471MP30S 1,800 30 B 50 0.15 4.60 ESMM201VSN182MR50S
470 25.4 B 25 0.15 2.08 ESMM181VSN471MQ25S 1,800 35 B 40 0.15 4.59 ESMM201VSN182MA40S
470 30 B 20 0.15 1.88 ESMM181VSN471MR20S 2,200 35 B 45 0.15 5.25 ESMM201VSN222MA45S
560 20 B 40 0.15 2.15 ESMM181VSN561MN40S 180 22 B 20 0.15 1.06 ESMM221VSN181MP20S
560 22 B 35 0.15 2.25 ESMM181VSN561MP35S 220 20 B 25 0.15 1.25 ESMM221VSN221MN25S
180 560 25.4 B 25 0.15 2.25 ESMM181VSN561MQ25S 270 20 B 30 0.15 1.46 ESMM221VSN271MN30S
680 20 B 45 0.15 2.41 ESMM181VSN681MN45S 270 22 B 25 0.15 1.47 ESMM221VSN271MP25S
680 22 B 35 0.15 2.48 ESMM181VSN681MP35S 270 25.4 B 20 0.15 1.35 ESMM221VSN271MQ20S
680 25.4 B 30 0.15 2.50 ESMM181VSN681MQ30S 330 20 B 35 0.15 1.64 ESMM221VSN331MN35S
680 30 B 25 0.15 2.46 ESMM181VSN681MR25S 330 22 B 30 0.15 1.70 ESMM221VSN331MP30S
680 35 B 20 0.15 2.26 ESMM181VSN681MA20S 330 25.4 B 25 0.15 1.69 ESMM221VSN331MQ25S
220
820 20 B 50 0.15 2.72 ESMM181VSN821MN50S 330 30 B 20 0.15 1.58 ESMM221VSN331MR20S
820 22 B 40 0.15 2.86 ESMM181VSN821MP40S 390 20 B 35 0.15 1.84 ESMM221VSN391MN35S
820 25.4 B 35 0.15 2.75 ESMM181VSN821MQ35S 390 22 B 30 0.15 1.89 ESMM221VSN391MP30S
820 30 B 25 0.15 2.69 ESMM181VSN821MR25S 390 25.4 B 25 0.15 1.84 ESMM221VSN391MQ25S
1,000 22 B 50 0.15 3.10 ESMM181VSN102MP50S 390 30 B 20 0.15 1.71 ESMM221VSN391MR20S
1,000 25.4 B 40 0.15 3.06 ESMM181VSN102MQ40S 470 20 B 40 0.15 2.12 ESMM221VSN471MN40S
1,000 30 B 30 0.15 3.10 ESMM181VSN102MR30S 470 22 B 35 0.15 2.08 ESMM221VSN471MP35S
1,000 35 B 25 0.15 2.98 ESMM181VSN102MA25S 470 25.4 B 30 0.15 2.08 ESMM221VSN471MQ30S
(2/4) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Downsized snap-ins, 85C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
85c,120Hz) 85c,120Hz)
470 30 B 25 0.15 2.12 ESMM221VSN471MR25S 180 22 B 30 0.15 1.29 ESMM3B1VSN181MP30S
470 35 B 20 0.15 1.88 ESMM221VSN471MA20S 180 25.4 B 25 0.15 1.38 ESMM3B1VSN181MQ25S
560 20 B 50 0.15 2.33 ESMM221VSN561MN50S 180 30 B 20 0.15 1.16 ESMM3B1VSN181MR20S
560 22 B 40 0.15 2.33 ESMM221VSN561MP40S 220 20 B 35 0.15 1.30 ESMM3B1VSN221MN35S
560 25.4 B 35 0.15 2.38 ESMM221VSN561MQ35S 220 22 B 30 0.15 1.41 ESMM3B1VSN221MP30S
560 30 B 25 0.15 2.31 ESMM221VSN561MR25S 220 25.4 B 25 0.15 1.47 ESMM3B1VSN221MQ25S
560 35 B 20 0.15 2.14 ESMM221VSN561MA20S 220 30 B 20 0.15 1.28 ESMM3B1VSN221MR20S
680 22 B 45 0.15 2.63 ESMM221VSN681MP45S 270 20 B 45 0.15 1.52 ESMM3B1VSN271MN45S
680 25.4 B 35 0.15 2.68 ESMM221VSN681MQ35S 270 22 B 35 0.15 1.68 ESMM3B1VSN271MP35S
680 30 B 30 0.15 2.62 ESMM221VSN681MR30S 270 25.4 B 30 0.15 1.70 ESMM3B1VSN271MQ30S
680 35 B 25 0.15 2.58 ESMM221VSN681MA25S 270 30 B 25 0.15 1.55 ESMM3B1VSN271MR25S
220
820 25.4 B 45 0.15 3.01 ESMM221VSN821MQ45S 270 35 B 20 0.15 1.43 ESMM3B1VSN271MA20S
820 30 B 35 0.15 2.99 ESMM221VSN821MR35S 330 20 B 50 0.15 1.73 ESMM3B1VSN331MN50S
820 35 B 30 0.15 2.79 ESMM221VSN821MA30S 330 22 B 40 0.15 1.91 ESMM3B1VSN331MP40S
1,000 25.4 B 50 0.15 3.40 ESMM221VSN102MQ50S 330 25.4 B 35 0.15 1.94 ESMM3B1VSN331MQ35S
1,000 30 B 35 0.15 3.42 ESMM221VSN102MR35S 315 330 30 B 25 0.15 1.98 ESMM3B1VSN331MR25S
1,000 35 B 30 0.15 3.29 ESMM221VSN102MA30S 390 22 B 45 0.15 2.07 ESMM3B1VSN391MP45S
1,200 30 B 40 0.15 3.88 ESMM221VSN122MR40S 390 25.4 B 40 0.15 2.11 ESMM3B1VSN391MQ40S
1,200 35 B 35 0.15 3.68 ESMM221VSN122MA35S 390 30 B 30 0.15 2.15 ESMM3B1VSN391MR30S
1,500 30 B 50 0.15 4.44 ESMM221VSN152MR50S 390 35 B 25 0.15 1.95 ESMM3B1VSN391MA25S
1,500 35 B 40 0.15 4.10 ESMM221VSN152MA40S 470 25.4 B 45 0.15 2.31 ESMM3B1VSN471MQ45S
1,800 35 B 45 0.15 4.52 ESMM221VSN182MA45S 470 30 B 35 0.15 2.38 ESMM3B1VSN471MR35S
150 22 B 20 0.15 0.97 ESMM251VSN151MP20S 470 35 B 30 0.15 2.46 ESMM3B1VSN471MA30S
180 20 B 25 0.15 1.20 ESMM251VSN181MN25S 560 25.4 B 50 0.15 2.46 ESMM3B1VSN561MQ50S
180 22 B 20 0.15 1.06 ESMM251VSN181MP20S 560 30 B 35 0.15 2.63 ESMM3B1VSN561MR35S
220 20 B 25 0.15 1.26 ESMM251VSN221MN25S 560 35 B 30 0.15 2.69 ESMM3B1VSN561MA30S
220 22 B 25 0.15 1.24 ESMM251VSN221MP25S 680 30 B 45 0.15 2.82 ESMM3B1VSN681MR45S
220 25.4 B 20 0.15 1.22 ESMM251VSN221MQ20S 680 35 B 35 0.15 3.05 ESMM3B1VSN681MA35S
270 20 B 30 0.15 1.42 ESMM251VSN271MN30S 820 30 B 50 0.15 3.28 ESMM3B1VSN821MR50S
270 22 B 25 0.15 1.50 ESMM251VSN271MP25S 820 35 B 40 0.15 3.45 ESMM3B1VSN821MA40S
330 20 B 35 0.15 1.68 ESMM251VSN331MN35S 1,000 35 B 45 0.15 3.59 ESMM3B1VSN102MA45S
330 22 B 30 0.15 1.66 ESMM251VSN331MP30S 82 22 B 20 0.15 0.72 ESMM351VSN820MP20S
330 25.4 B 25 0.15 1.61 ESMM251VSN331MQ25S 100 20 B 25 0.15 0.81 ESMM351VSN101MN25S
330 30 B 20 0.15 1.58 ESMM251VSN331MR20S 120 20 B 30 0.15 0.96 ESMM351VSN121MN30S
390 20 B 40 0.15 1.92 ESMM251VSN391MN40S 120 22 B 25 0.15 1.04 ESMM351VSN121MP25S
390 22 B 35 0.15 1.88 ESMM251VSN391MP35S 120 25.4 B 20 0.15 0.90 ESMM351VSN121MQ20S
390 25.4 B 30 0.15 1.88 ESMM251VSN391MQ30S 150 20 B 30 0.15 1.10 ESMM351VSN151MN30S
390 30 B 25 0.15 1.86 ESMM251VSN391MR25S 150 22 B 30 0.15 1.20 ESMM351VSN151MP30S
390 35 B 20 0.15 1.71 ESMM251VSN391MA20S 150 25.4 B 25 0.15 1.22 ESMM351VSN151MQ25S
470 20 B 50 0.15 2.06 ESMM251VSN471MN50S 150 30 B 20 0.15 1.06 ESMM351VSN151MR20S
470 22 B 35 0.15 2.15 ESMM251VSN471MP35S 180 20 B 35 0.15 1.24 ESMM351VSN181MN35S
250
470 25.4 B 35 0.15 2.15 ESMM251VSN471MQ35S 180 22 B 30 0.15 1.34 ESMM351VSN181MP30S
470 30 B 25 0.15 2.05 ESMM251VSN471MR25S 180 25.4 B 25 0.15 1.37 ESMM351VSN181MQ25S
470 35 B 20 0.15 1.88 ESMM251VSN471MA20S 180 30 B 20 0.15 1.16 ESMM351VSN181MR20S
560 22 B 40 0.15 2.48 ESMM251VSN561MP40S 220 20 B 45 0.15 1.37 ESMM351VSN221MN45S
560 25.4 B 35 0.15 2.35 ESMM251VSN561MQ35S 220 22 B 35 0.15 1.47 ESMM351VSN221MP35S
560 30 B 25 0.15 2.35 ESMM251VSN561MR25S 220 25.4 B 30 0.15 1.53 ESMM351VSN221MQ30S
680 22 B 50 0.15 2.61 ESMM251VSN681MP50S 220 30 B 25 0.15 1.54 ESMM351VSN221MR25S
680 25.4 B 40 0.15 2.67 ESMM251VSN681MQ40S 220 35 B 20 0.15 1.29 ESMM351VSN221MA20S
350
680 30 B 30 0.15 2.71 ESMM251VSN681MR30S 270 20 B 50 0.15 1.56 ESMM351VSN271MN50S
680 35 B 25 0.15 2.58 ESMM251VSN681MA25S 270 22 B 40 0.15 1.70 ESMM351VSN271MP40S
820 25.4 B 45 0.15 3.01 ESMM251VSN821MQ45S 270 25.4 B 35 0.15 1.73 ESMM351VSN271MQ35S
820 30 B 35 0.15 2.98 ESMM251VSN821MR35S 270 30 B 25 0.15 1.80 ESMM351VSN271MR25S
820 35 B 30 0.15 2.96 ESMM251VSN821MA30S 270 35 B 20 0.15 1.49 ESMM351VSN271MA20S
1,000 30 B 40 0.15 3.56 ESMM251VSN102MR40S 330 22 B 45 0.15 1.87 ESMM351VSN331MP45S
1,000 35 B 35 0.15 3.48 ESMM251VSN102MA35S 330 25.4 B 35 0.15 1.97 ESMM351VSN331MQ35S
1,200 30 B 45 0.15 3.99 ESMM251VSN122MR45S 330 30 B 30 0.15 2.03 ESMM351VSN331MR30S
1,200 35 B 35 0.15 3.84 ESMM251VSN122MA35S 330 35 B 25 0.15 1.80 ESMM351VSN331MA25S
1,500 35 B 40 0.15 4.33 ESMM251VSN152MA40S 390 25.4 B 40 0.15 2.14 ESMM351VSN391MQ40S
1,800 35 B 50 0.15 4.54 ESMM251VSN182MA50S 390 30 B 35 0.15 2.23 ESMM351VSN391MR35S
100 22 B 20 0.15 0.79 ESMM3B1VSN101MP20S 390 35 B 30 0.15 2.30 ESMM351VSN391MA30S
120 20 B 25 0.15 0.89 ESMM3B1VSN121MN25S 470 25.4 B 50 0.15 2.55 ESMM351VSN471MQ50S
120 25.4 B 20 0.15 0.90 ESMM3B1VSN121MQ20S 470 30 B 35 0.15 2.53 ESMM351VSN471MR35S
315 150 20 B 30 0.15 1.05 ESMM3B1VSN151MN30S 470 35 B 30 0.15 2.55 ESMM351VSN471MA30S
150 22 B 25 0.15 1.06 ESMM3B1VSN151MP25S 560 30 B 40 0.15 2.73 ESMM351VSN561MR40S
150 25.4 B 20 0.15 1.00 ESMM3B1VSN151MQ20S 560 35 B 35 0.15 2.75 ESMM351VSN561MA35S
180 20 B 35 0.15 1.18 ESMM3B1VSN181MN35S 680 30 B 50 0.15 3.15 ESMM351VSN681MR50S
(3/4) CAT. No. E1001K
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS Downsized snap-ins, 85C
?STANDARD RATINGS
Rated ripple Rated ripple
WV Cap Case size current WV Cap Case size current
tane Part No. tane Part No.
(Vdc) (mF) fDbL(mm) (Arms/ (Vdc) (mF) fDbL(mm) (Arms/
85c,120Hz) 85c,120Hz)
680 35 B 40 0.15 3.15 ESMM351VSN681MA40S 180 20 B 50 0.20 1.27 ESMM421VSN181MN50S
350 820 35 B 45 0.15 3.47 ESMM351VSN821MA45S 180 22 B 40 0.20 1.33 ESMM421VSN181MP40S
1,000 35 B 50 0.15 3.60 ESMM351VSN102MA50S 180 25.4 B 35 0.20 1.42 ESMM421VSN181MQ35S
68 20 B 25 0.15 0.75 ESMM401VSN680MN25S 180 30 B 25 0.20 1.48 ESMM421VSN181MR25S
68 22 B 20 0.15 0.65 ESMM401VSN680MP20S 180 35 B 20 0.20 1.16 ESMM421VSN181MA20S
82 20 B 25 0.15 0.82 ESMM401VSN820MN25S 220 22 B 45 0.20 1.55 ESMM421VSN221MP45S
82 22 B 25 0.15 0.84 ESMM401VSN820MP25S 220 25.4 B 35 0.20 1.58 ESMM421VSN221MQ35S
82 25.4 B 20 0.15 0.74 ESMM401VSN820MQ20S 220 30 B 30 0.20 1.65 ESMM421VSN221MR30S
100 20 B 30 0.15 0.95 ESMM401VSN101MN30S 220 35 B 25 0.20 1.47 ESMM421VSN221MA25S
100 22 B 25 0.15 0.99 ESMM401VSN101MP25S 270 25.4 B 40 0.20 1.74 ESMM421VSN271MQ40S
100 25.4 B 20 0.15 0.82 ESMM401VSN101MQ20S 420 270 30 B 35 0.20 1.90 ESMM421VSN271MR35S
120 20 B 35 0.15 1.07 ESMM401VSN121MN35S 270 35 B 30 0.20 1.94 ESMM421VSN271MA30S
120 22 B 30 0.15 1.09 ESMM401VSN121MP30S 330 25.4 B 50 0.20 2.20 ESMM421VSN331MQ50S
120 25.4 B 25 0.15 1.13 ESMM401VSN121MQ25S 330 30 B 35 0.20 1.98 ESMM421VSN331MR35S
120 30 B 20 0.15 0.95 ESMM401VSN121MR20S 330 35 B 35 0.20 2.17 ESMM421VSN331MA35S
150 20 B 40 0.15 1.22 ESMM401VSN151MN40S 390 30 B 40 0.20 2.22 ESMM421VSN391MR40S
150 22 B 35 0.15 1.24 ESMM401VSN151MP35S 390 35 B 35 0.20 2.27 ESMM421VSN391MA35S
150 25.4 B 30 0.15 1.27 ESMM401VSN151MQ30S 470 30 B 45 0.20 2.50 ESMM421VSN471MR45S
150 30 B 25 0.15 1.20 ESMM401VSN151MR25S 470 35 B 40 0.20 2.61 ESMM421VSN471MA40S
180 20 B 45 0.15 1.28 ESMM401VSN181MN45S 560 35 B 45 0.20 2.95 ESMM421VSN561MA45S
180 22 B 40 0.15 1.41 ESMM401VSN181MP40S 680 35 B 50 0.20 3.15 ESMM421VSN681MA50S
180 25.4 B 30 0.15 1.44 ESMM401VSN181MQ30S 47 22 B 20 0.20 0.54 ESMM451VSN470MP20S
180 30 B 25 0.15 1.52 ESMM401VSN181MR25S 56 20 B 25 0.20 0.61 ESMM451VSN560MN25S
400 180 35 B 20 0.15 1.16 ESMM401VSN181MA20S 56 22 B 20 0.20 0.59 ESMM451VSN560MP20S
220 20 B 50 0.15 1.41 ESMM401VSN221MN50S 68 20 B 30 0.20 0.71 ESMM451VSN680MN30S
220 22 B 45 0.15 1.58 ESMM401VSN221MP45S 68 22 B 25 0.20 0.71 ESMM451VSN680MP25S
220 25.4 B 35 0.15 1.64 ESMM401VSN221MQ35S 68 25.4 B 20 0.20 0.68 ESMM451VSN680MQ20S
220 30 B 30 0.15 1.66 ESMM401VSN221MR30S 82 20 B 35 0.20 0.80 ESMM451VSN820MN35S
220 35 B 25 0.15 1.47 ESMM401VSN221MA25S 82 22 B 25 0.20 0.86 ESMM451VSN820MP25S
270 22 B 50 0.15 1.65 ESMM401VSN271MP50S 82 25.4 B 20 0.20 0.74 ESMM451VSN820MQ20S
270 25.4 B 40 0.15 1.79 ESMM401VSN271MQ40S 82 30 B 20 0.20 0.79 ESMM451VSN820MR20S
270 30 B 30 0.15 1.82 ESMM401VSN271MR30S 100 20 B 35 0.20 0.88 ESMM451VSN101MN35S
270 35 B 25 0.15 1.63 ESMM401VSN271MA25S 100 22 B 30 0.20 0.95 ESMM451VSN101MP30S
330 25.4 B 45 0.15 2.00 ESMM401VSN331MQ45S 100 25.4 B 25 0.20 0.97 ESMM451VSN101MQ25S
330 30 B 35 0.15 2.05 ESMM401VSN331MR35S 100 30 B 20 0.20 0.87 ESMM451VSN101MR20S
330 35 B 30 0.15 2.05 ESMM401VSN331MA30S 120 20 B 40 0.20 0.99 ESMM451VSN121MN40S
390 25.4 B 50 0.15 2.12 ESMM401VSN391MQ50S 120 22 B 35 0.20 1.07 ESMM451VSN121MP35S
390 30 B 40 0.15 2.26 ESMM401VSN391MR40S 120 25.4 B 30 0.20 1.09 ESMM451VSN121MQ30S
390 35 B 35 0.15 2.28 ESMM401VSN391MA35S 120 30 B 25 0.20 1.12 ESMM451VSN121MR25S
470 30 B 45 0.15 2.51 ESMM401VSN471MR45S 120 35 B 20 0.20 0.99 ESMM451VSN121MA20S
470 35 B 35 0.15 2.54 ESMM401VSN471MA35S 150 20 B 45 0.20 1.13 ESMM451VSN151MN45S
560 30 B 50 0.15 2.85 ESMM401VSN561MR50S 150 22 B 40 0.20 1.18 ESMM451VSN151MP40S
560 35 B 40 0.15 2.85 ESMM401VSN561MA40S 450 150 25.4 B 30 0.20 1.25 ESMM451VSN151MQ30S
680 35 B 50 0.15 3.10 ESMM401VSN681MA50S 150 30 B 25 0.20 1.29 ESMM451VSN151MR25S
47 22 B 20 0.20 0.54 ESMM421VSN470MP20S 150 35 B 20 0.20 1.06 ESMM451VSN151MA20S
56 20 B 25 0.20 0.58 ESMM421VSN560MN25S 180 22 B 45 0.20 1.32 ESMM451VSN181MP45S
56 22 B 20 0.20 0.59 ESMM421VSN560MP20S 180 25.4 B 35 0.20 1.40 ESMM451VSN181MQ35S
68 20 B 25 0.20 0.70 ESMM421VSN680MN25S 180 30 B 30 0.20 1.45 ESMM451VSN181MR30S
68 25.4 B 20 0.20 0.68 ESMM421VSN680MQ20S 180 35 B 25 0.20 1.33 ESMM451VSN181MA25S
82 20 B 30 0.20 0.80 ESMM421VSN820MN30S 220 22 B 50 0.20 1.48 ESMM451VSN221MP50S
82 22 B 25 0.20 0.85 ESMM421VSN820MP25S 220 25.4 B 40 0.20 1.59 ESMM451VSN221MQ40S
82 25.4 B 20 0.20 0.74 ESMM421VSN820MQ20S 220 30 B 30 0.20 1.64 ESMM451VSN221MR30S
100 20 B 35 0.20 0.90 ESMM421VSN101MN35S 220 35 B 25 0.20 1.66 ESMM451VSN221MA25S
100 22 B 30 0.20 0.97 ESMM421VSN101MP30S 270 25.4 B 45 0.20 1.73 ESMM451VSN271MQ45S
420 100 25.4 B 25 0.20 0.98 ESMM421VSN101MQ25S 270 30 B 35 0.20 1.89 ESMM451VSN271MR35S
100 30 B 20 0.20 0.87 ESMM421VSN101MR20S 270 35 B 30 0.20 1.90 ESMM451VSN271MA30S
120 20 B 35 0.20 1.04 ESMM421VSN121MN35S 330 25.4 B 50 0.20 2.12 ESMM451VSN331MQ50S
120 22 B 30 0.20 1.07 ESMM421VSN121MP30S 330 30 B 40 0.20 2.12 ESMM451VSN331MR40S
120 25.4 B 25 0.20 1.08 ESMM421VSN121MQ25S 330 35 B 35 0.20 2.15 ESMM451VSN331MA35S
120 30 B 20 0.20 0.95 ESMM421VSN121MR20S 390 30 B 45 0.20 2.35 ESMM451VSN391MR45S
150 20 B 40 0.20 1.17 ESMM421VSN151MN40S 390 35 B 40 0.20 2.38 ESMM451VSN391MA40S
150 22 B 35 0.20 1.21 ESMM421VSN151MP35S 470 30 B 50 0.20 2.65 ESMM451VSN471MR50S
150 25.4 B 30 0.20 1.26 ESMM421VSN151MQ30S 470 35 B 45 0.20 2.68 ESMM451VSN471MA45S
150 30 B 25 0.20 1.30 ESMM421VSN151MR25S 560 35 B 50 0.20 2.88 ESMM451VSN561MA50S
150 35 B 20 0.20 1.11 ESMM421VSN151MA20S
(4/4) CAT. No. E1001K
◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
