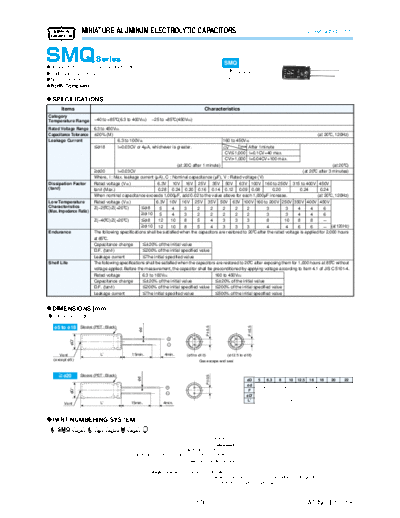

Image preview - the first page of the document
>> Download smq documenatation <<
Text preview - extract from the document
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS Downsized, 85C
SMQ
@Downsized from current standard SMG series
@Endurance : 2,000 hours at 85C Downsized
@Non solvent resistant type SMG
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +85C(6.3 to 400Vdc) -25 to +85C(450Vdc)
Rated Voltage Range 6.3 to 450Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current 6.3 to 100Vdc 160 to 450Vdc
[F18 I=0.03CV or 4MA, whichever is greater. CV Time After 1minute
CV[1,000 I=0.1CV+40 max.
CV>1,000 I=0.04CV+100 max.
(at 20C after 1 minute) (at 20C)
]F20 I=0.03CV (at 20C after 3 minutes)
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)
Dissipation Factor Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 250V 315 to 400V 450V
(tane) tanE (Max.) 0.28 0.24 0.20 0.16 0.14 0.12 0.09 0.08 0.20 0.24 0.24
When nominal capacitance exceeds 1,000MF, add 0.02 to the value above for each 1,000MF increase. (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 6.3V 10V 16V 25V 35V 50V 63V 100V 160 to 200V 250V 350V 400V 450V
Characteristics Z(-25C)/Z(+20C) [F8 5 4 3 2 2 2 2 2 3 3 4 4 6
(Max. Impedance Ratio)
]F10 5 4 3 2 2 2 2 2 3 3 4 4 6
Z(-40C)/Z(+20C) [F8 12 10 8 5 4 3 3 3 8 10 8 8 -
]F10 12 10 8 5 4 3 3 3 4 4 6 6 - (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 2,000 hours
at 85C.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 85C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Rated voltage 6.3 to 100Vdc 160 to 450Vdc
Capacitance change [P20% of the initial value [P20% of the initial value
D.F. (tanE) [200% of the initial specified value [200% of the initial specified value
Leakage current [The initial specified value [500% of the initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
f5 to f18 Sleeve (PET : Black)
FP0.5
FP0.5
Fd
FD'
Vent L' 15min. 4min. (F5 to F10) (F12.5 to F18)
(except F5) Gas escape end seal
]f20 Sleeve (PET : Black)
FP0.5
Fd
fD 5 6.3 8 10 12.5 16 18 20 22
fd 0.5 0.5 0.6 0.6 0.6 0.8 0.8 1.0 1.0
FD'
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10.0 10.0
fD' FD+0.5max. FD+0.5max.
L' L+1.5max. L+2.0max.
Vent L' 15min. 4min.
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E S MQ A A A E A A A A A M A A A N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 1.0MF:1R0,10MF:100,100MF:101)
Lead forming◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
