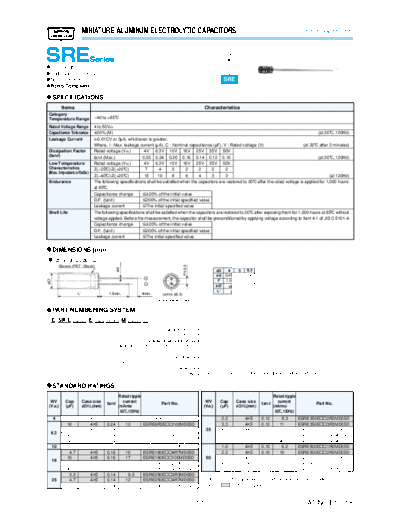

Image preview - the first page of the document
>> Download sre documenatation <<
Text preview - extract from the document
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS 5mm height, 85C
SRM
@5mm height Downsized
@Endurance : 1,000 hours at 85C
@Non solvent resistant type SRE
@RoHS Compliant
?SPECIFICATIONS
Items Characteristics
Category
Temperature Range -40 to +85C
Rated Voltage Range 4 to 50Vdc
Capacitance Tolerance P20% (M) (at 20C, 120Hz)
Leakage Current I=0.01CV or 3MA, whichever is greater.
Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V) (at 20C after 2 minutes)
Dissipation Factor Rated voltage (Vdc) 4V 6.3V 10V 16V 25V 35V 50V
(tane) tanE (Max.) 0.35 0.24 0.20 0.16 0.14 0.12 0.10 (at 20C, 120Hz)
Low Temperature Rated voltage (Vdc) 4V 6.3V 10V 16V 25V 35V 50V
Characteristics Z(-25C)/Z(+20C) 7 4 3 2 2 2 2
(Max. Impedance Ratio)
Z(-40C)/Z(+20C) 15 10 8 6 4 3 3 (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20C after the rated voltage is applied for 1,000 hours
at 85C.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 1,000 hours at 85C without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change [P20% of the initial value
D.F. (tanE) [200% of the initial specified value
Leakage current [The initial specified value
?DIMENSIONS [mm]
@Terminal Code : E
Sleeve (PET : Black)
FP0.5
Fd
fD 4 5 6.3
fd 0.45 0.45 0.45
FD'
F 1.5 2.0 2.5
fD' FD+0.5max.
L' L+1.0max.
L' 15min. 4min. (F4 to F6.3)
Gas escape end seal
?PART NUMBERING SYSTEM
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18
E SRE AAA E AA AAA M AAA N
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 1.0MF:1R0,100MF:101)
