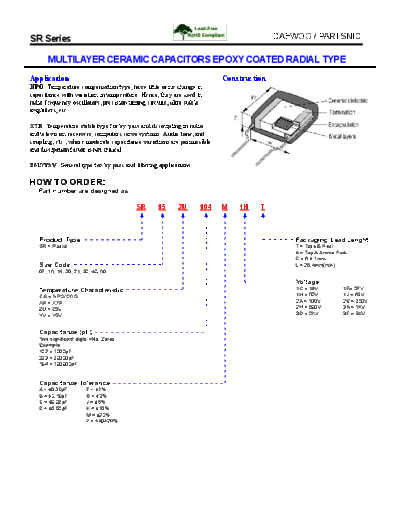

SR Series                                                                              DAEWOO / PARTSNIC

       MULTILAYER CERAMIC CAPACITORS EPOXY COATED RADIAL TYPE
Application                                                             Construction
NPO: Temperature compensation type, have little or no change in
capacitance with variation in temperature. Hence, they are used in
radio-frequency oscillators, precision timing circuits, ultra stable
amplifiers, etc.

X7R: Temperature stable type for by-pass and decoupling in radio
and television receivers, computers servo systems. Audio tone, and
coupling, etc., where moderate capacitance variations are permissible
and dissipation factor is not critical.

Z5U/Y5V: General type for by-pass and filtering applications.

HOW TO ORDER:
   Part number are designed as:

                                         SR       15      ZU      104   M   1H    T



   Product Type:                                                                           Packaging-Lead Lenght:
   SR = Radial                                                                             T = Tape & Reel
                                                                                           A = Tap & Ammo Pack
                                                                                           C = 6
