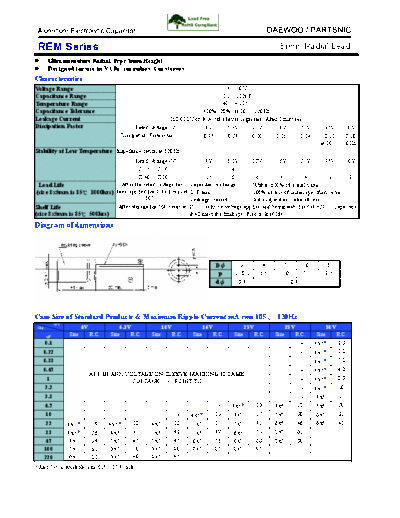

Image preview - the first page of the document
![Daewoo-Partsnic [radial thru-hole] REM SERIES](/pics/5c2d915633714.gif)
>> Download Daewoo-Partsnic [radial thru-hole] REM SERIES documenatation <<
Text preview - extract from the document
REM Series 5mm, Radial Lead
Ultra miniature Radial Type 5mm Height
Designed for use in VCRs, car radios, Car stereos.
Characteristics
Voltage Range 4 ~ 50 V
Capacitance Range 0.1 ~ 220uF
Temperature Range -40 ~ + 105
Capacitance Tolerance +20% -20% (at 20, 120Hz)
Leakage Current I0.01CV or 3uA, whichever is greater (After 2 minutes)
Dissipation Factor Rated Voltage (V) 4V 6.3V 10V 16V 25V 35V 50V
Dissipation Factor( tan)max 0.35 0.24 0.20 0.16 0.14 0.12 0.10
(at 20, 120Hz)
Stability at Low Temperature Impedance ration at 120Hz
Rated Voltage (V) 4V 6.3V 10V 16V 25V 35V 50V
Z-25/Z 20 7 4 3 2 2 2 2
Z-40/Z 20 15 8 6 4 4 3 3
Load Life After the rated voltage has Capacitance change Within ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
