Decon [bi-polar axial] AKP Series


>> Download Decon [bi-polar axial] AKP Series documenatation <<

Text preview - extract from the document

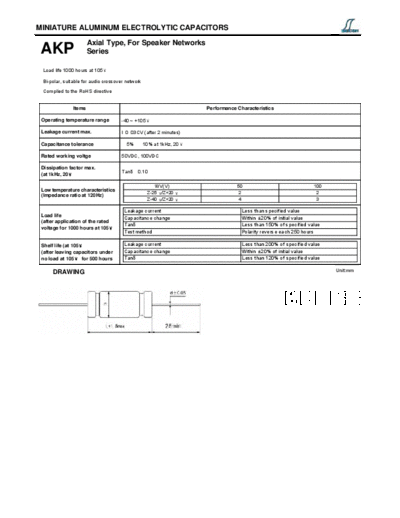

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

                       Axial Type, For Speaker Networks
AKP                    Series

 Load life 1000 hours at 105

 Bi-polar, suitable for audio crossover network
 Complied to the RoHS directive


               Items                                                Performance Characteristics

 Operating temperature range         -40 ~ +105

 Leakage current max.                I 0 03CV (after 2 minutes)

 Capacitance tolerance                  5%        10% at 1kHz, 20

 Rated working voltge                50VDC, 100VDC

 Dissipation factor max.
                                     Tan     0.10
 (at 1kHz, 20

                                                      WV(V)                     50                                100
 Low temperature characteristics
                                                   Z-25 /Z+20                    2                                 2
 (Impedance ratio at 120Hz)
                                                   Z-40 /Z+20                    4                                 3

                                       Leakage current                            Less than specified value
 Load life                             Capacitance change                         Within
