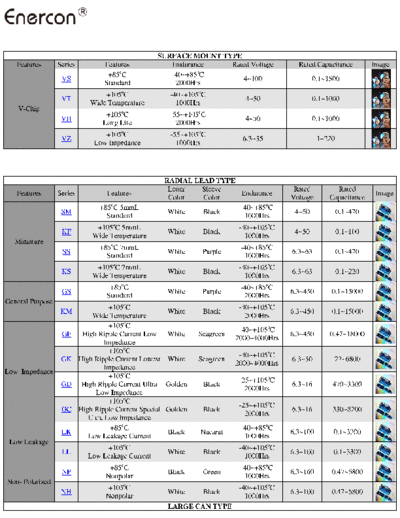

Image preview - the first page of the document
>> Download Enercon Series Table documenatation <<
Text preview - extract from the document
SURFACE MOUNT TYPE
Features Series Features Endurance Rated Voltage Rated Capacitance Image
+85oC o
-40~+85 C
VS 4~100 0.1~1500
Standard 2000Hrs
+105oC -40~+105oC
VT 4~50 0.1~1000
Wide Temperature 1000Hrs
V-Chip
+105oC -55~+105oC
VH 4~50 0.1~1000
Long Life 2000Hrs
+105oC -55~+105oC
VZ 6.3~35 1~220
Low Impedance 1000Hrs
RADIAL LEAD TYPE
Letter Sleeve Rated Rated
Features Series Features Endurance Image
Color Color Voltage Capacitance
+85oC 5mmL -40~+85oC
SM White Black 4~50 0.1~470
Standard 1000Hrs
+105oC 5mmL -40~+105oC
KF White Black 4~50 0.1~100
Wide Temperature 1000Hrs
Miniature
+85oC 7mmL -40~+85oC
SS White Purple 6.3~63 0.1~470
Standard 1000Hrs
+105oC 7mmL -40~+105oC
KS White Black 6.3~63 0.1~220
Wide Temperature 1000Hrs
+85oC -40~+85oC
GS White Purple 6.3~450 0.1~15000
Standard 2000Hrs
General Purpose
+105oC -40~+105oC
KM White Black 6.3~450 0.1~15000
Wide Temperature 2000Hrs
+105oC
-40~+105oC
GF High Ripple Current Low White Seagreen 6.3~450 0.47~18000
2000~4000Hrs
Impedance
+105oC
-40~+105oC
GK High Ripple Current Lowest White Seagreen 6.3~50 22~6800
2000~4000Hrs
Impedance
Low Impedance
+105oC
-25~+105oC
GD High Ripple Current Ultra Golden Black 6.3~16 470~3300
2000Hrs
Low Impedance
+105oC
-25~+105oC
GC High Ripple Current Special Golden Black 6.3~16 330~8200
2000Hrs
Ultra Low Impedance
+85oC -40~+85oC
LK Black Nacarat 6.3~100 0.1~3300
Low Leakage Current 1000Hrs
Low Leakage
+105oC -40~+105oC
LL White Black 6.3~100 0.1~3300
Low Leakage Current 1000Hrs
+85oC -40~+85oC
NP Black Green 6.3~160 0.47~6800
Nonpolar 1000Hrs
Non- Polarized
+105oC -40~+105oC
NH White Black 6.3~100 0.47~6800
Nonpolar 1000Hrs
LARGE CAN TYPE
Letter Sleeve Rated Rated
Features Series Features Endurance Image
Color Color Voltage Capacitance
+85oC
Lug/Snap-in -40~+85oC
LP White Black 10~450 47~82000
Terminal Type 2000Hrs
Standard
+105oC
General & Long Lug/Snap-in -40~+85oC
HP White Black 10~450 47~56000
Life Terminal Type 2000Hrs
Wide Temperature
+105oC
Lug/Snap-in -40~+85oC
KP White Black 10~450 56~56000
Terminal Type 3000Hrs
Long Life
AXIAL
Letter Sleeve Rated Rated
Features Series Features Endurance Image
Color Color Voltage Capacitance
-40~+85oC
General AS +85oC Standard White Purple 6.3~160 0.47~10000
1000Hrs
