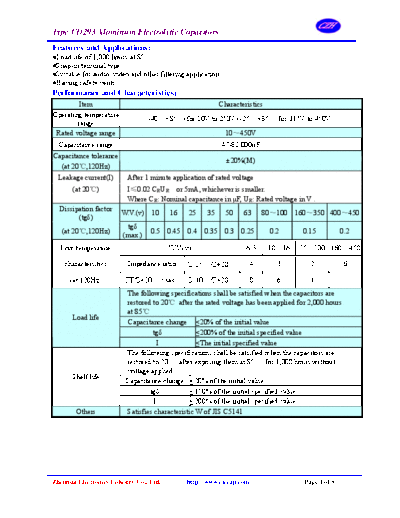

Image preview - the first page of the document
Elecap [snap-in] CD293 Series


>> Download Elecap [snap-in] CD293 Series documenatation <<

Text preview - extract from the document
Type CD293 Aluminum Electrolytic Capacitors
Features and Applications
Load life of 1,000 hours at 85.
Snap-in terminal type.
Suitable for audio, video and other filtering applications.
Having safety vents.
Performance and Characteristics
         Item                                                Characteristics
Operating temperature
                                 -40+85(for 10V to 250V) -25+85(for 315V to 450V)
        range
 Rated voltage range                                           10450V
  Capacitance range                                          47-82,000
