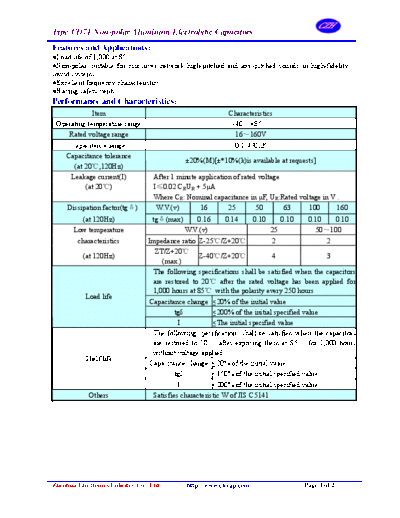

Image preview - the first page of the document



>> Download Elecap [radial thru-hole] CD71 Series documenatation <<

Text preview - extract from the document

Type CD71 Non-polar Aluminum Electrolytic Capacitors
Features and Applications
Load life of 1,000 at 85
Non-polar, suitable for crossover network high-pitched and low-pitched sounds in high-fidelity
sound systems.
Excellent frequency characteristics.
Having safety vents.
Performance and Characteristics
             Item                                          Characteristics
 Operating temperature range                                -40+85
    Rated voltage range                                      16160V
     capacitance range                                       0.1-470
