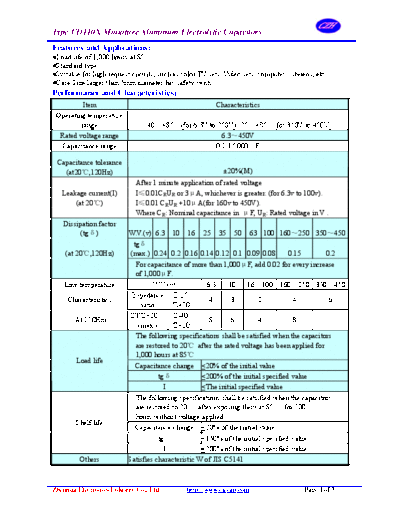

Image preview - the first page of the document



>> Download Elecap [radial thru-hole] CD110X Series documenatation <<

Text preview - extract from the document

Type CD110X Miniature Aluminum Electrolytic Capacitors
Features and Applications
Load life of 1,000 hours at 85.
Standard type.
Suitable for high-request circuits, such as color TV sets, Video sets, computers, stereos, etc.
Case Size larger than 5mm diameter has safety vents.
Performance and Characteristics
          Item                                          Characteristics
 Operating temperature
         range                  -40+85(for 6.3V to 250V) -25+85(for 350V to 450V)
  Rated voltage range                               6.3450V
  Capacitance range                               0.1-15,000F

 Capacitance tolerance
   (at20,120Hz)
