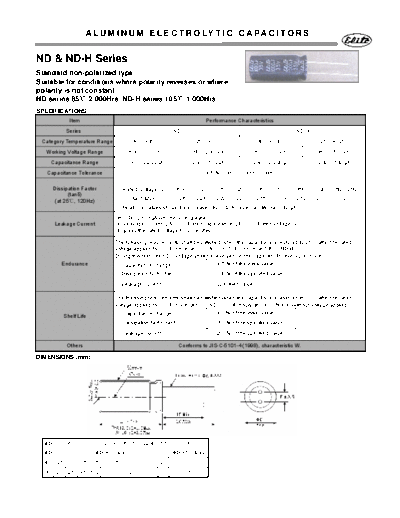

Image preview - the first page of the document
Elite [radial thru-hole] ND-H Series


>> Download Elite [radial thru-hole] ND-H Series documenatation <<

Text preview - extract from the document
                           A L U M I N U M E L E C T R O LY T I C C A PA C I T O R S


ND & ND-H Series
Standard non-polarized type.
Suitable for conditions where polarity reverses or where
polarity is not constant.
ND series 85 2,000Hrs, ND-H series 105 1,000Hrs.
SPECIFICATIONS
               Item                                                             Performance Characteristics
              Series                                         ND                                                        ND-H
 Category Temperature Range                -40 ~ +85                      -25 ~ +85                   -40 ~ +105               -25 ~ +105
  Working Voltage Range                   6.3 ~ 100 Vdc                160 ~ 250 Vdc                  6.3 ~ 100 Vdc           160 ~ 250 Vdc
       Capacitance Range                  0.47 ~ 2,200 F                 0.47 ~ 100 F                0.47 ~ 2,200 F           0.47 ~ 100 F
   Capacitance Tolerance
