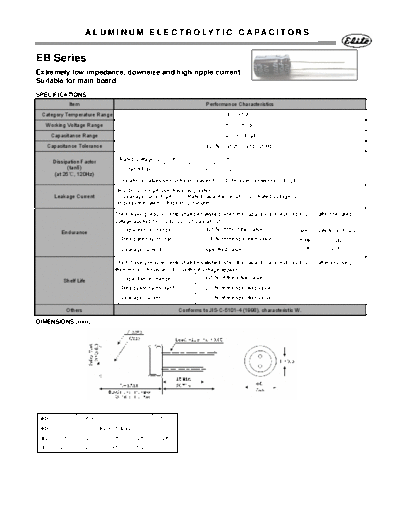

Image preview - the first page of the document
Elite [radial thru-hole] EB Series


>> Download Elite [radial thru-hole] EB Series documenatation <<

Text preview - extract from the document
                        A L U M I N U M E L E C T R O LY T I C C A PA C I T O R S


EB Series
Extremely low impedance, downsize and high ripple current.
Suitable for main board.
SPECIFICATIONS
                Item                                                           Performance Characteristics
 Category Temperature Range                                                           -40 ~ +105
  Working Voltage Range                                                                6.3 ~ 16Vdc
      Capacitance Range                                                               82 ~ 3,300 F
     Capacitance Tolerance
