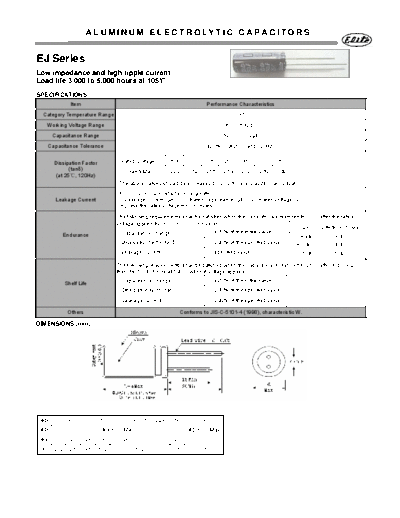

Image preview - the first page of the document
Elite [radial thru-hole] EJ Series


>> Download Elite [radial thru-hole] EJ Series documenatation <<

Text preview - extract from the document
                       A L U M I N U M E L E C T R O LY T I C C A PA C I T O R S


EJ Series
Low impedance and high ripple current.
Load life 3,000 to 5,000 hours at 105.
SPECIFICATIONS
               Item                                                         Performance Characteristics
 Category Temperature Range                                                           -55 ~ +105
     Working Voltage Range                                                            6.3 ~ 63Vdc
      Capacitance Range                                                              10 ~ 10,000 F
     Capacitance Tolerance
