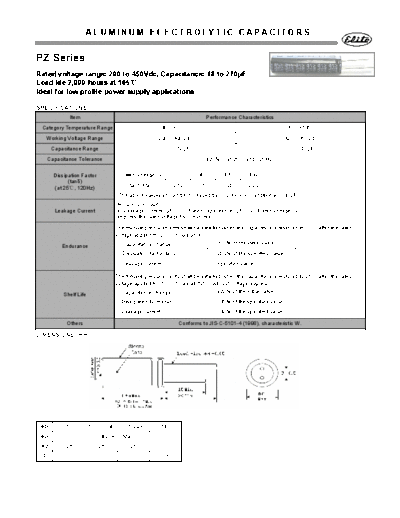

Image preview - the first page of the document



>> Download Elite [radial thru-hole] PZ Series documenatation <<

Text preview - extract from the document

                     A L U M I N U M E L E C T R O LY T I C C A PA C I T O R S


PZ Series
Rated voltage range: 200 to 450Vdc, Capacitance: 18 to 270F
Load life 2,000 hours at 105
Ideal for low profile power supply applications

SPECIFICATIONS
             Item                                                         Performance Characteristics
 Category Temperature Range                          -40 ~ +105                                             -25 ~ +105
     Working Voltage Range                           200 ~ 400Vdc                                           420 ~ 450Vdc
      Capacitance Range                               27 ~ 270 F                                             18 ~ 82 F
     Capacitance Tolerance
