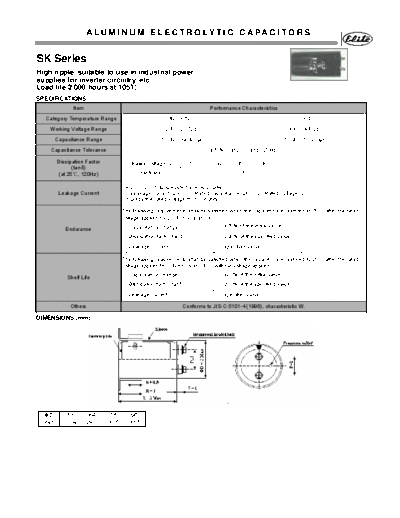

Image preview - the first page of the document



>> Download Elite [screw-terminal] SK Series documenatation <<

Text preview - extract from the document

                     A L U M I N U M E L E C T R O LY T I C C A PA C I T O R S


SK Series
High ripple, suitable to use in industrial power
supplies for inverter circuitry, etc.
Load life 2,000 hours at 105.
SPECIFICATIONS
              Item                                                      Performance Characteristics
  Category Temperature Range                          -40 ~ +105                                         -25 ~ +105
    Working Voltage Range                             200 ~ 250Vdc                                       350 ~ 400Vdc
        Capacitance Range                           1,500 ~ 39,000F                                     1,000 ~ 15,000F
    Capacitance Tolerance
