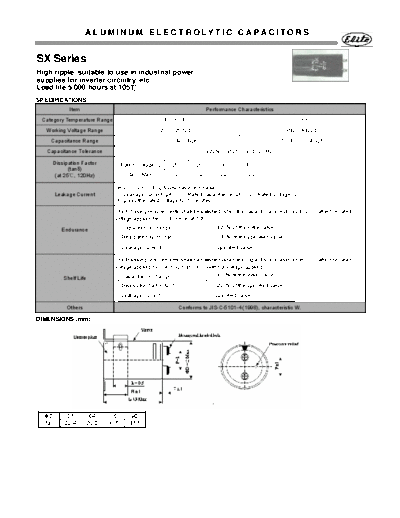

Image preview - the first page of the document
Elite [screw-terminal] SX Series


>> Download Elite [screw-terminal] SX Series documenatation <<

Text preview - extract from the document
                     A L U M I N U M E L E C T R O LY T I C C A PA C I T O R S


SX Series
High ripple, suitable to use in industrial power
supplies for inverter circuitry, etc.
Load life 5,000 hours at 105.
SPECIFICATIONS
             Item                                                            Performance Characteristics
 Category Temperature Range                             -40 ~ +105                                           -25 ~ +105
  Working Voltage Range                              200 ~ 250Vdc                                            350 ~ 400Vdc
    Capacitance Range                               1,500 ~ 39,000F                                        1,000 ~ 15,000F
   Capacitance Tolerance
