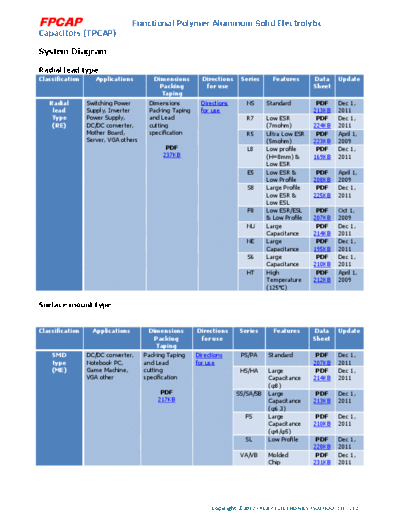

Image preview - the first page of the document
>> Download FPCAP Series Table documenatation <<
Text preview - extract from the document
Functional Polymer Aluminum Solid Electrolytic
Capacitors (FPCAP)
System Diagram
Radial lead type
Classification Applications Dimensions Directions Series Features Data Update
Packing for use Sheet
Taping
Radial Switching Power Dimensions Directions NS Standard PDF Dec 1,
lead Supply, Inverter Packing Taping for use 213KB 2011
Type Power Supply, and Lead R7 Low ESR PDF Dec 1,
(RE) DC/DC converter, cutting (7mohm) 224KB 2011
Mother Board, specification R5 Ultra Low ESR PDF April 1,
Server, VGA others (5mohm) 223KB 2009
PDF L8 Low profile PDF Dec 1,
237KB (H=8mm) & 169KB 2011
Low ESR
E5 Low ESR & PDF April 1,
Low Profile 208KB 2009
S8 Large Profile PDF Dec 1,
Low ESR & 225KB 2011
Low ESL
F8 Low ESR/ESL PDF Oct 1,
& Low Profile 207KB 2009
NU Large PDF Dec 1,
Capacitance 214KB 2011
NE Large PDF Dec 1,
Capacitance 195KB 2011
S6 Large PDF Dec 1,
Capacitance 210KB 2011
HT High PDF April 1,
Temperature 212KB 2009
(125)
Surface mount type
Classification Applications Dimensions Directions Series Features Data Update
Packing for use Sheet
Taping
SMD DC/DC converter, Packing Taping Directions PS/PA Standard PDF Dec 1,
type Notebook PC, and Lead for use 207KB 2011
(ME) Game Machine, cutting HS/HA Large PDF Dec 1,
VGA other specification Capacitance 214KB 2011
(8)
PDF SS/SA/SB Large PDF Dec 1,
217KB Capacitance 213KB 2011
(6.3)
FS Large PDF Dec 1,
Capacitance 210KB 2011
(4/5)
SL Low Profile PDF Dec 1,
228KB 2011
VA/VB Molded PDF Dec 1,
Chip 231KB 2011
