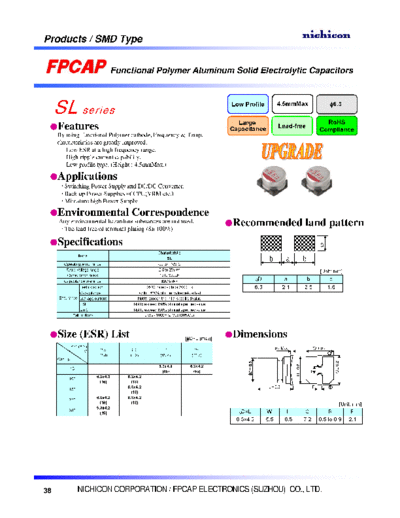

Image preview - the first page of the document



>> Download FPCAP [polymer SMD] Type ME - SL Series documenatation <<

Text preview - extract from the document

Products / SMD Type


                                    Functional Polymer Aluminum Solid Electrolytic Capacitors



     SL series                                                                             Low Profile                 4.5mmMax                               6.3

                                                                                             Large                                                        RoHS
     Features                                                                              Capacitance                 Lead-free
                                                                                                                                                        Compliance
     By using Functional Polymer cathode, Frequency & Temp.
     characteristics are greatly improved.
        Low ESR at a high frequency range.
        High ripple current capability.
        Low profile type. (Height : 4.5mmMax.)

     Applications
        Switching Power Supply and DC/DC Converter.
        Back up Power Supplies of CPU(VRM etc.)
        Miniature high Power Supply.

     Environmental Correspondence
     Any environmental hazardous substances are not used.
      The lead free of terminal plating (Sn 100%)
                                                                                           Recommended land pattern
     Specifications                                                                                                                                     c
                                                          Characteristic
                Items
                                                               SL                                                b          a               b
        Operating temp. range                             -55 to +105
