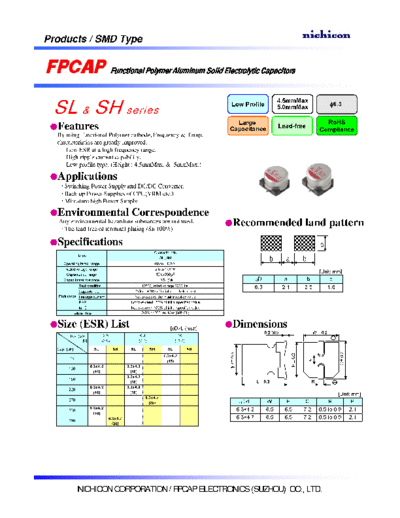

Image preview - the first page of the document



>> Download FPCAP [polymer SMD] Type ME - SL-SH Series documenatation <<

Text preview - extract from the document

Products / SMD Type


                                     Functional Polymer Aluminum Solid Electrolytic Capacitors



 SL & SH series
                                                                                                                               4.5mmMax
                                                                                                Low Profile                    5.0mmMax                           6.3

                                                                                                Large                                                         RoHS
  Features                                                                                    Capacitance                      Lead-free
                                                                                                                                                            Compliance
  By using Functional Polymer cathode, Frequency & Temp.
  characteristics are greatly improved.
     Low ESR at a high frequency range.
     High ripple current capability.
     Low profile type. (Height : 4.5mmMax. & 5mmMax.)

  Applications
     Switching Power Supply and DC/DC Converter.
     Back up Power Supplies of CPU(VRM etc.)
     Miniature high Power Supply.

  Environmental Correspondence
  Any environmental hazardous substances are not used.
   The lead free of terminal plating (Sn 100%)
                                                                                                 Recommended land pattern
  Specifications                                                                                                                                            c
                                                            Characteristic
              Items
                                                              SL, SH
                                                                                                                           b      a             b
     Operating temp. range                                  -55 to +105
