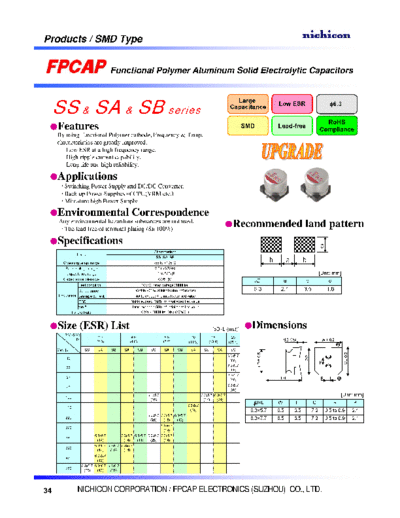

Image preview - the first page of the document
FPCAP [polymer SMD] Type ME - SS-SA-SB Series


>> Download FPCAP [polymer SMD] Type ME - SS-SA-SB Series documenatation <<

Text preview - extract from the document
Products / SMD Type


                                         Functional Polymer Aluminum Solid Electrolytic Capacitors



     SS & SA & SB series
                                                                                                                             Large
                                                                                                                           Capacitance
                                                                                                                                                        Low ESR                               6.3

                                                                                                                                                                                          RoHS
     Features                                                                                                                       SMD                 Lead-free
                                                                                                                                                                                        Compliance
     By using Functional Polymer cathode, Frequency & Temp.
     characteristics are greatly improved.
        Low ESR at a high frequency range.
        High ripple current capability.
        Long life and high reliability.

     Applications
         Switching Power Supply and DC/DC Converter.
         Back up Power Supplies of CPU(VRM etc.)
         Miniature high Power Supply.

     Environmental Correspondence
     Any environmental hazardous substances are not used.
      The lead free of terminal plating (Sn 100%)
                                                                                                                             Recommended land pattern
     Specifications                                                                                                                                                                     c
                                                                       Characteristic
                 Items
                                                                        SS, SA, SB
        Operating temp. range                                          -55 to +105
