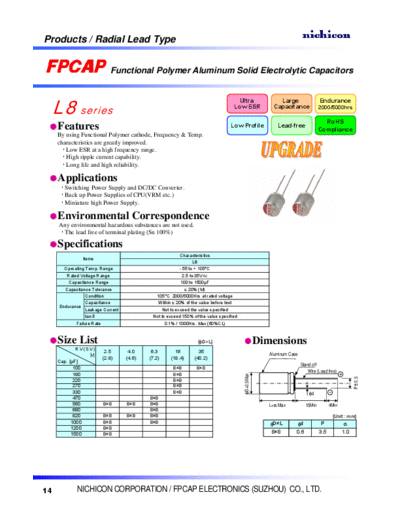

Image preview - the first page of the document



>> Download FPCAP [polymer thru-hole] Type RE - 8L Series documenatation <<

Text preview - extract from the document

Products / Radial Lead Type


                             Functional Polymer Aluminum Solid Electrolytic Capacitors



     L8 series
                                                                                     Ultra                Large                  Endurance
                                                                                    Low ESR             Capacitance              2000/5000hrs

                                                                                                                                   RoHS
     Features                                                                      Low Profile            Lead-free
                                                                                                                                 Compliance
     By using Functional Polymer cathode, Frequency & Temp.
     characteristics are greatly improved.
        Low ESR at a high frequency range.
        High ripple current capability.
        Long life and high reliability.

     Applications
        Switching Power Supply and DC/DC Converter.
        Back up Power Supplies of CPU(VRM etc.)
        Miniature high Power Supply.

     Environmental Correspondence
     Any environmental hazardous substances are not used.
      The lead free of terminal plating (Sn 100%)

     Specifications
                                                           Characteristics
                  Items
                                                                   L8
        Operating Temp. Range                              - 55 to + 105
