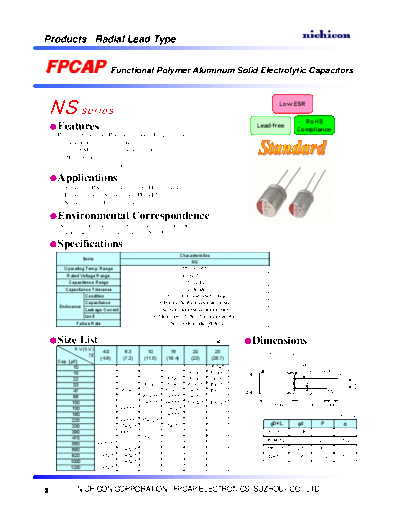

Image preview - the first page of the document
FPCAP [polymer thru-hole] Type RE - NS Series


>> Download FPCAP [polymer thru-hole] Type RE - NS Series documenatation <<

Text preview - extract from the document
Products / Radial Lead Type


                              Functional Polymer Aluminum Solid Electrolytic Capacitors



 NS series                                                                                                      Low ESR

                                                                                                                          RoHS
    Features                                                                                            Lead-free
                                                                                                                        Compliance
    By using Functional Polymer cathode, Frequency & Temp.
    characteristics are greatly improved.
       Low ESR at a high frequency range.
       High ripple current capability.
       Long life and high reliability.

    Applications
       Switching Power Supply and DC/DC Converter.
       Back up Power Supplies of CPU(VRM etc.)
       Miniature high Power Supply.

    Environmental Correspondence
    Any environmental hazardous substances are not used.
     The lead free of terminal plating (Sn 100%)

    Specifications
                                                               Characteristics
                 Items
                                                                     NS
      Operating Temp. Range                                    -55 to +105
