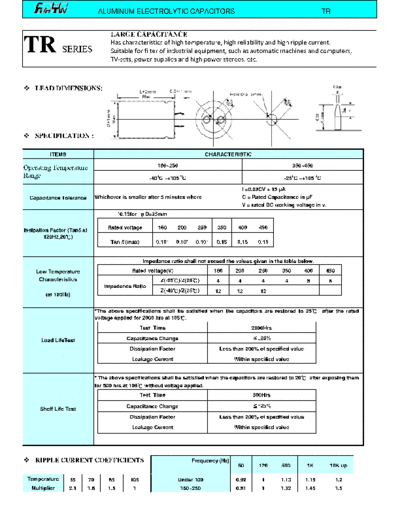

FuhYin [snap-in] TR series


>> Download FuhYin [snap-in] TR series documenatation <<

Text preview - extract from the document
                                  ALUMINUM ELECTROLYTIC CAPACITORS                                                                  TR


                                       LARGE CAPACITANCE

TR             SERIES
                                       Has characteristics of high temperature, high reliability and high ripple current.
                                       Suitable for filter of industrial equipment, such as automatic machines and computers,
                                       TV-sets, power supplies and high power stereos. etc.



 LEAD DIMENSIONS:




 SPECIFICATION :

          ITEMS                                                                  CHARACTERISTIC

Operating Temperature                                      160~250                                                      350~450
Range                                                   -400C ~+105 0C                                             -250C ~+105 0C

                                                                                                  I =0.03CV + 15
