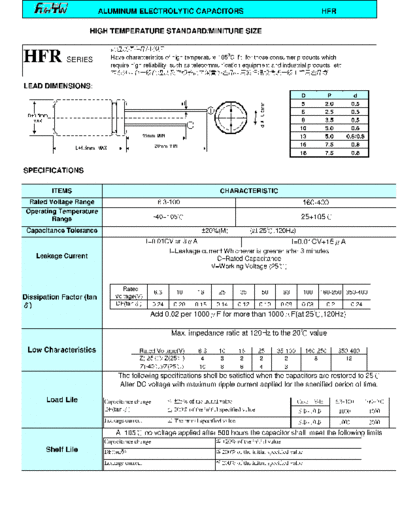

Image preview - the first page of the document



>> Download FuhYin [radial thru-hole] HFR series documenatation <<

Text preview - extract from the document

                          ALUMINUM ELECTROLYTIC CAPACITORS                                                             HFR

                      HIGH TEMPERATURE STANDARD/MINITURE SIZE

                             /
HFR          SERIES
                                                                           0
                             Have characteristics of high temperature 105 C, fit for those consumer products which
                             require high reliability, such as telecommunication equipment and industrial products, etc.


LEAD DIMENSIONS:
                                                                                                               D          P           d
                                                                                                               5         2.0         0.5
                                                                                                               6         2.5         0.5
                                                                                                               8         3.5         0.5
                                                                                                               10        5.0         0.6
                                                                                                               13        5.0       0.6/0.8
                                                                                                               16        7.5         0.8
                                                                                                               18        7.5         0.8


SPECIFICATIONS

         ITEMS                                                              CHARACTERISTIC
  Rated Voltage Range                            6.3-100                                                        160-400
 Operating Temperature
         Range                                  -40+105                                                        -25+105
 Capacitance Tolerance
