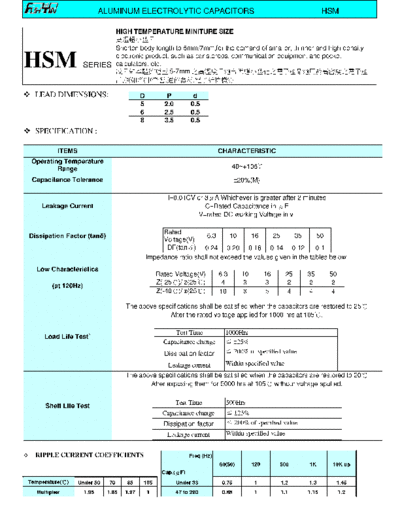

Image preview - the first page of the document



>> Download FuhYin [radial thru-hole] HSM series documenatation <<

Text preview - extract from the document

                               ALUMINUM ELECTROLYTIC CAPACITORS                                                         HSM

                                      HIGH TEMPERATURE MINITURE SIZE

                                      Shorten body length to 5mm/7mm,for the demand of smaller, thinner and high-density

HSM                   SERIES
                                      electronic product, such as car stereos, communication equipment and pocket
                                      calculators, etc.
                                       5-7mm
                                      ,;..

 LEAD DIMENSIONS:                               D          P           d
                                                5         2.0         0.5
                                                6         2.5         0.5
                                                8         3.5         0.5
 SPECIFICATION :

             ITEMS                                                               CHARACTERISTIC
    Operating Temperature
            Range                                                                      -40~+105

    Capacitance Tolerance
