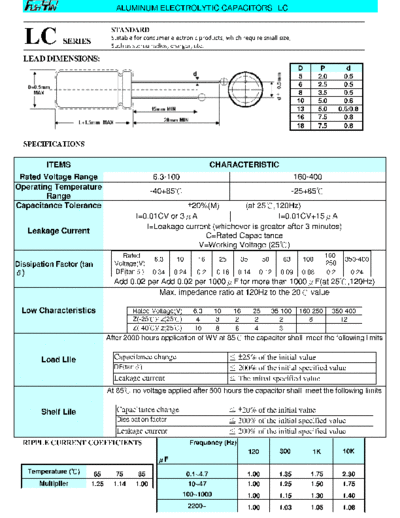

Image preview - the first page of the document



>> Download FuhYin [radial thru-hole] LC series documenatation <<

Text preview - extract from the document

                                  ALUMINUM ELECTROLYTIC CAPACITORS LC

                                STANDARD
  LC           SERIES           Suitable for consumer electronic products, which require small size,
                                Such as stereo radios, charger, etc.

  LEAD DIMENSIONS:
                                                                                                          D         P           d
                                                                                                           5       2.0         0.5
                                                                                                           6       2.5         0.5
                                                                                                           8       3.5         0.5
                                                                                                          10       5.0         0.6
                                                                                                          13       5.0       0.6/0.8
                                                                                                          16       7.5         0.8
                                                                                                          18       7.5         0.8

  SPECIFICATIONS

         ITEMS                                                         CHARACTERISTIC
 Rated Voltage Range                            6.3-100                                                   160-400
Operating Temperature
                                                -40+85                                                   -25+85
        Range
Capacitance Tolerance
