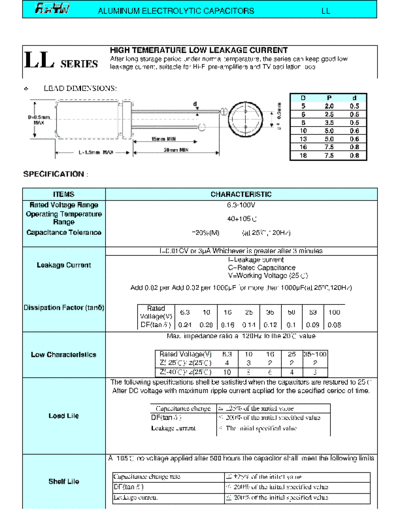

Image preview - the first page of the document



>> Download FuhYin [radial thru-hole] LL series documenatation <<

Text preview - extract from the document

                         ALUMINUM ELECTROLYTIC CAPACITORS                                                  LL




                           HIGH TEMERATURE LOW LEAKAGE CURRENT
LL SERIES                  After long storage period under normal temperature, the series can keep good low
                           leakage current, suitable for Hi-Fi pre-amplifiers and TV oscillation loop.


      LEAD DIMENSIONS:
                                                                                                 D          P       d
                                                                                                  5        2.0     0.5
                                                                                                  6        2.5     0.5
                                                                                                  8        3.5     0.5
                                                                                                 10        5.0     0.6
                                                                                                 13        5.0     0.6
                                                                                                 16        7.5     0.8
                                                                                                 18        7.5     0.8

SPECIFICATION :

         ITEMS                                                  CHARACTERISTIC
 Rated Voltage Range                                                 6.3-100V
Operating Temperature
        Range                                                       -40+105
Capacitance Tolerance
