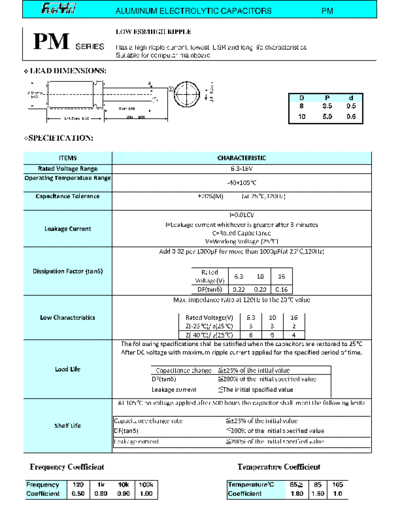

Image preview - the first page of the document



>> Download FuhYin [radial thru-hole] PM series documenatation <<

Text preview - extract from the document

                               ALUMINUM ELECTROLYTIC CAPACITORS                                           PM

                               LOW ESR/HIGH RIPPLE

  PM            SERIES         Has a high ripple current, lowest ESR and long life characteristics
                               Suitable for computer mainboard

 LEAD    DIMENSIONS:


                                                                                                  D        P           d
                                                                                                  8       3.5         0.5
                                                                                                  10      5.0         0.6


SPECIFICATION:


          ITEMS                                                     CHARACTERISTIC
    Rated Voltage Range                                                  6.3-16V
Operating Temperature Range
                                                                        -40+105
