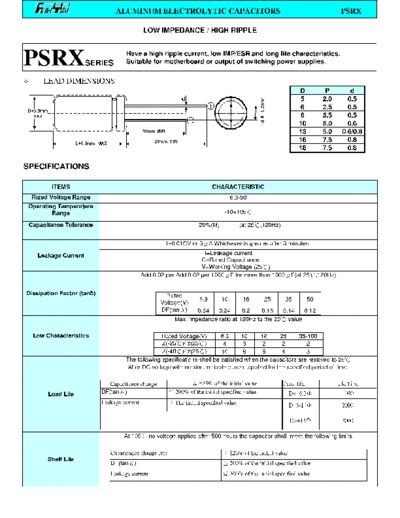

Image preview - the first page of the document



>> Download FuhYin [radial thru-hole] PSRX series documenatation <<

Text preview - extract from the document

                                ALUMINUM ELECTROLYTIC CAPACITORS                                                              PSRX

                                             LOW IMPEDANCE / HIGH RIPPLE



PSRX                   SERIES
                                    Have a high ripple current, low IMP/ESR and long life characteristics.
                                    Suitable for motherboard or output of switching power supplies.


       LEAD DIMENSIONS
                                                                                                             D          P         d
                                                                                                              5        2.0       0.5
                                                                                                              6        2.5       0.5
                                                                                                              8        3.5       0.5
                                                                                                             10        5.0       0.6
                                                                                                             13        5.0     0.6/0.8
                                                                                                             16        7.5       0.8
                                                                                                             18        7.5       0.8

SPECIFICATIONS

          ITEMS                                                           CHARACTERISTIC
   Rated Voltage Range                                                            6.3-50
 Operating Temperature
         Range                                                                 -40+105

   Capacitance Tolerance
