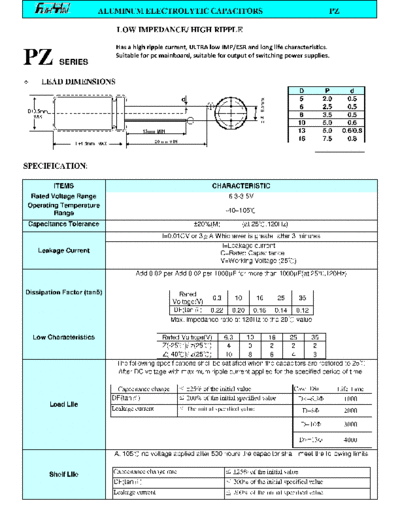

Image preview - the first page of the document



>> Download FuhYin [radial thru-hole] PZ series documenatation <<

Text preview - extract from the document

                         ALUMINUM ELECTROLYTIC CAPACITORS                                                     PZ

                             LOW IMPEDANCE/ HIGH RIPPLE

                            Has a high ripple current, ULTRA low IMP/ESR and long life characteristics.

PZ         SERIES
                            Suitable for pc mainboard, suitable for output of switching power supplies.


     LEAD DIMENSIONS
                                                                                                    D        P        d
                                                                                                     5      2.0      0.5
                                                                                                     6      2.5      0.5
                                                                                                     8      3.5      0.5
                                                                                                    10      5.0      0.6
                                                                                                    13      5.0    0.6/0.8
                                                                                                    16      7.5      0.8



SPECIFICATION:

         ITEMS                                                    CHARACTERISTIC
 Rated Voltage Range                                                    6.3-3.5V
Operating Temperature
        Range                                                          -40+105

 Capacitance Tolerance
